SETup ANd uSE of THE CoMbI HEATER

ASSEMbLy of pARTS

ball valve

Before installing the ball valve wrap Teflon tape around the nipple's thread to ensure
water proof insulation. When attaching and detaching the ball valve make sure that the
valve's handle is in closed position.
Abb 3

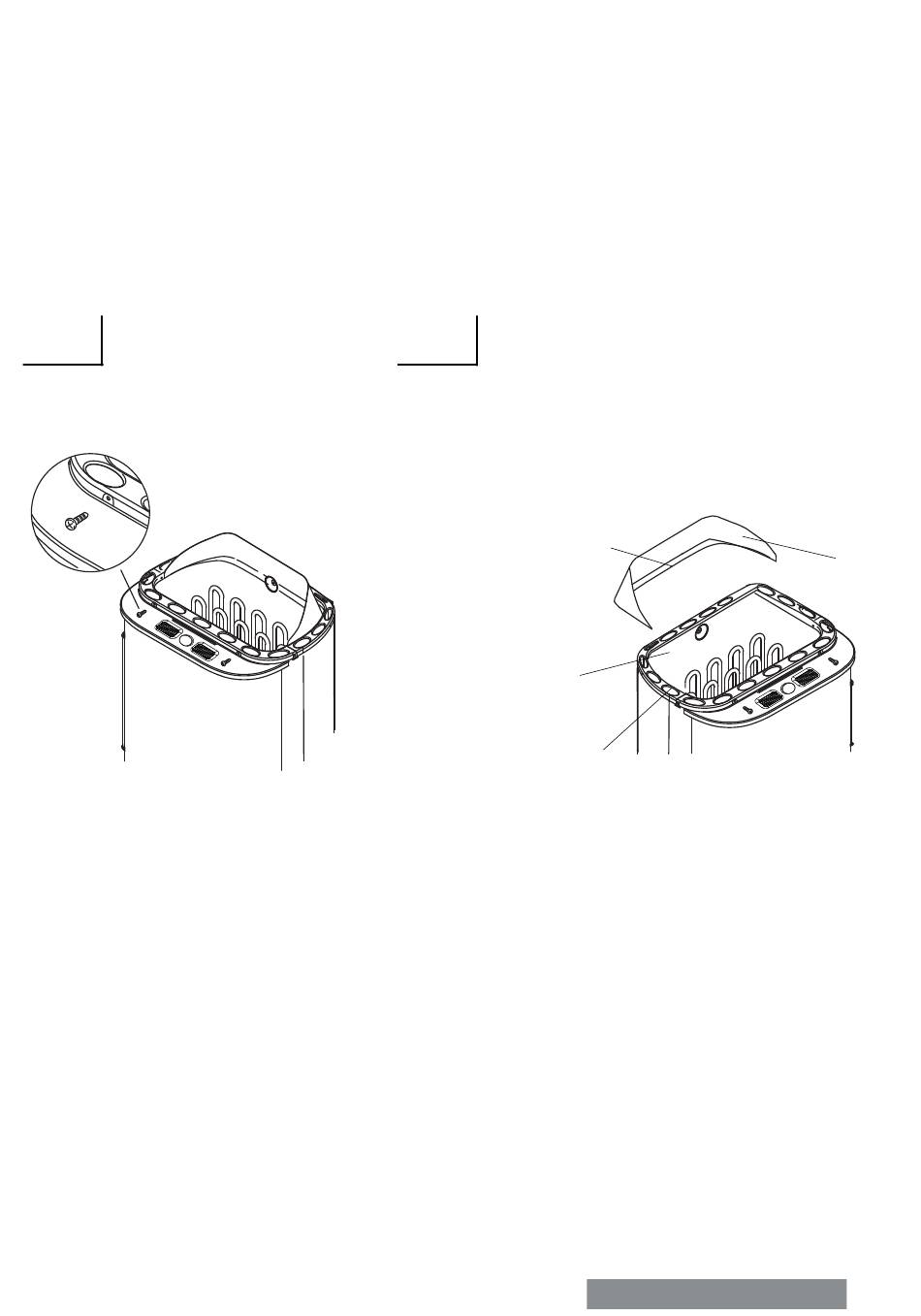

Verdampferbehälterabdeckung
Fig. 3 Steamer Cover
wICHTIG!
Der Reflektor muss installiert werden,
um Brandgefahr zu vermeiden.
Abb 4
Installation des Hitzeschildes
Fig. 4 Reflector Installation
Vergewissern Sie sich, dass das
Hitzeschild auf der Rückseite des
Ofenrahmens eingerastet ist.
Make sure that the heat reflector
shield is placed at the back
part of the heater frame.
Schrauben
Screw
Rahmen
Frame
NoTE!
Reflector must be installed
to prevent risk of fire.
DEUTSCH | ENGLISH
Hitzeschild
Reflector
