ANSCHLuSSPLAN

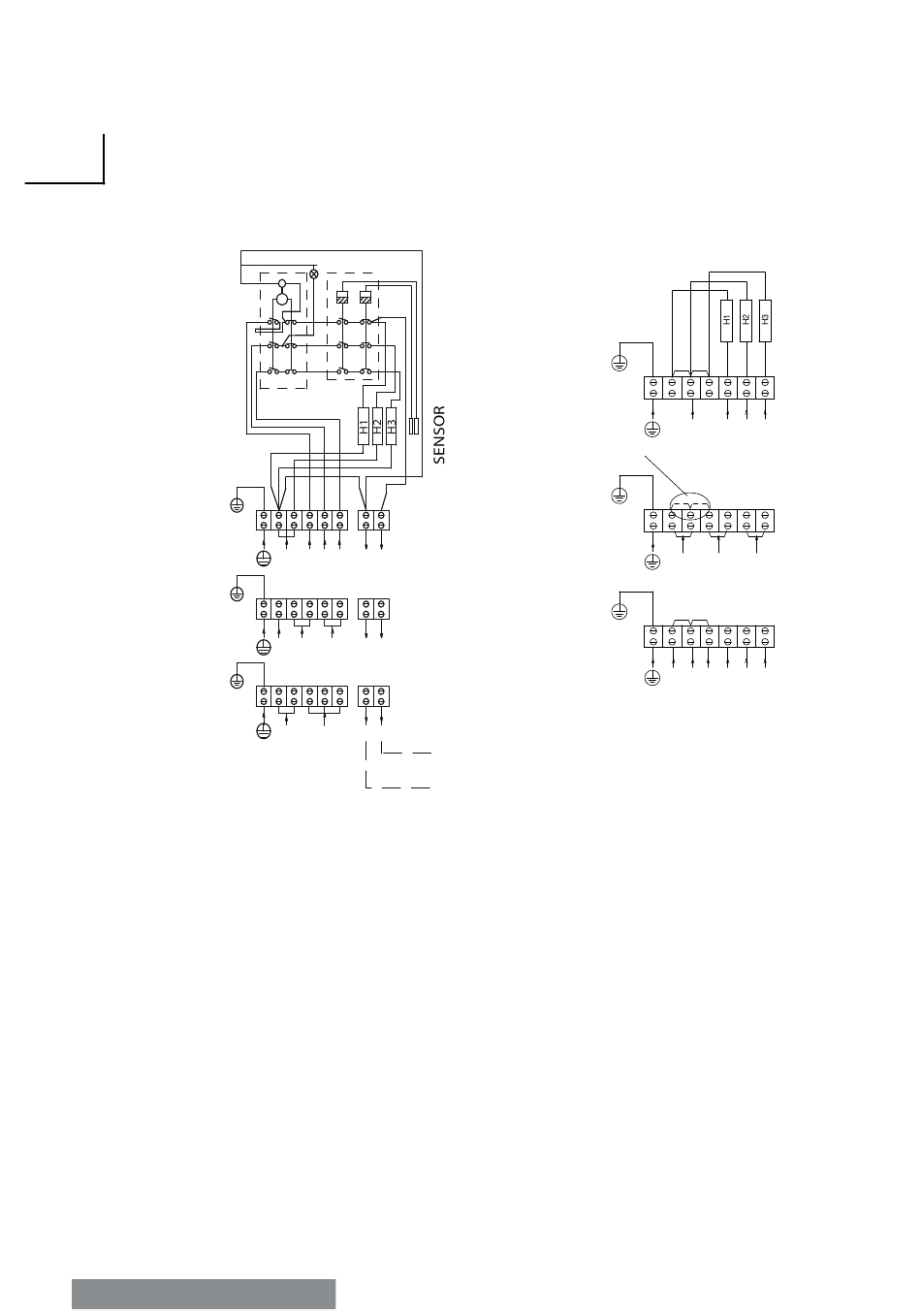

ELECTRICAL dIAgRAm

Abb 3
Fig. 3
380-415V 3N~
220-240V 3~
220-240V 1N~

REPoSITIoNINg of THE buILT-IN CoNTRoL uNIT

If you want to transfer the control unit to the other side (right or left):
1. Pull out the thermostat's knob (Fig. A) and open the screws, which are holding the
front cover.
2. Open the screws which are holding the control unit (Fig. B).
3. Pull outwards the control unit's upper edge and transfer the control unit to the
other side.
4. First mount the control unit's bottom-edge, noticing the small hooks there.
5. Then mount upper edge of the control unit very carefully and tighten the screws.
6. Make sure that the sensors are properly placed (Fig. C).
7. Put front cover and thermostat knob on their places.
10
DEUTSCH | ENGLISH
SCA-45NB
SCA-60NB
ZEITSCHALTER TERMOSTAT
TIMER THERMOSTAT
PL
M
B1
A1
a1 a
b b0
J1
A2
a1 a B2
b0
b
A3
B3
a1 a
b b0
50/60Hz
N L1L2 L3 N
50/60Hz
L1 L2 L3 N K (
50/60Hz
L1 N K (
N
3 PHASE / 1 PHASE
SCA80NB
SCA-90NB
Note:
Relocate Copper Jumpers
K ( 230V)
230V)
Steuerung der elektrischen
230V)
Hausheizung (wahlfreie
Verwendung)
Control of Electric Heating
in the Household
(usage is optional)
SCA-45NS
SCA-60NS
SCA-80NS
SCA-90NS
380-415V 3N~
50/60Hz
N U V W
220-240V 3~
50/60Hz
U V
220-240V 1N~
50/60Hz
N N N U V W
W
