Functional Description; Transport, Accessories And Storage; Transporting The Device; Accessories - HellermannTyton Autotool 2000 CPK Montageanleitung

3 2

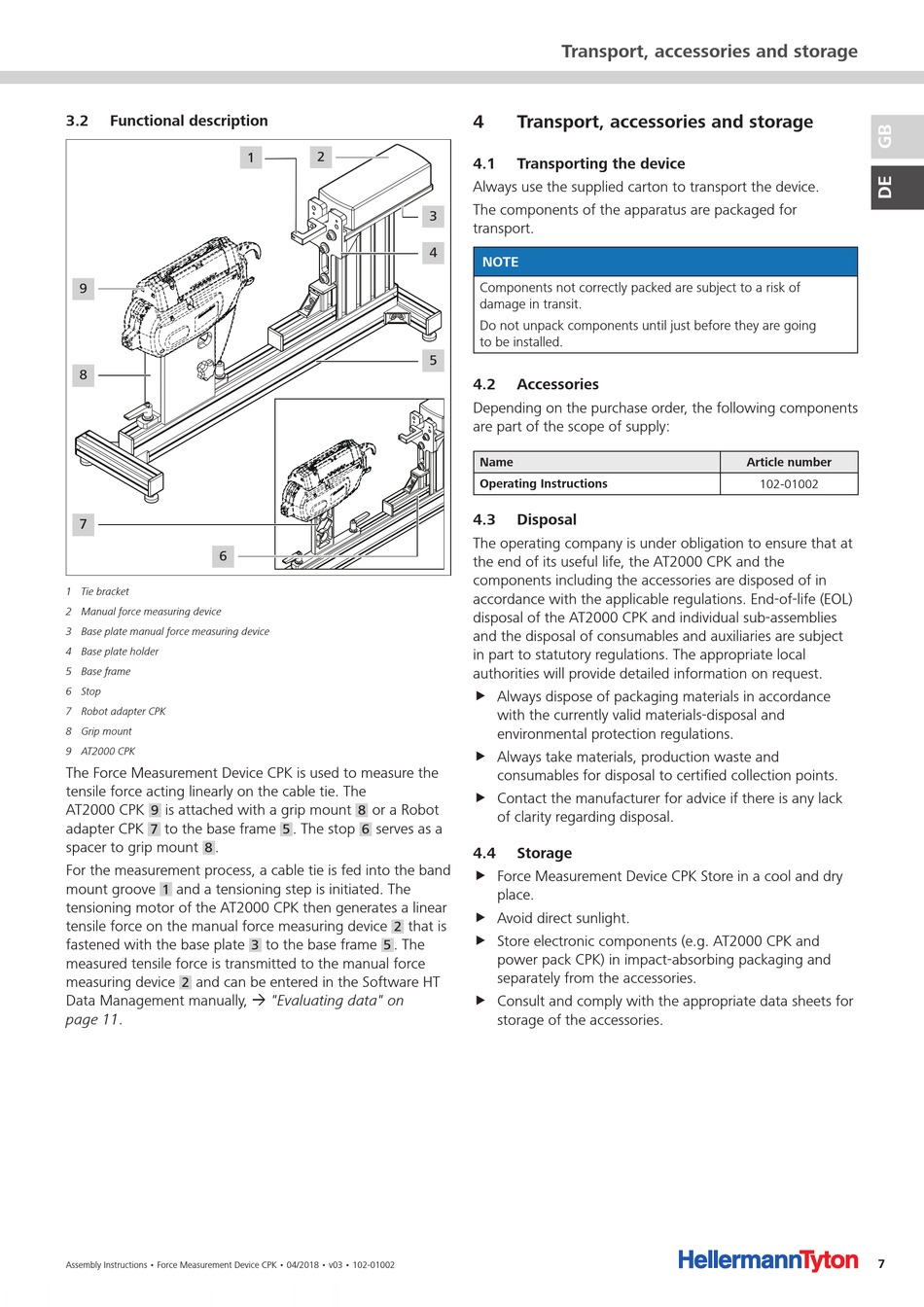

Functional description

9
8
7
6
1 Tie bracket
2 Manual force measuring device
3 Base plate manual force measuring device
4 Base plate holder
5 Base frame
6 Stop
7 Robot adapter CPK
8 Grip mount
9 AT2000 CPK
The Force Measurement Device CPK is used to measure the
tensile force acting linearly on the cable tie. The
AT2000 CPK is attached with a grip mount
9
adapter CPK to the base frame
7
spacer to grip mount .
8
For the measurement process, a cable tie is fed into the band
mount groove and a tensioning step is initiated. The
1
tensioning motor of the AT2000 CPK then generates a linear
tensile force on the manual force measuring device
fastened with the base plate
measured tensile force is transmitted to the manual force
measuring device and can be entered in the Software HT
2
Data Management manually, à "Evaluating data" on
page 11.
Assembly Instructions • Force Measurement Device CPK • 04/2018 • v03 • 102-01002
2
1
or a Robot
8
. The stop serves as a
5 6
that is
2
to the base frame . The
3 5

Transport, accessories and storage

4 Transport, accessories and storage
4 1

Transporting the device

Always use the supplied carton to transport the device.
The components of the apparatus are packaged for
3
transport.
4
NOTE
Components not correctly packed are subject to a risk of
damage in transit.
Do not unpack components until just before they are going
to be installed.
5
4 2

Accessories

Depending on the purchase order, the following components
are part of the scope of supply:
Name
Operating Instructions
4 3

Disposal

The operating company is under obligation to ensure that at
the end of its useful life, the AT2000 CPK and the
components including the accessories are disposed of in
accordance with the applicable regulations. End-of-life (EOL)
disposal of the AT2000 CPK and individual sub-assemblies
and the disposal of consumables and auxiliaries are subject
in part to statutory regulations. The appropriate local
authorities will provide detailed information on request.
f Always dispose of packaging materials in accordance
with the currently valid materials-disposal and
environmental protection regulations.
f Always take materials, production waste and
consumables for disposal to certified collection points.
f Contact the manufacturer for advice if there is any lack
of clarity regarding disposal.
4 4

Storage

f Force Measurement Device CPK Store in a cool and dry
place.
f Avoid direct sunlight.
f Store electronic components (e.g. AT2000 CPK and
power pack CPK) in impact-absorbing packaging and
separately from the accessories.
f Consult and comply with the appropriate data sheets for
storage of the accessories.
Article number
102-01002
7
