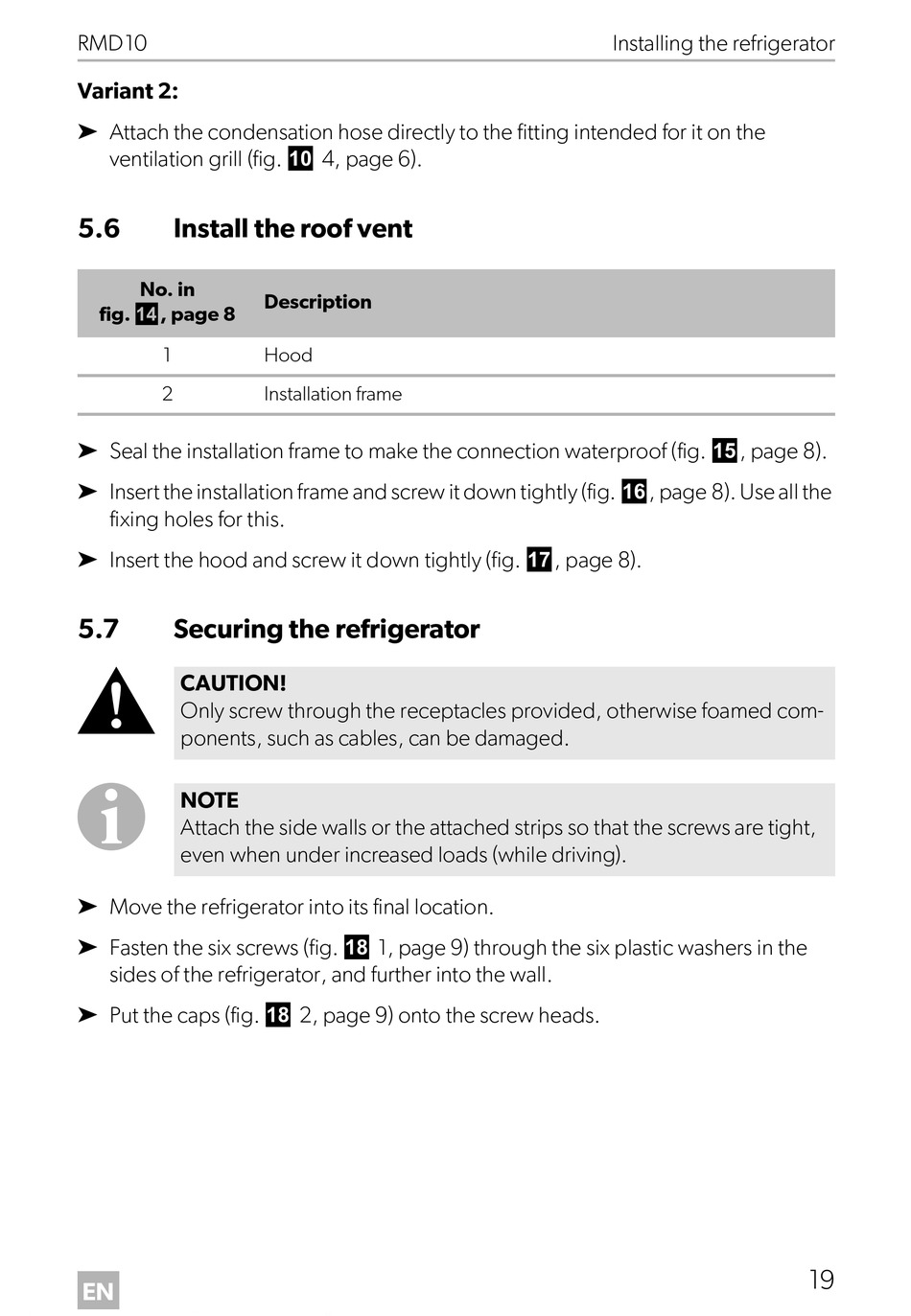

RMD10
Variant 2:
➤ Attach the condensation hose directly to the fitting intended for it on the
ventilation grill (fig. 0 4, page 6).
5.6 Install the roof vent
No. in
fig. d, page 8
1
2
➤ Seal the installation frame to make the connection waterproof (fig. e, page 8).
➤ Insert the installation frame and screw it down tightly (fig. f, page 8). Use all the
fixing holes for this.
➤ Insert the hood and screw it down tightly (fig. g, page 8).
5.7

Securing the refrigerator

!
CAUTION!
Only screw through the receptacles provided, otherwise foamed com-
ponents, such as cables, can be damaged.
I
NOTE
Attach the side walls or the attached strips so that the screws are tight,
even when under increased loads (while driving).
➤ Move the refrigerator into its final location.
➤ Fasten the six screws (fig. h 1, page 9) through the six plastic washers in the
sides of the refrigerator, and further into the wall.
➤ Put the caps (fig. h 2, page 9) onto the screw heads.
EN
Description
Hood
Installation frame
Installing the refrigerator
19
