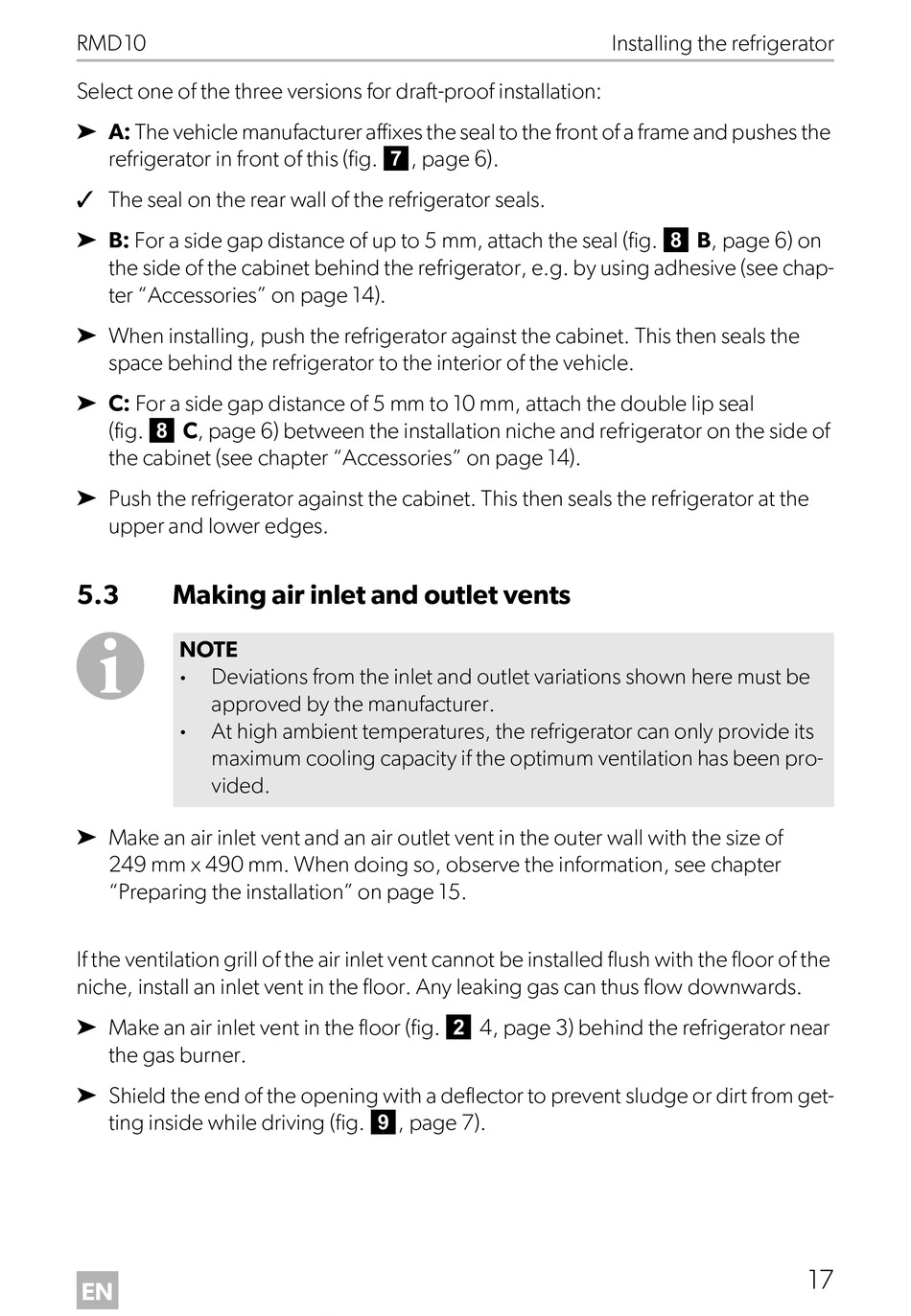

RMD10
Select one of the three versions for draft-proof installation:
➤ A: The vehicle manufacturer affixes the seal to the front of a frame and pushes the
refrigerator in front of this (fig. 7, page 6).
✓ The seal on the rear wall of the refrigerator seals.
➤ B: For a side gap distance of up to 5 mm, attach the seal (fig. 8 B, page 6) on
the side of the cabinet behind the refrigerator, e.g. by using adhesive (see chap-
ter "Accessories" on page 14).
➤ When installing, push the refrigerator against the cabinet. This then seals the
space behind the refrigerator to the interior of the vehicle.
➤ C: For a side gap distance of 5 mm to 10 mm, attach the double lip seal
(fig. 8 C, page 6) between the installation niche and refrigerator on the side of
the cabinet (see chapter "Accessories" on page 14).
➤ Push the refrigerator against the cabinet. This then seals the refrigerator at the
upper and lower edges.
5.3 Making air inlet and outlet vents
I
NOTE
•
Deviations from the inlet and outlet variations shown here must be
approved by the manufacturer.
•
At high ambient temperatures, the refrigerator can only provide its
maximum cooling capacity if the optimum ventilation has been pro-
vided.
➤ Make an air inlet vent and an air outlet vent in the outer wall with the size of
249 mm x 490 mm. When doing so, observe the information, see chapter
"Preparing the installation" on page 15.
If the ventilation grill of the air inlet vent cannot be installed flush with the floor of the
niche, install an inlet vent in the floor. Any leaking gas can thus flow downwards.
➤ Make an air inlet vent in the floor (fig. 2 4, page 3) behind the refrigerator near
the gas burner.
➤ Shield the end of the opening with a deflector to prevent sludge or dirt from get-
ting inside while driving (fig. 9, page 7).
EN
Installing the refrigerator
17
