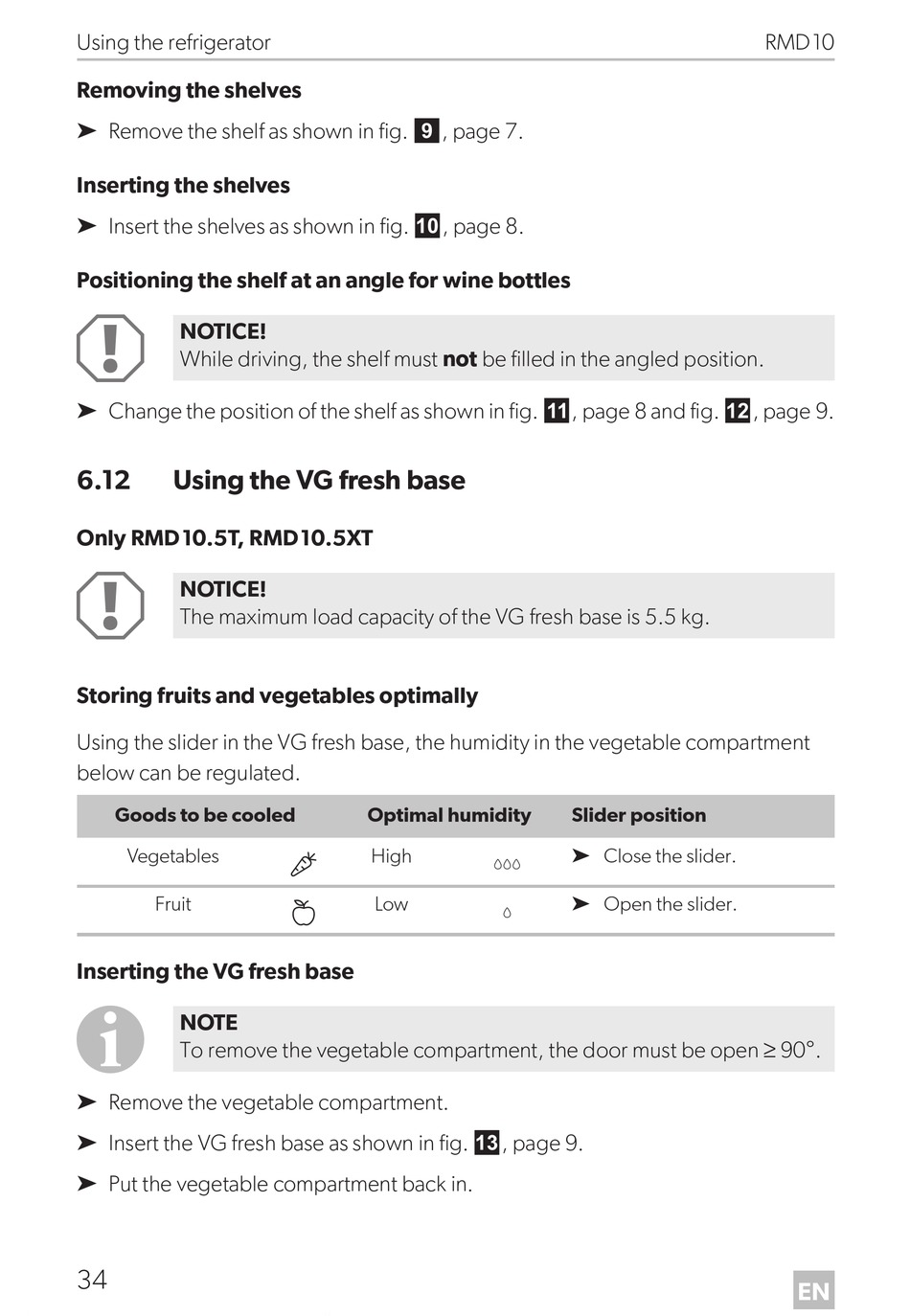

Using the refrigerator
Removing the shelves
➤ Remove the shelf as shown in fig. 9, page 7.
Inserting the shelves
➤ Insert the shelves as shown in fig. 0, page 8.
Positioning the shelf at an angle for wine bottles
A
NOTICE!
While driving, the shelf must not be filled in the angled position.
➤ Change the position of the shelf as shown in fig. a, page 8 and fig. b, page 9.
6.12 Using the VG fresh base
Only RMD10.5T, RMD10.5XT
A
NOTICE!
The maximum load capacity of the VG fresh base is 5.5 kg.
Storing fruits and vegetables optimally
Using the slider in the VG fresh base, the humidity in the vegetable compartment
below can be regulated.
Goods to be cooled
Vegetables
Fruit
Inserting the VG fresh base
I
NOTE
To remove the vegetable compartment, the door must be open ≥ 90°.
➤ Remove the vegetable compartment.
➤ Insert the VG fresh base as shown in fig. c, page 9.
➤ Put the vegetable compartment back in.
34
Optimal humidity
High
Low
Slider position
➤ Close the slider.
➤ Open the slider.
