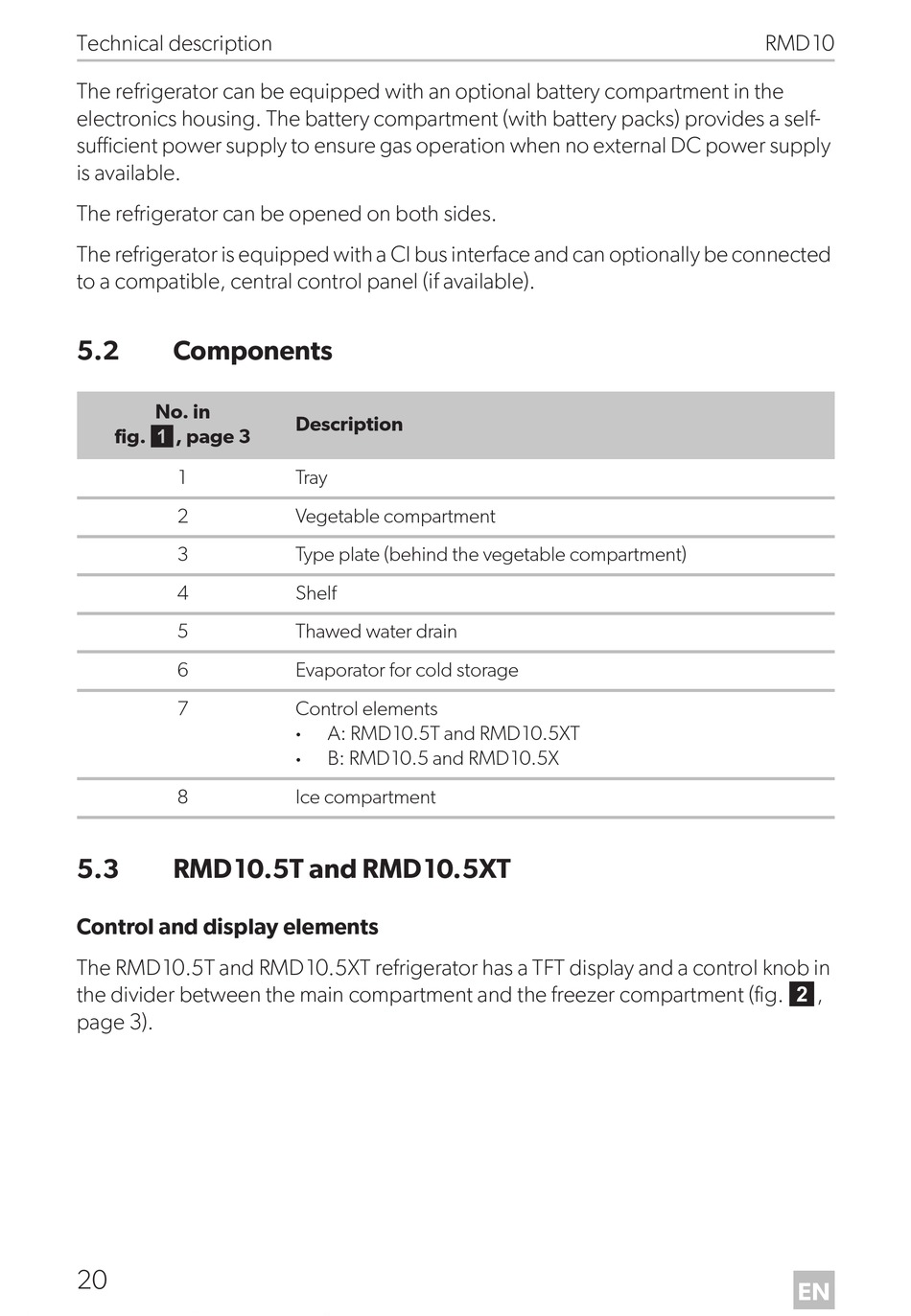

Technical description
The refrigerator can be equipped with an optional battery compartment in the
electronics housing. The battery compartment (with battery packs) provides a self-
sufficient power supply to ensure gas operation when no external DC power supply
is available.
The refrigerator can be opened on both sides.
The refrigerator is equipped with a CI bus interface and can optionally be connected
to a compatible, central control panel (if available).
5.2 Components
No. in
fig. 1, page 3
1
2
3
4
5
6
7
8
5.3 RMD10.5T and RMD10.5XT
Control and display elements
The RMD10.5T and RMD10.5XT refrigerator has a TFT display and a control knob in
the divider between the main compartment and the freezer compartment (fig. 2,
page 3).
20
Description
Tray
Vegetable compartment
Type plate (behind the vegetable compartment)
Shelf
Thawed water drain
Evaporator for cold storage
Control elements
A: RMD10.5T and RMD10.5XT
B: RMD10.5 and RMD10.5X
Ice compartment
RMD10
EN
