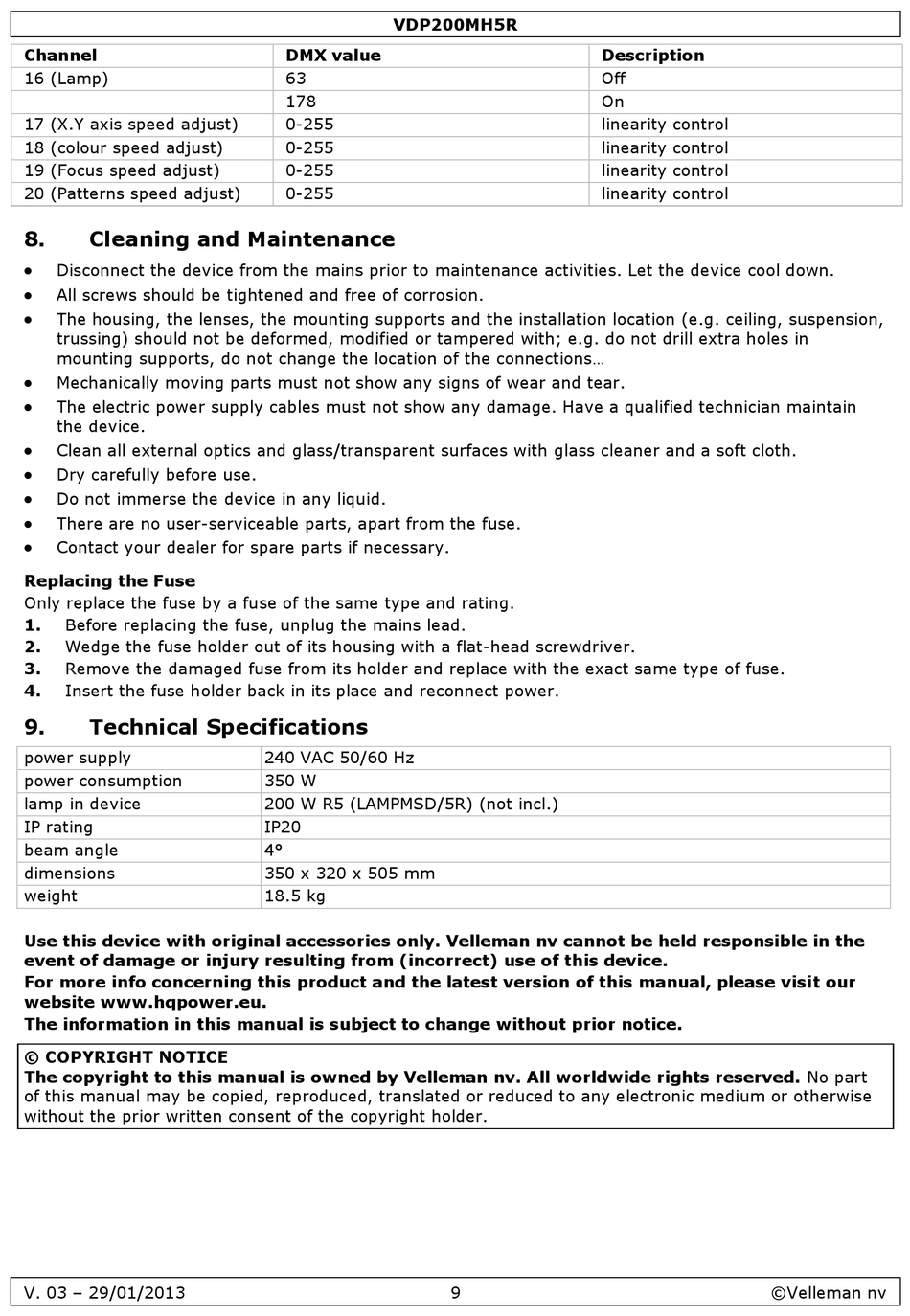

Cleaning And Maintenance; Technical Specifications - HQ Power VDP200MH5R Bedienungsanleitung

Channel
16 (Lamp)
17 (X.Y axis speed adjust)
18 (colour speed adjust)
19 (Focus speed adjust)
20 (Patterns speed adjust)
8.

Cleaning and Maintenance


Disconnect the device from the mains prior to maintenance activities. Let the device cool down.

All screws should be tightened and free of corrosion.

The housing, the lenses, the mounting supports and the installation location (e.g. ceiling, suspension,
trussing) should not be deformed, modified or tampered with; e.g. do not drill extra holes in
mounting supports, do not change the location of the connections...

Mechanically moving parts must not show any signs of wear and tear.

The electric power supply cables must not show any damage. Have a qualified technician maintain
the device.

Clean all external optics and glass/transparent surfaces with glass cleaner and a soft cloth.

Dry carefully before use.

Do not immerse the device in any liquid.

There are no user-serviceable parts, apart from the fuse.

Contact your dealer for spare parts if necessary.
Replacing the Fuse
Only replace the fuse by a fuse of the same type and rating.
1. Before replacing the fuse, unplug the mains lead.
2. Wedge the fuse holder out of its housing with a flat-head screwdriver.
3. Remove the damaged fuse from its holder and replace with the exact same type of fuse.
4. Insert the fuse holder back in its place and reconnect power.
9.

Technical Specifications

power supply
power consumption
lamp in device
IP rating
beam angle
dimensions
weight
Use this device with original accessories only. Velleman nv cannot be held responsible in the
event of damage or injury resulting from (incorrect) use of this device.
For more info concerning this product and the latest version of this manual, please visit our
website www.hqpower.eu.
The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part
of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise
without the prior written consent of the copyright holder.
V. 03 – 29/01/2013
VDP200MH5R
DMX value
63
178
0-255
0-255
0-255
0-255
240 VAC 50/60 Hz
350 W
200 W R5 (LAMPMSD/5R) (not incl.)
IP20
4°
350 x 320 x 505 mm
18.5 kg
Description
Off
On
linearity control
linearity control
linearity control
linearity control
9 ©Velleman nv
