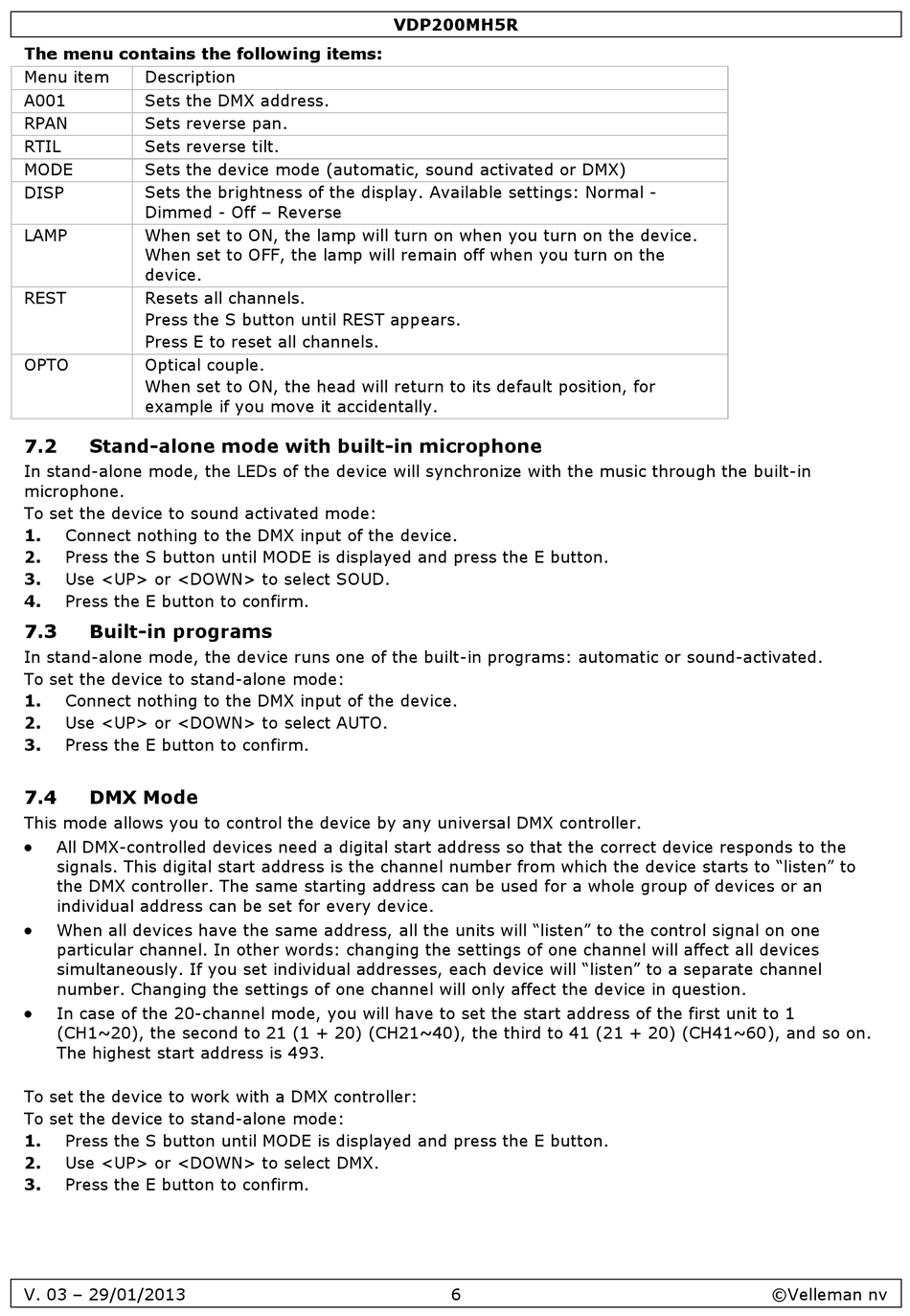

The menu contains the following items:
Menu item Description
A001 Sets the DMX address.
RPAN Sets reverse pan.
RTIL Sets reverse tilt.
MODE Sets the device mode (automatic, sound activated or DMX)
DISP Sets the brightness of the display. Available settings: Normal -
Dimmed - Off – Reverse
LAMP When set to ON, the lamp will turn on when you turn on the device.
When set to OFF, the lamp will remain off when you turn on the
device.
REST Resets all channels.
Press the S button until REST appears.
Press E to reset all channels.
OPTO Optical couple.
When set to ON, the head will return to its default position, for
example if you move it accidentally.
7.2 Stand-alone mode with built-in microphone
In stand-alone mode, the LEDs of the device will synchronize with the music through the built-in
microphone.
To set the device to sound activated mode:
1. Connect nothing to the DMX input of the device.
2. Press the S button until MODE is displayed and press the E button.
3. Use <UP> or <DOWN> to select SOUD.
4. Press the E button to confirm.
7.3 Built-in programs
In stand-alone mode, the device runs one of the built-in programs: automatic or sound-activated.
To set the device to stand-alone mode:
1. Connect nothing to the DMX input of the device.
2. Use <UP> or <DOWN> to select AUTO.
3. Press the E button to confirm.
7.4

DMX Mode

This mode allows you to control the device by any universal DMX controller.

All DMX-controlled devices need a digital start address so that the correct device responds to the
signals. This digital start address is the channel number from which the device starts to "listen" to
the DMX controller. The same starting address can be used for a whole group of devices or an
individual address can be set for every device.

When all devices have the same address, all the units will "listen" to the control signal on one
particular channel. In other words: changing the settings of one channel will affect all devices
simultaneously. If you set individual addresses, each device will "listen" to a separate channel
number. Changing the settings of one channel will only affect the device in question.

In case of the 20-channel mode, you will have to set the start address of the first unit to 1
(CH1~20), the second to 21 (1 + 20) (CH21~40), the third to 41 (21 + 20) (CH41~60), and so on.
The highest start address is 493.
To set the device to work with a DMX controller:
To set the device to stand-alone mode:
1. Press the S button until MODE is displayed and press the E button.
2. Use <UP> or <DOWN> to select DMX.
3. Press the E button to confirm.
