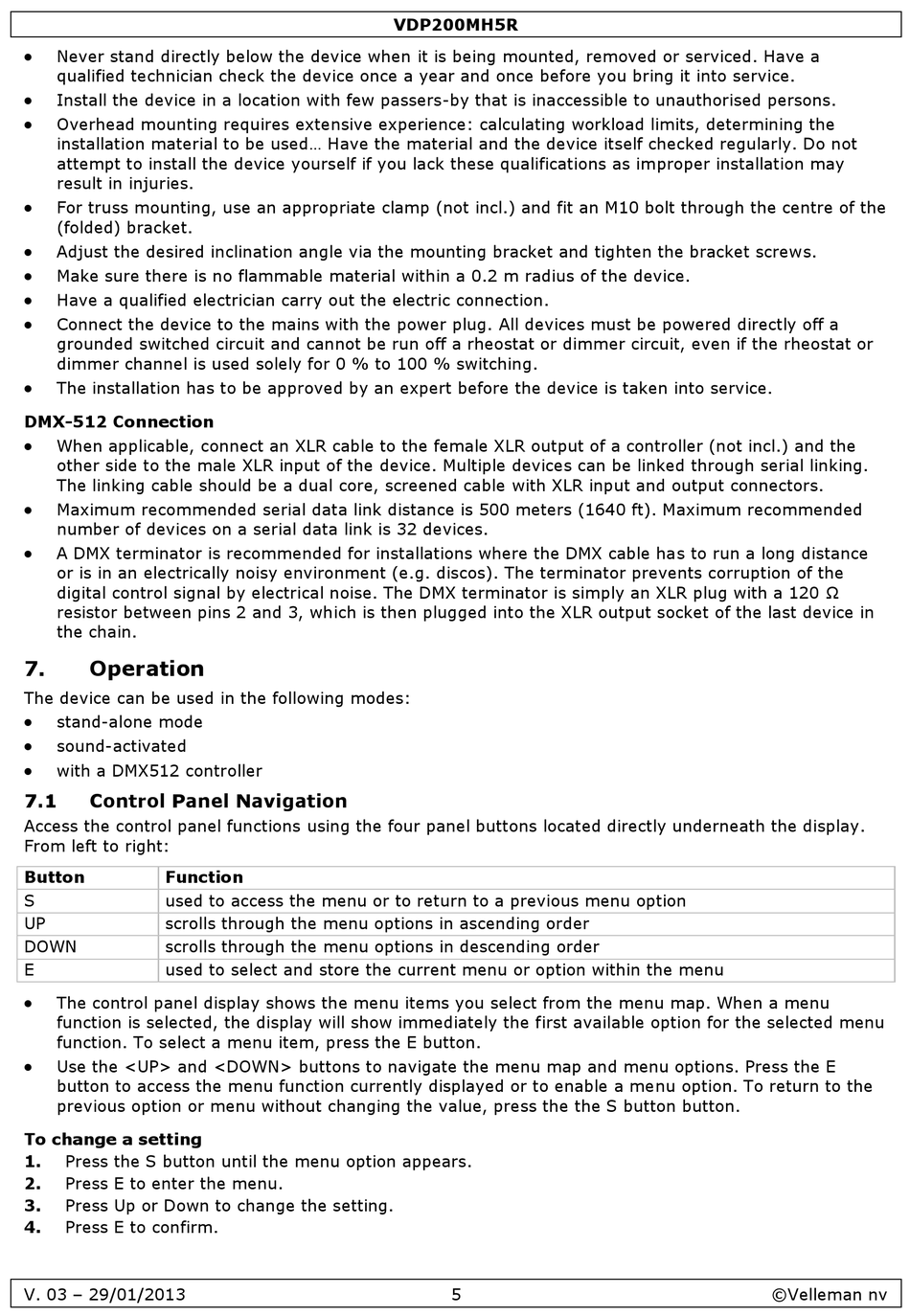

Never stand directly below the device when it is being mounted, removed or serviced. Have a
qualified technician check the device once a year and once before you bring it into service.

Install the device in a location with few passers-by that is inaccessible to unauthorised persons.

Overhead mounting requires extensive experience: calculating workload limits, determining the
installation material to be used... Have the material and the device itself checked regularly. Do not
attempt to install the device yourself if you lack these qualifications as improper installation may
result in injuries.

For truss mounting, use an appropriate clamp (not incl.) and fit an M10 bolt through the centre of the
(folded) bracket.

Adjust the desired inclination angle via the mounting bracket and tighten the bracket screws.

Make sure there is no flammable material within a 0.2 m radius of the device.

Have a qualified electrician carry out the electric connection.

Connect the device to the mains with the power plug. All devices must be powered directly off a
grounded switched circuit and cannot be run off a rheostat or dimmer circuit, even if the rheostat or
dimmer channel is used solely for 0 % to 100 % switching.

The installation has to be approved by an expert before the device is taken into service.
DMX-512 Connection

When applicable, connect an XLR cable to the female XLR output of a controller (not incl.) and the
other side to the male XLR input of the device. Multiple devices can be linked through serial linking.
The linking cable should be a dual core, screened cable with XLR input and output connectors.

Maximum recommended serial data link distance is 500 meters (1640 ft). Maximum recommended
number of devices on a serial data link is 32 devices.

A DMX terminator is recommended for installations where the DMX cable has to run a long distance
or is in an electrically noisy environment (e.g. discos). The terminator prevents corruption of the
digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 Ω
resistor between pins 2 and 3, which is then plugged into the XLR output socket of the last device in
the chain.
7.

Operation

The device can be used in the following modes:

stand-alone mode

sound-activated

with a DMX512 controller
7.1 Control Panel Navigation
Access the control panel functions using the four panel buttons located directly underneath the display.
From left to right:
Button Function
S used to access the menu or to return to a previous menu option
UP scrolls through the menu options in ascending order
DOWN scrolls through the menu options in descending order
E used to select and store the current menu or option within the menu

The control panel display shows the menu items you select from the menu map. When a menu
function is selected, the display will show immediately the first available option for the selected menu
function. To select a menu item, press the E button.

Use the <UP> and <DOWN> buttons to navigate the menu map and menu options. Press the E
button to access the menu function currently displayed or to enable a menu option. To return to the
previous option or menu without changing the value, press the the S button button.
To change a setting
1. Press the S button until the menu option appears.
2. Press E to enter the menu.
3. Press Up or Down to change the setting.
4. Press E to confirm.
V. 03 – 29/01/2013
VDP200MH5R
5 ©Velleman nv
