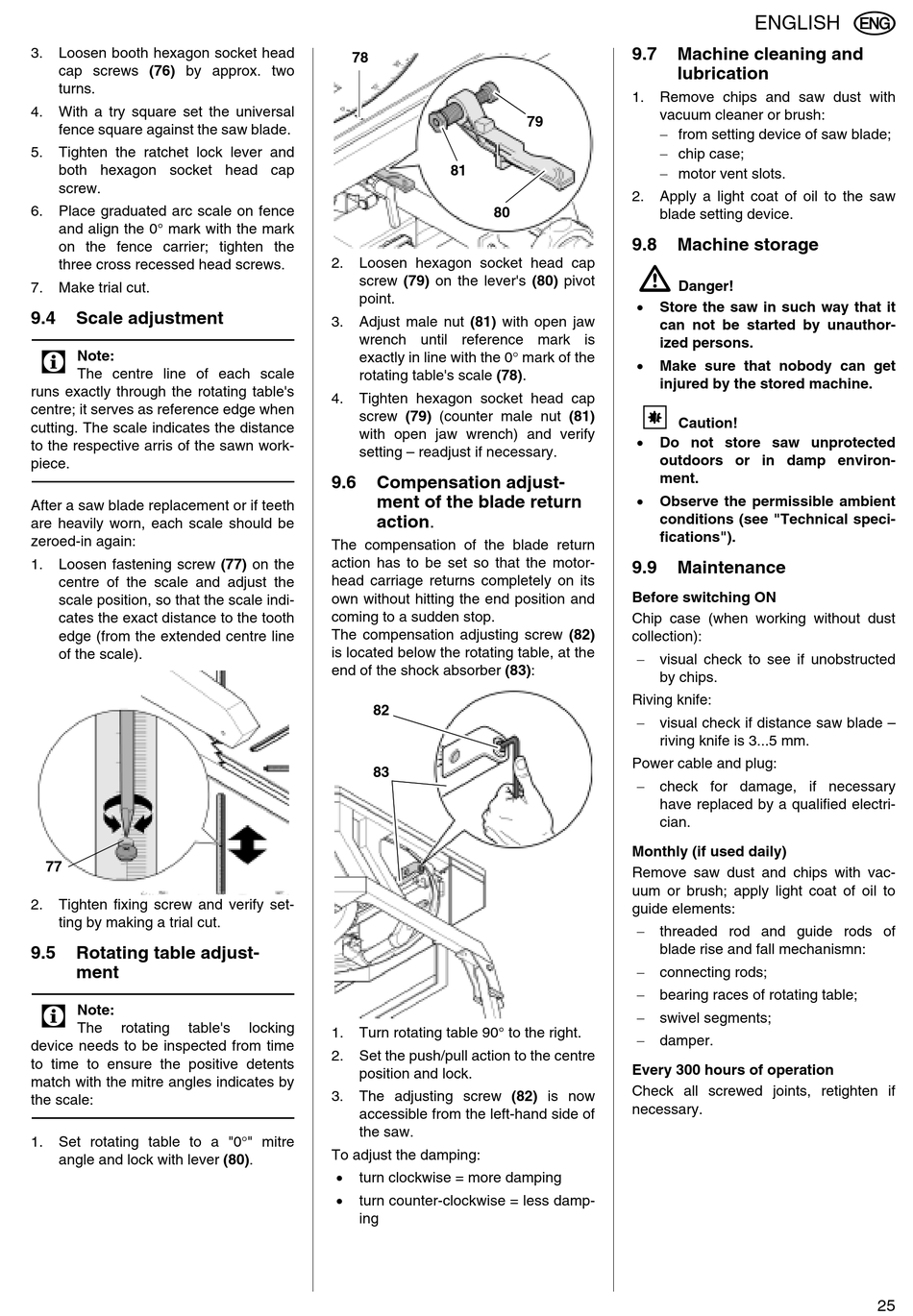

3. Loosen booth hexagon socket head
cap screws (76) by approx. two
turns.
4. With a try square set the universal
fence square against the saw blade.
5. Tighten the ratchet lock lever and
both hexagon socket head cap
screw.
6. Place graduated arc scale on fence
and align the 0° mark with the mark
on the fence carrier; tighten the
three cross recessed head screws.
7. Make trial cut.
9.4

Scale adjustment

3
Note:
The centre line of each scale
runs exactly through the rotating table's
centre; it serves as reference edge when
cutting. The scale indicates the distance
to the respective arris of the sawn work-
piece.
After a saw blade replacement or if teeth
are heavily worn, each scale should be
zeroed-in again:
1. Loosen fastening screw (77) on the
centre of the scale and adjust the
scale position, so that the scale indi-
cates the exact distance to the tooth
edge (from the extended centre line
of the scale).
77
2. Tighten fixing screw and verify set-
ting by making a trial cut.
9.5 Rotating table adjust-
ment
3
Note:
The rotating table's
device needs to be inspected from time
to time to ensure the positive detents
match with the mitre angles indicates by
the scale:
1. Set rotating table to a "0 " mitre
angle and lock with lever (80).
78
2. Loosen hexagon socket head cap
screw (79) on the lever's (80) pivot
point.
3. Adjust male nut (81) with open jaw
wrench until reference mark is
exactly in line with the 0 mark of the
rotating table's scale (78).
4. Tighten hexagon socket head cap
screw (79) (counter male nut (81)
with open jaw wrench) and verify
setting – readjust if necessary.
9.6 Compensation adjust-
ment of the blade return
action.
The compensation of the blade return
action has to be set so that the motor-
head carriage returns completely on its
own without hitting the end position and
coming to a sudden stop.
The compensation adjusting screw (82)
is located below the rotating table, at the
end of the shock absorber (83):
82
83
locking
1. Turn rotating table 90° to the right.
2. Set the push/pull action to the centre
position and lock.
3. The adjusting screw (82) is now
accessible from the left-hand side of
the saw.
To adjust the damping:
turn clockwise = more damping
turn counter-clockwise = less damp-
ing
79
81
80
ENGLISH
9.7 Machine cleaning and
lubrication
1. Remove chips and saw dust with
vacuum cleaner or brush:
from setting device of saw blade;
chip case;
motor vent slots.
2. Apply a light coat of oil to the saw
blade setting device.
9.8

Machine storage

A
Danger!
Store the saw in such way that it
can not be started by unauthor-
ized persons.
Make sure that nobody can get
injured by the stored machine.
A
Caution!
Do not store saw unprotected
outdoors or in damp environ-
ment.
Observe the permissible ambient
conditions (see "Technical speci-
fications").
9.9

Maintenance

Before switching ON
Chip case (when working without dust
collection):
visual check to see if unobstructed
by chips.
Riving knife:
visual check if distance saw blade –
riving knife is 3...5 mm.
Power cable and plug:
check for damage, if necessary
have replaced by a qualified electri-
cian.
Monthly (if used daily)
Remove saw dust and chips with vac-
uum or brush; apply light coat of oil to
guide elements:
threaded rod and guide rods of
blade rise and fall mechanismn:
connecting rods;
bearing races of rotating table;
swivel segments;
damper.
Every 300 hours of operation
Check all screwed joints, retighten if
necessary.
