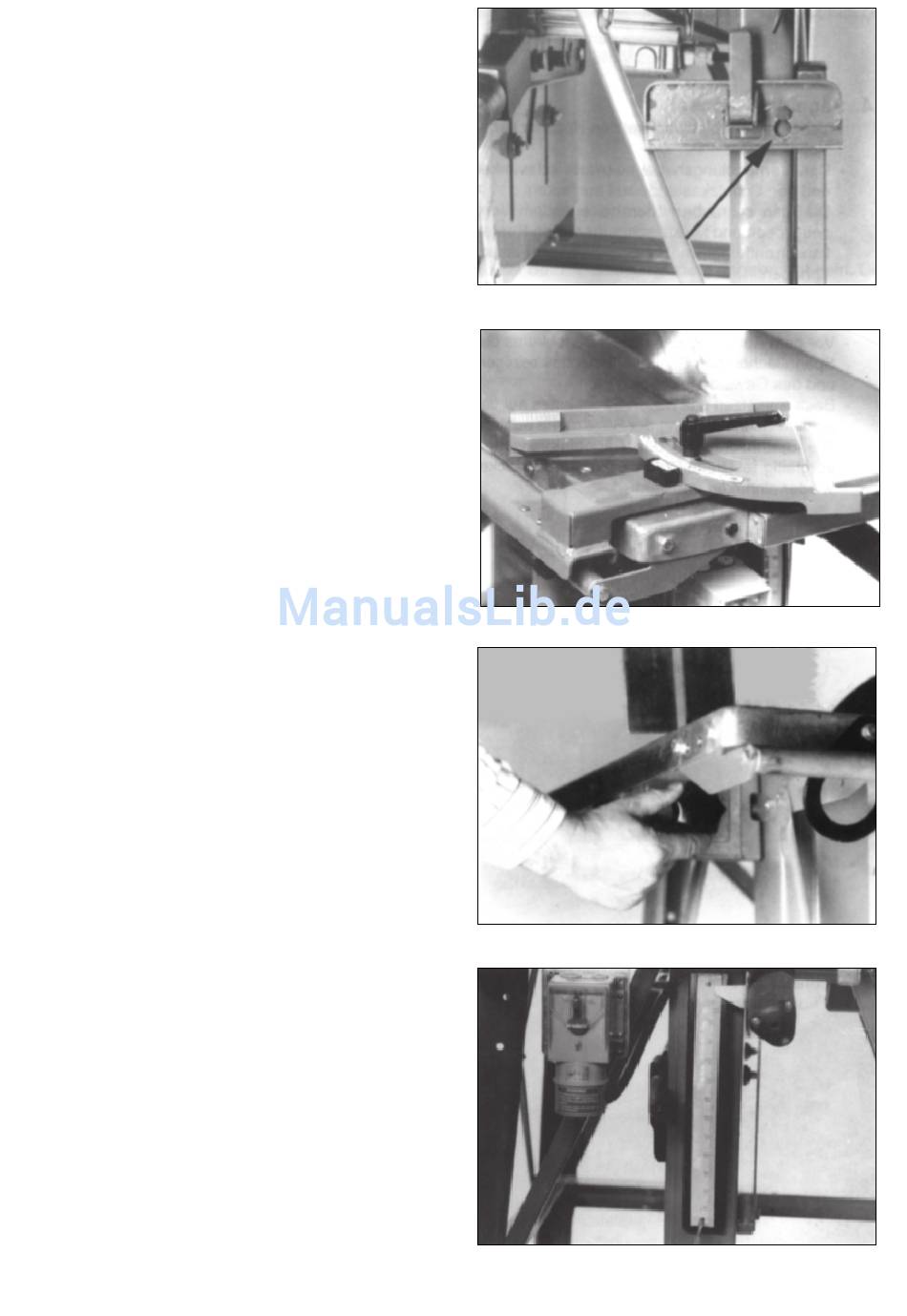

Should the ripping fence not be needed, it can be
hooked in on the right leg of the table.

7.7 Mitre fence

The shiftable angle stop bar which is located on the left
side of the table can be swivelled from 90° to 45°, once
the locking lever has been released. The angle needed
can be read directly off the scale. In case the mitre fence
should not be needed, it can be swivelled sideways
downwards near the switch.

7.8 Mounting the saw blade guard

After releasing the star shaped handle, the protective
hood and the guard support can be pulled out upwards,
or be pushed in from an upward position. Operation
without the saw blade guard can cause considerable
injury !
8 Adjustment

8.1 Vertical adjustment

The arc scale of the vertical adjustment is equipped with
scale marks on both sides. The scale division 0 -120 mm
is for saw blades of 400 mm in diameter. The scale
division 20 - 150 mm is for saw blades of 450 mm in
diameter. The scale can be slid after the three fixing
screws have been loosened. Thus a re-adjustment of,
for example, re-ground blades is possible.
