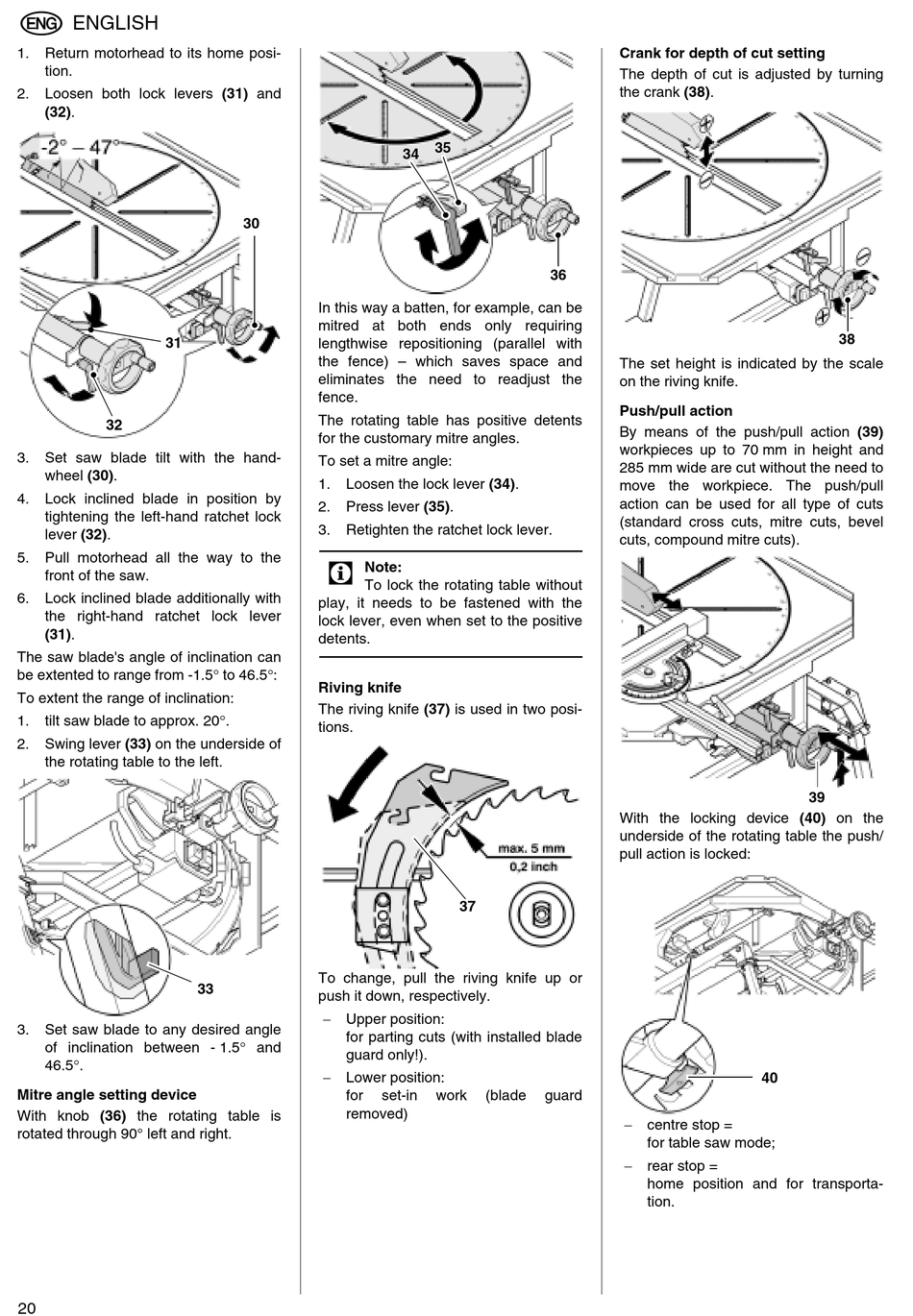

ENGLISH
1. Return motorhead to its home posi-
tion.
2. Loosen both lock levers (31) and
(32).
31
32
3. Set saw blade tilt with the hand-
wheel (30).
4. Lock inclined blade in position by
tightening the left-hand ratchet lock
lever (32).
5. Pull motorhead all the way to the
front of the saw.
6. Lock inclined blade additionally with
the right-hand ratchet lock lever
(31).
The saw blade's angle of inclination can
be extented to range from -1.5 to 46.5 :
To extent the range of inclination:
1. tilt saw blade to approx. 20 .
2. Swing lever (33) on the underside of
the rotating table to the left.
3. Set saw blade to any desired angle
of inclination between - 1.5
46.5 .
Mitre angle setting device
With knob (36) the rotating table is
rotated through 90° left and right.
20
30
In this way a batten, for example, can be
mitred at both ends only requiring
lengthwise repositioning (parallel with
the fence) – which saves space and
eliminates the need to readjust the
fence.
The rotating table has positive detents
for the customary mitre angles.
To set a mitre angle:
1. Loosen the lock lever (34).
2. Press lever (35).
3. Retighten the ratchet lock lever.
3
Note:
To lock the rotating table without
play, it needs to be fastened with the
lock lever, even when set to the positive
detents.
Riving knife
The riving knife (37) is used in two posi-
tions.
To change, pull the riving knife up or
33
push it down, respectively.
Upper position:
for parting cuts (with installed blade
and
guard only!).
Lower position:
for
removed)
35
34
36
37
set-in work (blade guard
Crank for depth of cut setting
The depth of cut is adjusted by turning
the crank (38).
The set height is indicated by the scale
on the riving knife.
Push/pull action
By means of the push/pull action (39)
workpieces up to 70 mm in height and
285 mm wide are cut without the need to
move the workpiece. The push/pull
action can be used for all type of cuts
(standard cross cuts, mitre cuts, bevel
cuts, compound mitre cuts).
With the locking device (40) on the
underside of the rotating table the push/
pull action is locked:
40
centre stop =
for table saw mode;
rear stop =
home position and for transporta-
tion.
38
39
