Terminal area

MicroSD card
4x Connection to power supply
(++/--) 15-24 V DC / 8W
10

Voltage supply

To connect the device, use an external electronic 24V DC power supply with a maximum residual ripple
of 5 % and a galvanic isolation between the primary and the secondary side
Note: A power supply is not included in the scope of delivery.
11

Connecting the terminals

Insert a insulated small screw driver into the upper slot of the respective contact. To open the contact,
push the screw driver upwards. Keep the contact open and insert the connection wire into the contact.
Ensure that the connection wire is firmly positioned.

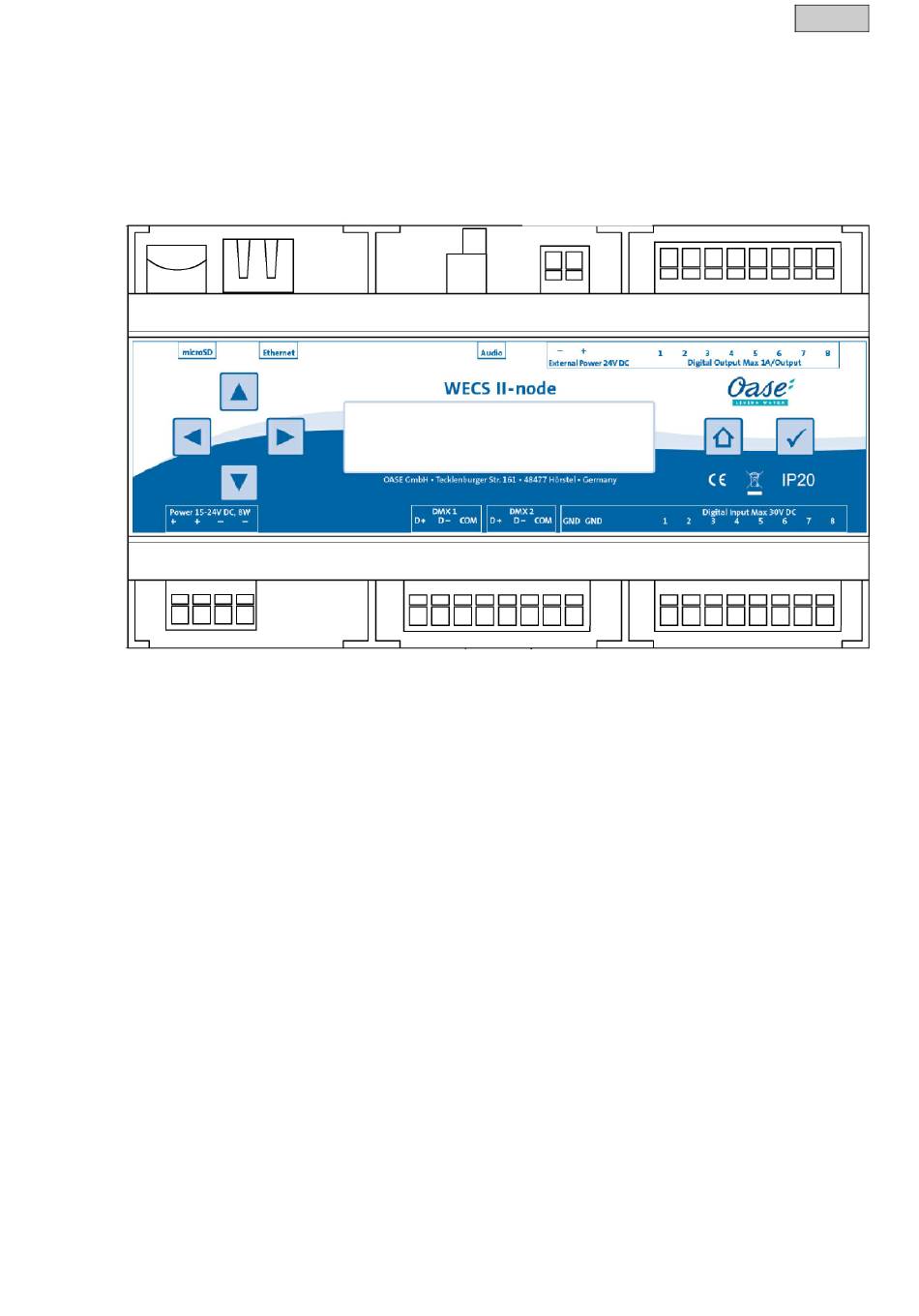

Audio 3.5 mm
stereo jack,
galvanically
RJ-45
isolated
Ethernet
2x DMX-RDM outputs,
galvanically isolated
Connection of
voltage supply
+24V DC
8x digital output 1A/ output,
for digital outputs
galvanically isolated
(-/+)
2x grounding
8x Digital inputs, galvanically
for digital
isolated
inputs
