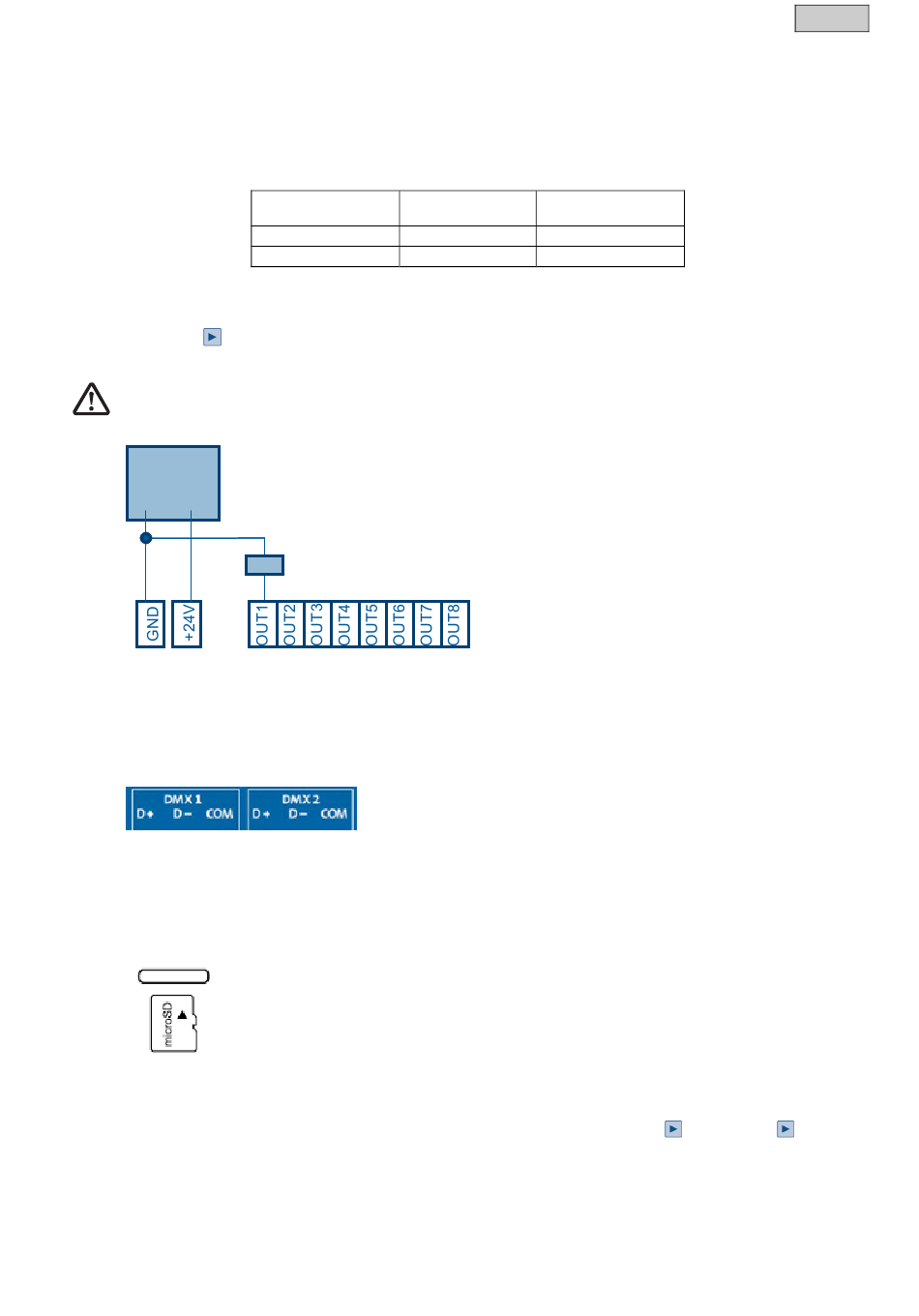

Digital outputs

The device is equipped with eight configurable, galvanically isolated outputs for controlling third-party
systems. A maximum of 1 ampere per output at 24V DC can be applied to each output. If the device is
restarted the previously active outputs are no longer active.
In remanent mode an accidental switching off can be prevented since the value range must be between
10 and 50. After releasing a show, the output can be held on till the next show. The mode can be selected
at 8.Setup Digital Outputs.
Do not use the unit to control safety-relevant assembly components.
Power Power
Supply Supply
24V DC 24V DC
14

DMX Ports

The DMX/RDM outputs are located on the lower terminals. Both the DMX1 and DMX2 ports are designed
for 512 channels respectively. For each port, the DMX+ terminal [D+], the DMX- terminal [D-] and the
shed/grounding of the cable are placed on the COM output. Corresponding to the OASE plug-in system:
[5-pole socket plug], [D+] red, [D-] white, [COM] shield.
15

Audio output

For the WECS II 1024 DMX/02, the audio output 3.5 mm jack bush (galvanically isolated) can be used to
control a sound system.
16

Micro SD card

A Micro SD card is included in the scope of delivery. The WECS is compatible with cards of up to 8 GB.
Without SD cards, the unit can only be operated as an interface. Show files, schedulers (show day
schedulers) and music files are saved on the card. Ensure that there is no show running before you
remove or re-insert the MicroSD card. Then press the menu item
the show. If this does not work, re-start the unit by disconnecting it from the voltage supply.
Mode
Standard
Remanent
A2 A2
24V DC Relais 24V DC Relais
A1 A1
Value Value range
range OFF ON
0..127 128..255
10..50 128..255
2. Show
- GB -
/ Run Show to re-start
