Fixation screws

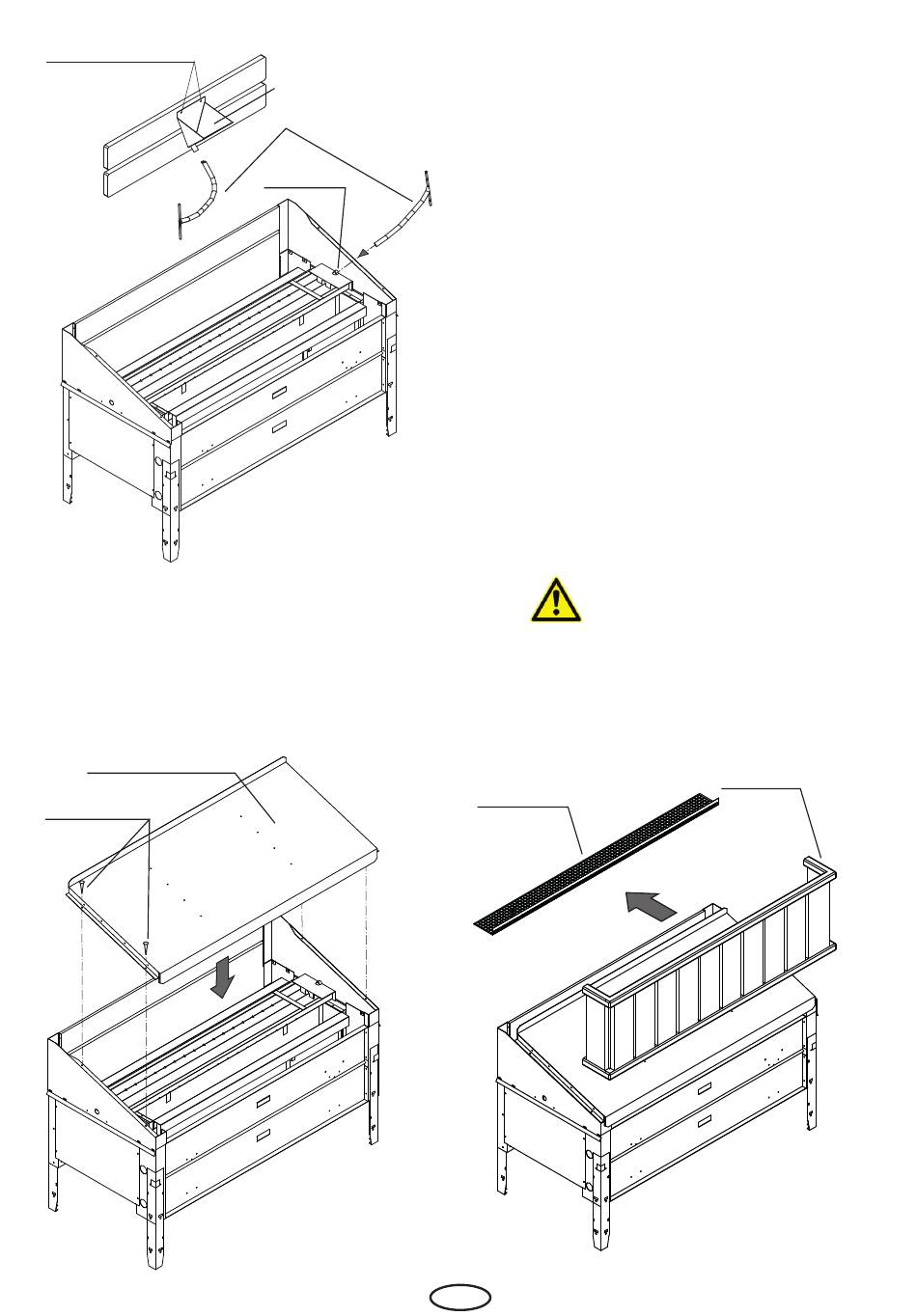

8. Mount the deflector cover (Fig. 7)
• Set the deflector cover back on the deflec-
tor and line it up along the corner holes.
• Fasten the cover at the corners with 4
screws
Deflector cover
Fixation screws
26
Infusion funnel
Silicone tube
Connector
Fig. 6
Fig. 7
9. Temperature sensor installation
• Contradictory to the advice concerning
the installation of the sensor given in the
sauna control unit manual, the tempera-
ture sensor shall be mounted centered
to the heater on the ceiling 11,5 cm from
the rear wall and min. 80 cm from the side
walls. See Fig. 1.
• Connect the sensor as per installation
manual of the sauna control unit.
10. Partition wall and safety grill installation
• Install the partition wall so that the min-
imal safety clearances are observed. See
Fig. 1 (page 8) and Fig. 8. The partition
wall is not included with the heater.
• Make sure the partition wall is installed
properly.
• Mount the supplied safety grill along the
upper edge of the partition wall between
the sauna wall and partition wall
The safety grill prevents that
•
an object may be accidentally
dropped on the heater. Do not use the
heater without safety grill! Fire risk!
Safety grill
D
Partition wall
Fig. 8
