Installation

1. Deinstall the cover of air deflector
• Loosen 4 screws on both sides of the
deflector cover (see Fig. 2).
• Slide the deflector cover upwards, lift it
up and take it off.
2. Mount the heater feet
• Overturn the heater carefully on the
side wall. Use an underlay if necessary to
protect it from scratching.
• Insert the feet on all corners into the
corresponding grooves and fasten with
3 screws (see Fig. 2).
3. Change the height
• If necessary you can set the heater lower
(up to 15 cm lower).
• Overturn the heater on its side.
• Unscrew 3 fixation screws on each foot.
• Set the feet 15 cm deeper into the heater.
• Secure each foot with 3 screws.
• Put the heater back into normal position

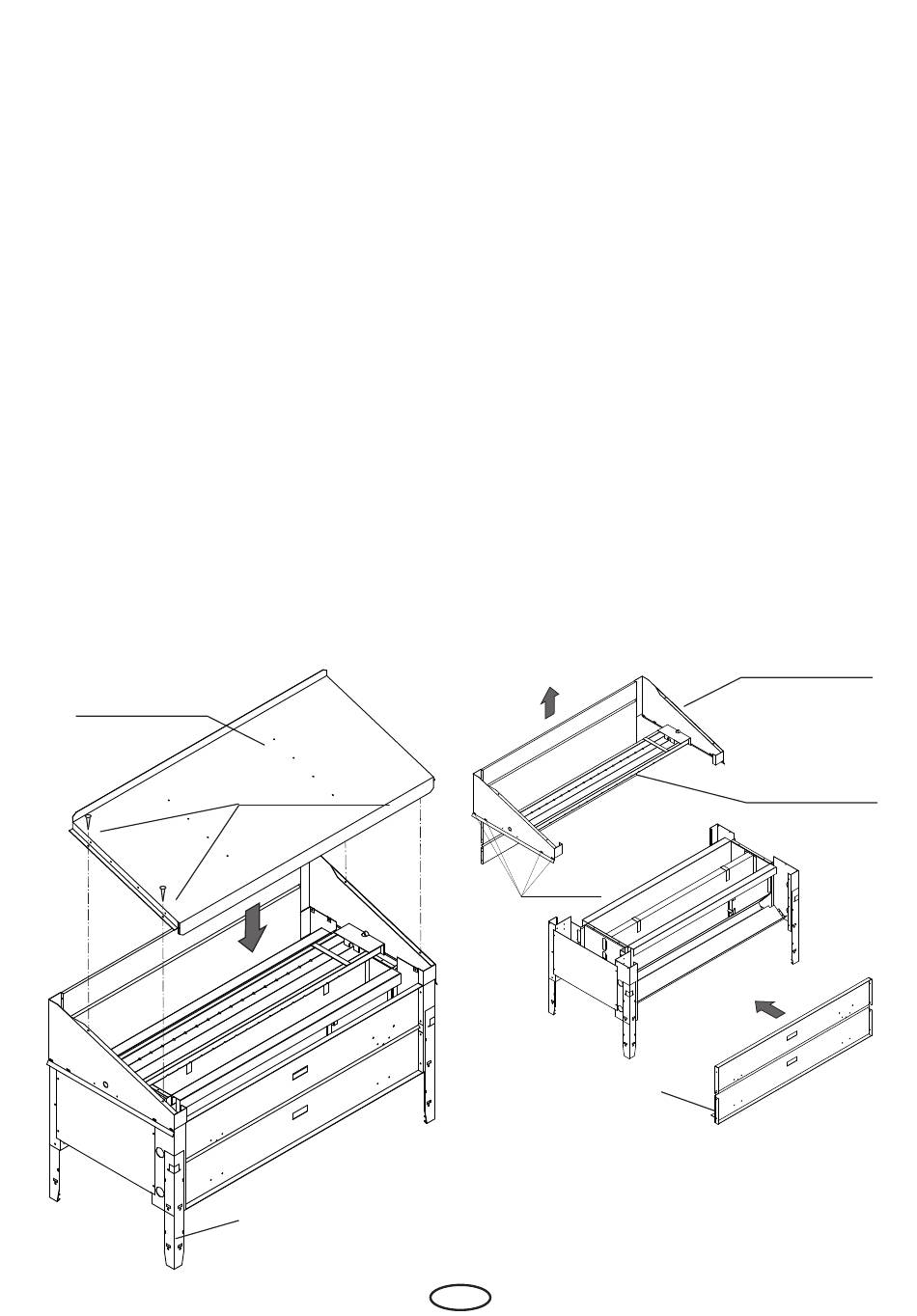

Deflector cover
24
Fixation screws
Foot
Fig. 2
4. Change the connection side of the infusion
funnel
• Unscrew 8 fixation screws on the sides of
the deflector (see Fig. 3)
• Pull the deflector up and take it off.
• Remove the front wall cover (undo 4
screws).
• Turn the heater body around (180°) into
the desired position.
• Set the deflector back on the heater with
the higher side facing back.
• Fasten the deflector with 8 screws on
both sides.
• Notice: If necessary also turn the gutter
around, so that it declines away from the
funnel connection (see § 6, Fig. 5).
• Mount the front wall cover back on the
heater (using 4 screws).
• Push the heater carefully to the sauna wall
to its final position.
Fixation
screws
Front wall
D
Air deflector
Gutter
Fig. 3
