Specifications

Nominal voltage: 400 V AC 3N 50 Hz
Power rating: 9,0 kW
Height: 800 mm
Width: 1160 mm,
Depth: 580 mm
Rock store volume: 75 kg
Leakage current: max. 0,75 mA per kW power
Intended use: sauna heater for use in domestic
and commercial sauna cabins.

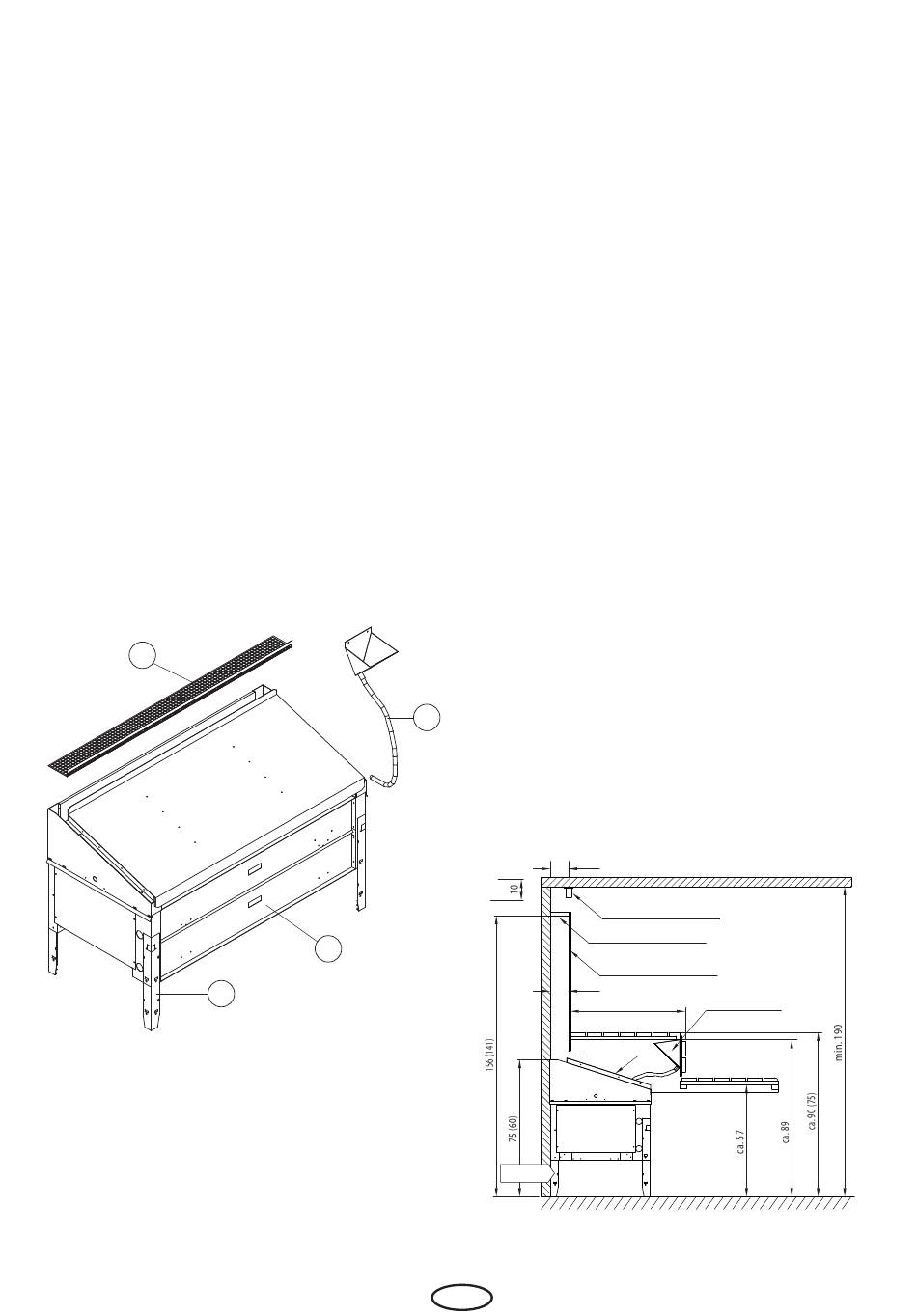

Standard delivery:

1 sauna heater
1 metal funnel with silicone tube and connector
1 safety grill
1 polybag with 4 flat-head screws
1 set of sauna rocks (appr. 75 kg)
4
3
1. sauna heater
2. Water splash funnel with silicone hose
3. Adjutable feet
4. Safety grill
The sauna heater is designed for use with 400V
3N AC 50Hz power supply and shall be operated
with the appropriate sauna control unit.

Minimal clearances

The minimal inner height of the sauna cabin
shall be 1,90 m.
The horizontal gap between the sauna heater
and the cabin wall must be at least 7 cm.
The distance between partition wall or sauna
bench or other flammable materials and the
sauna heater shall be as shown below on Fig. 1.
The supplied safety grill shall be mounted along
the top edge of the partition wall between this
partition wall and sauna wall (Fig. 1). This shall
prevent that an object may be accidentally
dropped on the sauna heater.
Contradictory to the advice concerning the
mounting of the sensor of your sauna control
unit, the temperature sensor shall not be
mounted on the ceiling above the sauna heater
but, as shown in the diagram (Fig. 1). See page
26 for more details.
Please notice that Inviso heater has a speci-
fic heat-up characteristic, the temperature
regulation will begin retarded after a longer
heat-up phase.
2
Installation example (side view)
1
Dimensions in mm
D
11,5
temperature sensor
safety grill
patition wall (not included)
10
ca. 60
Invisio
Intake
funnel
Fig. 1
