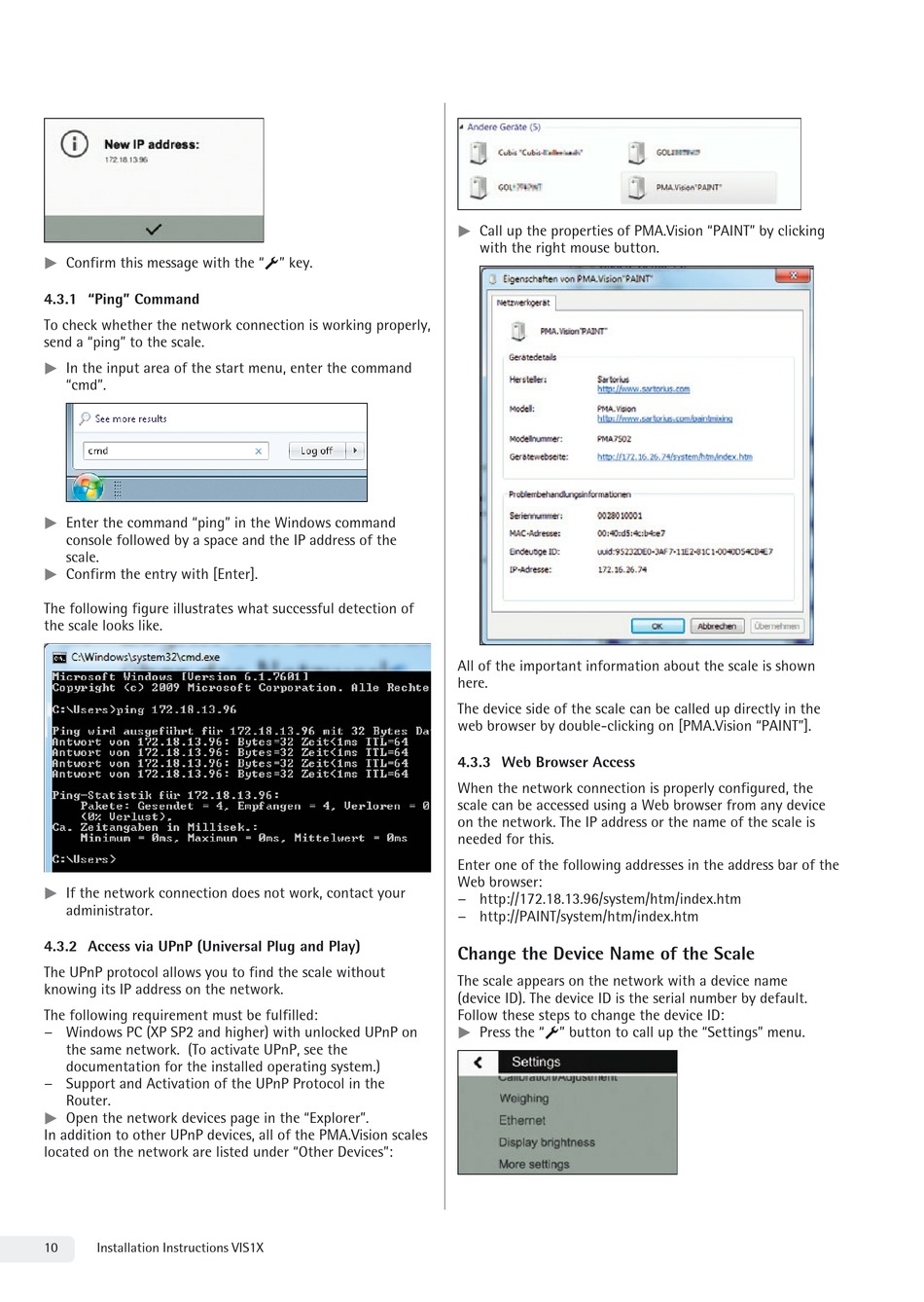

Sartorius PMA.Vision Installationsanleitung Seite 10

t
Confirm this message with the "i" key.
4.3.1 "Ping" Command
To check whether the network connection is working properly,
send a "ping" to the scale.
t
In the input area of the start menu, enter the command
"cmd".
t
Enter the command "ping" in the Windows command
console followed by a space and the IP address of the
scale.
t
Confirm the entry with [Enter].
The following figure illustrates what successful detection of
the scale looks like.
t
If the network connection does not work, contact your
administrator.
4.3.2 Access via UPnP (Universal Plug and Play)
The UPnP protocol allows you to find the scale without
knowing its IP address on the network.
The following requirement must be fulfilled:
− Windows PC (XP SP2 and higher) with unlocked UPnP on
the same network. (To activate UPnP, see the
documentation for the installed operating system.)
− Support and Activation of the UPnP Protocol in the
Router.
t
Open the network devices page in the "Explorer".
In addition to other UPnP devices, all of the PMA.Vision scales
located on the network are listed under "Other Devices":
10 Installation Instructions VIS1X
t
Call up the properties of PMA.Vision "PAINT" by clicking
with the right mouse button.
All of the important information about the scale is shown
here.
The device side of the scale can be called up directly in the
web browser by double-clicking on [PMA.Vision "PAINT"].
4.3.3 Web Browser Access
When the network connection is properly configured, the
scale can be accessed using a Web browser from any device
on the network. The IP address or the name of the scale is
needed for this.
Enter one of the following addresses in the address bar of the
Web browser:
− http://172.18.13.96/system/htm/index.htm
− http://PAINT/system/htm/index.htm
Change the Device Name of the Scale
The scale appears on the network with a device name
(device ID). The device ID is the serial number by default.
Follow these steps to change the device ID:
t
Press the "i" button to call up the "Settings" menu.
