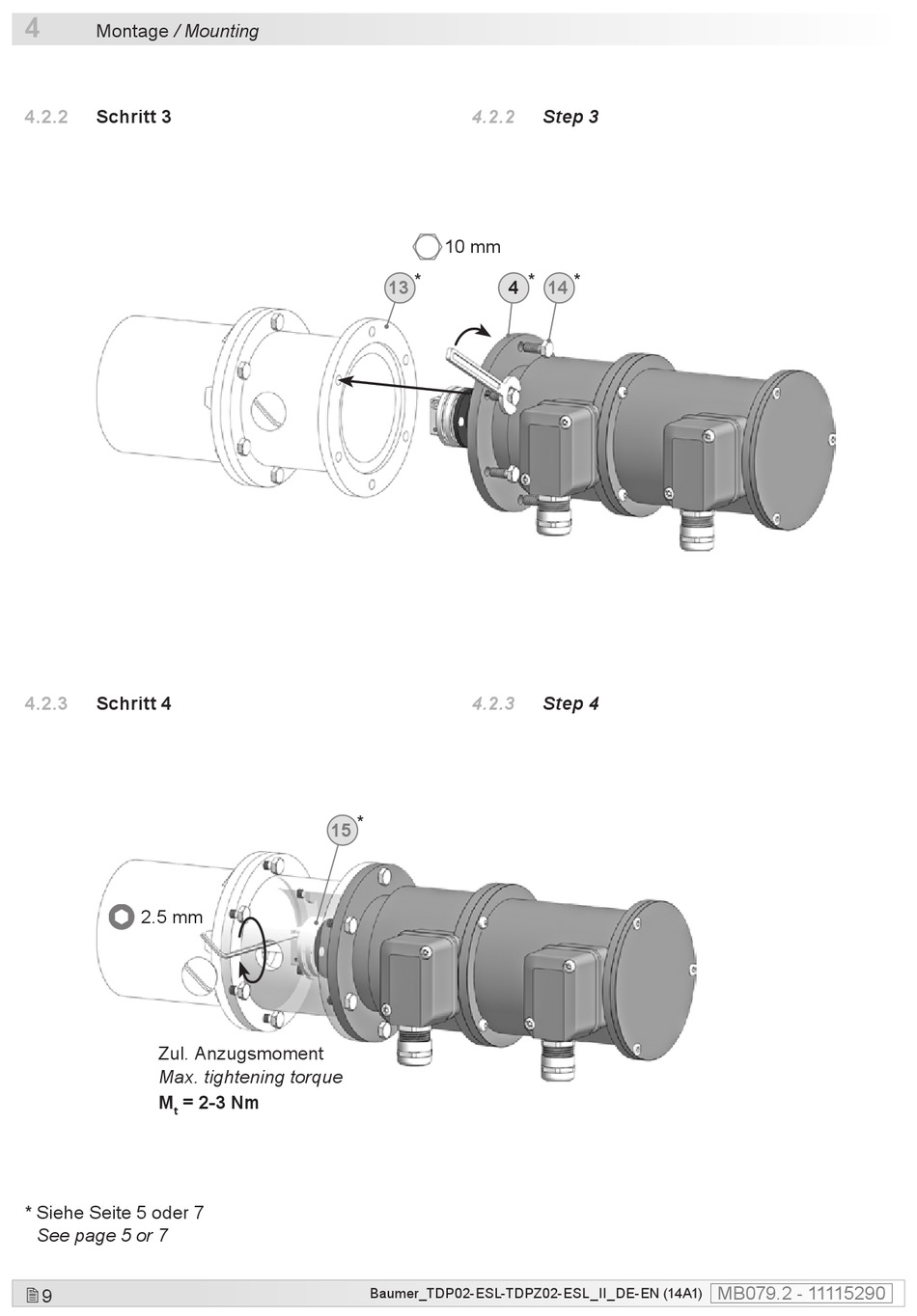

Montage / Mounting
4.2.2
Schritt 3
4.2.3
Schritt 4
2.5 mm
Zul. Anzugsmoment
Max. tightening torque
M
= 2-3 Nm
t
* Siehe Seite 5 oder 7
See page 5 or 7
9
4.2.2
10 mm
*
13
4.2.3
*
15
Baumer_TDP02-ESL-TDPZ02-ESL_II_DE-EN (14A1)
Step 3
4 *
*
14
Step 4
