6.2

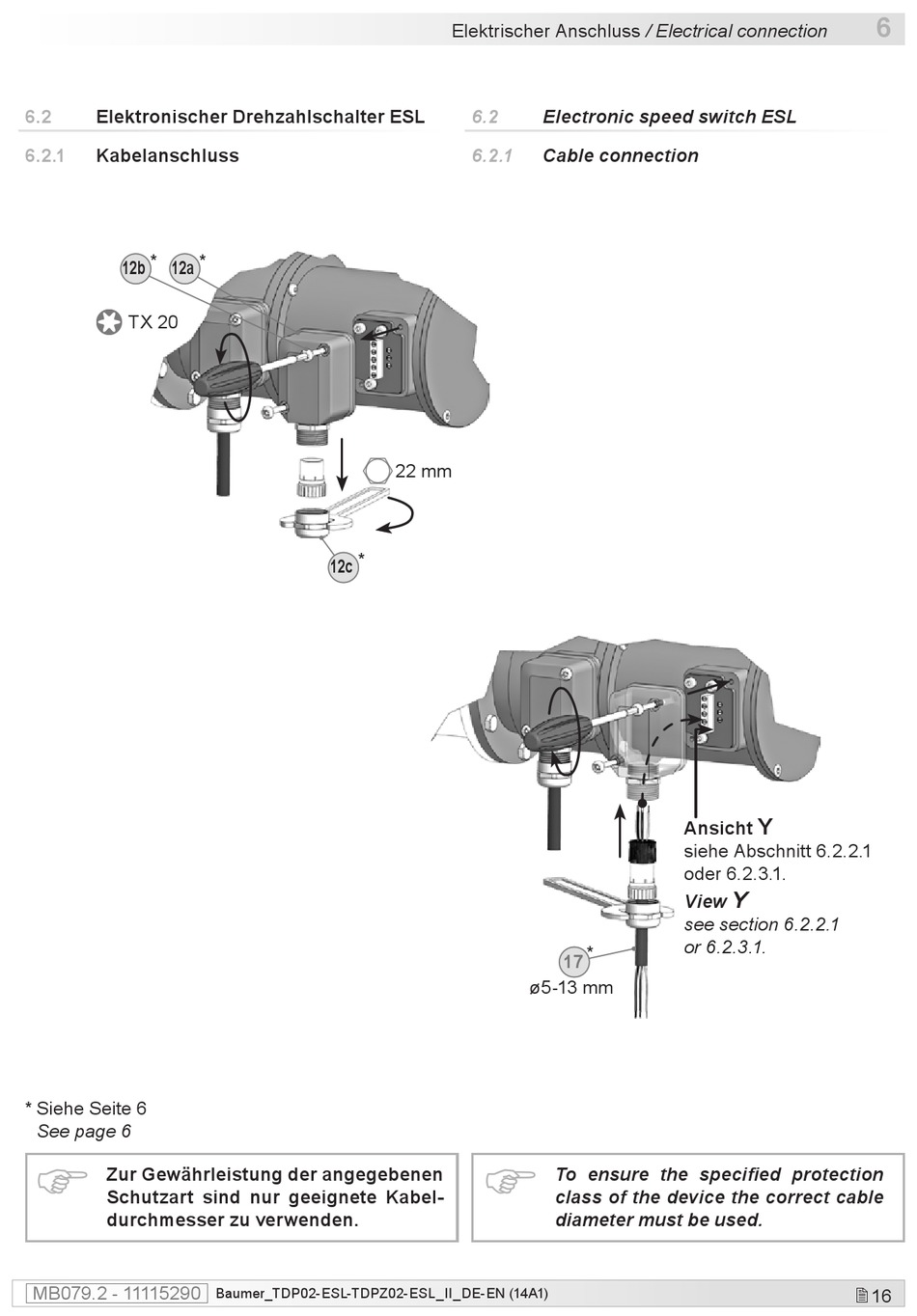

Elektronischer Drehzahlschalter ESL
6.2.1
Kabelanschluss
*
12b
12a
TX 20
* Siehe Seite 6
See page 6
Zur Gewährleistung der angegebenen
Schutzart sind nur geeignete Kabel-
durchmesser zu verwenden.
MB079.2 - 11115290
*
12c *
Baumer_TDP02-ESL-TDPZ02-ESL_II_DE-EN (14A1)
Elektrischer Anschluss / Electrical connection
6.2
Electronic speed switch ESL
6.2.1
Cable connection
22 mm
17
ø5-13 mm
To ensure the specified protection
class of the device the correct cable
diameter must be used.
Y
Ansicht
siehe Abschnitt 6.2.2.1
oder 6.2.3.1.
Y
View
see section 6.2.2.1
or 6.2.3.1.
*
