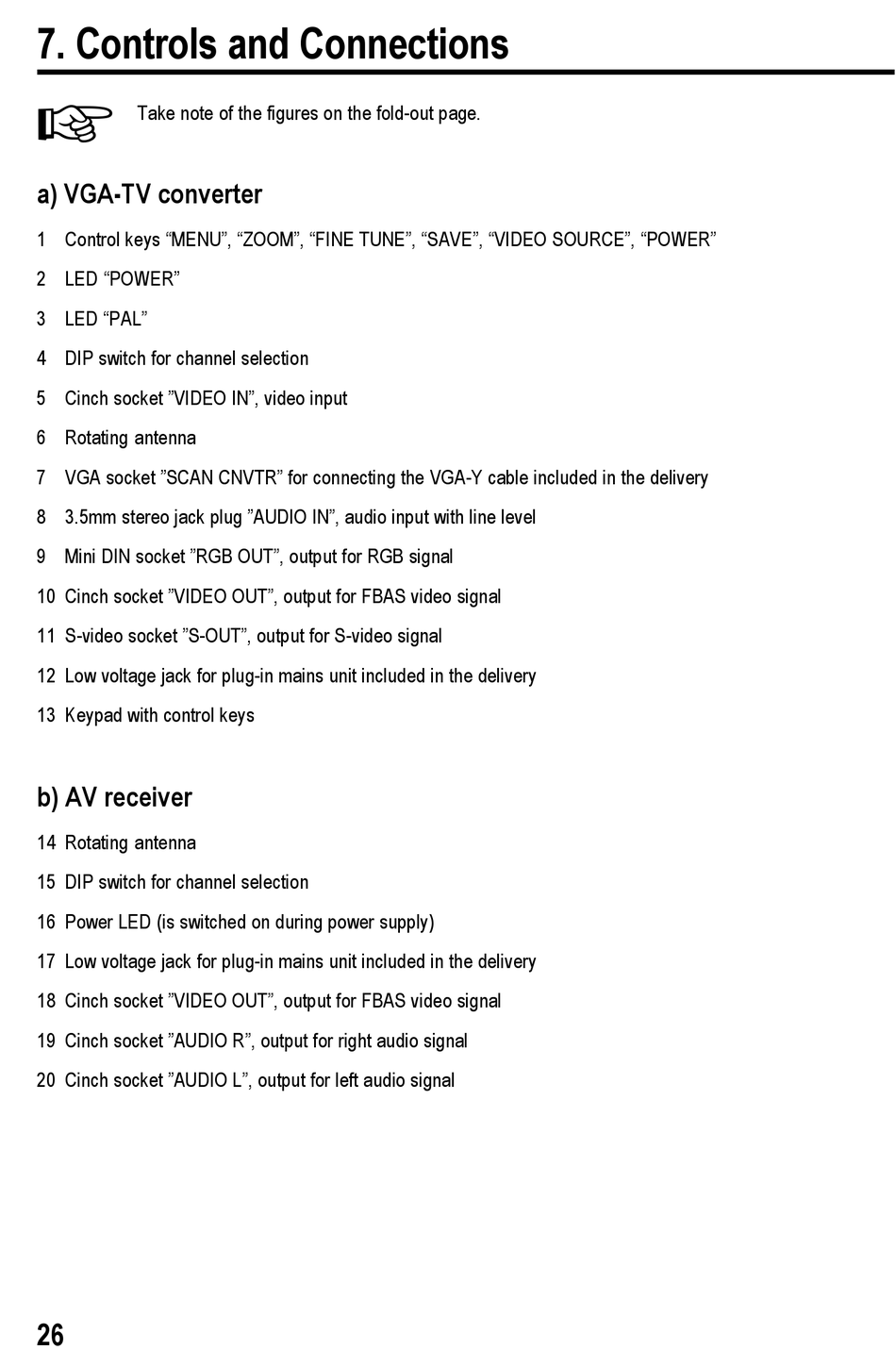

7. Controls and Connections


Take note of the figures on the fold-out page.

a) VGA-TV converter

1 Control keys "MENU", "ZOOM", "FINE TUNE", "SAVE", "VIDEO SOURCE", "POWER"
2 LED "POWER"
3 LED "PAL"
4 DIP switch for channel selection
5 Cinch socket "VIDEO IN", video input
6 Rotating antenna
7 VGA socket "SCAN CNVTR" for connecting the VGA-Y cable included in the delivery
8 3.5mm stereo jack plug "AUDIO IN", audio input with line level
9 Mini DIN socket "RGB OUT", output for RGB signal
10 Cinch socket "VIDEO OUT", output for FBAS video signal
11 S-video socket "S-OUT", output for S-video signal
12 Low voltage jack for plug-in mains unit included in the delivery
13 Keypad with control keys

b) AV receiver

14 Rotating antenna
15 DIP switch for channel selection
16 Power LED (is switched on during power supply)
17 Low voltage jack for plug-in mains unit included in the delivery
18 Cinch socket "VIDEO OUT", output for FBAS video signal
19 Cinch socket "AUDIO R", output for right audio signal
20 Cinch socket "AUDIO L", output for left audio signal
