VessRAID 1000s Series Quick Start Guide

LCD Panel

The LCD panel activates approximately 35 seconds after you switch on the
VessRAID's power supply.
At first, the LCD screen displays
When the VessRAID is fully booted and running under normal conditions, the
LCD screen shows the VessRAID model number and IP address, as shown in
Figure 16.

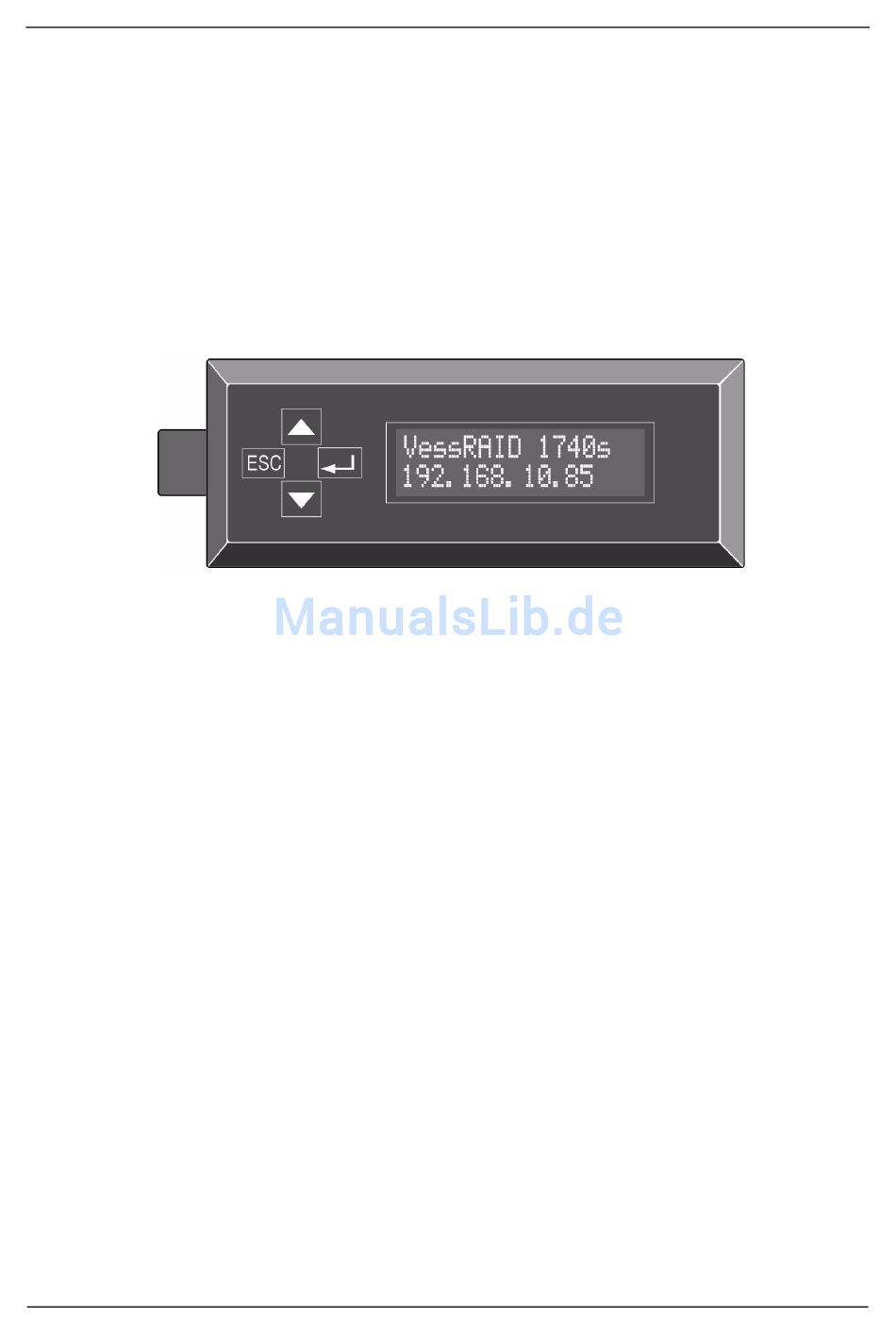

Figure 16.VessRAID optional LCD display
A list of LCD panel functions and instructions for using them is included in the
VessRAID Product Manual on the CD.
This completes the power and start-up. Go to "Task 8: Setting the IP Address" on
page 18.
System is Initializing
