VessRAID 1000s Series Quick Start Guide

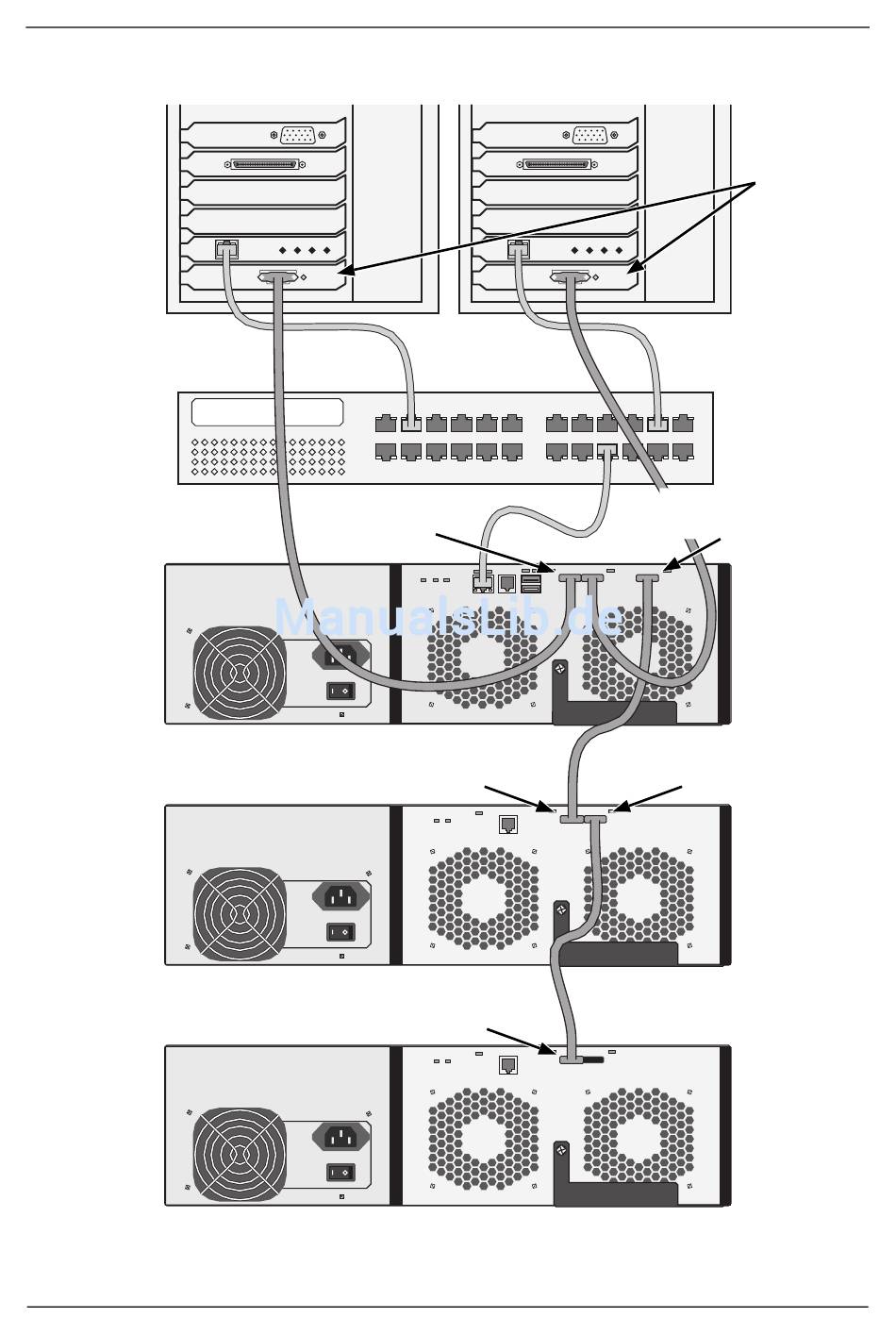

Figure 11. Data and management connections
Host PCs or
Servers
Network
Switch
VessRAID
VessJBOD
VessJBOD
This completes data and management connections. Go to "Task 6: Setting Up
Serial Cable Connections" on page 14.
SAS IN ports
Circle icon
SAS IN port
Circle icon
SAS IN port
Circle icon
13
SAS HBA
cards
SAS Expansion port
Diamond icon
SAS OUT port
Diamond icon
