Controller LEDs

When boot-up is finished and the VessRAID subsystem is functioning normally:
• Battery, and Controller status LEDs display green continuously.
• Ethernet LEDs display green or flash depending on your network
connection.

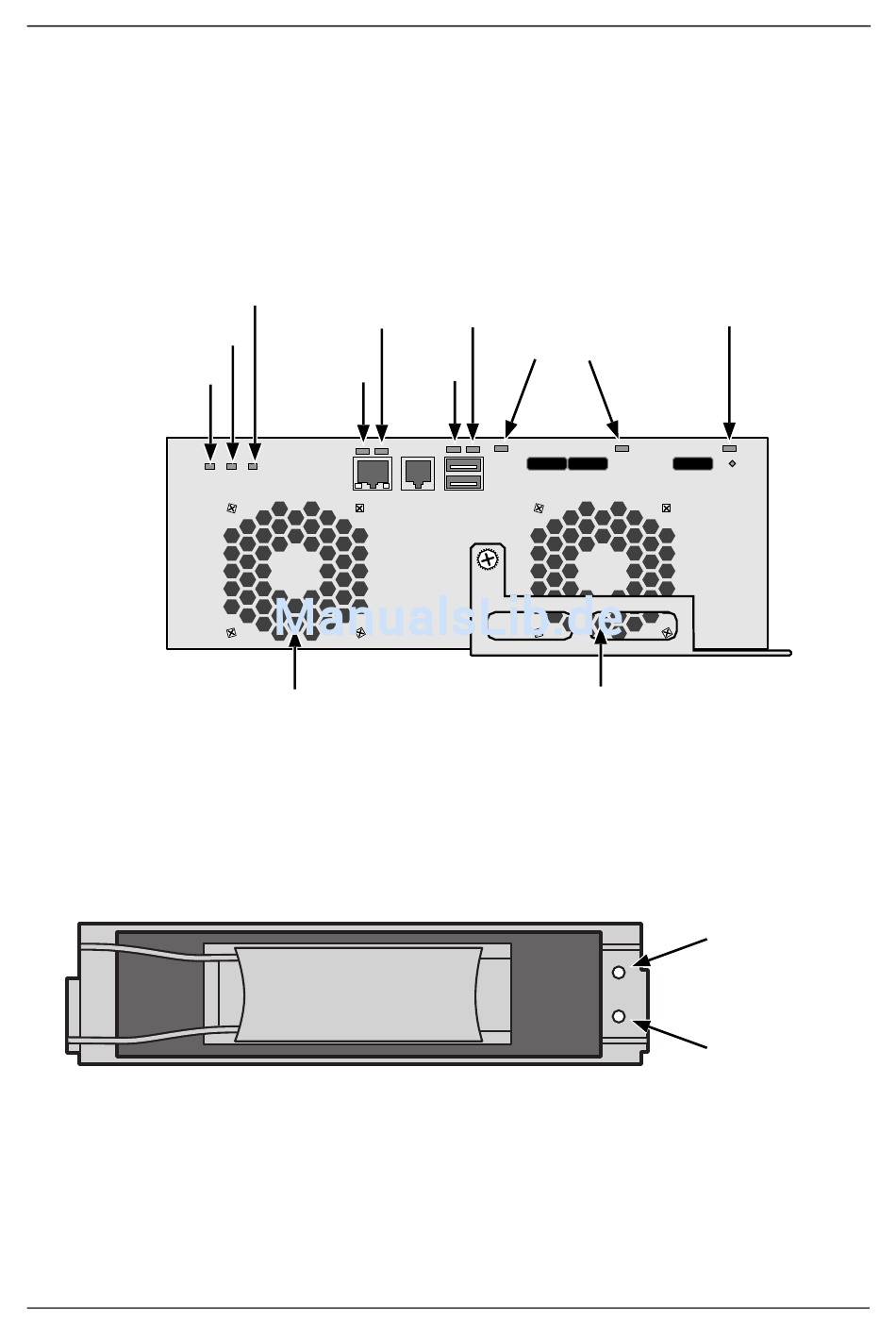

Figure 14.VessRAID Controller LEDs
Fan 1
Battery

Disk Drive LEDs

There are two LEDs on each Drive Carrier. They report the presence of a disk
drive, activity of the drive, and the drive's current condition.
Figure 15.VessRAID disk drive carrier LEDs
If there is a disk drive in the carrier, the Power/Activity LED displays Green. If not,
the Power/Activity LED remains dark. The Power/Activity LED flashes during
drive activity.
The Disk Status LED displays Green when a drive is configured.
Fan 2 Dirty
Cache
Controller
Status
Fan 1
USB 2
SAS IN Ports
USB 1
16
Task 7: Connecting the Power
JBOD Expansion Port
Fan 2
Disk Status
Power/Activity
