VessRAID 1000s Series Quick Start Guide

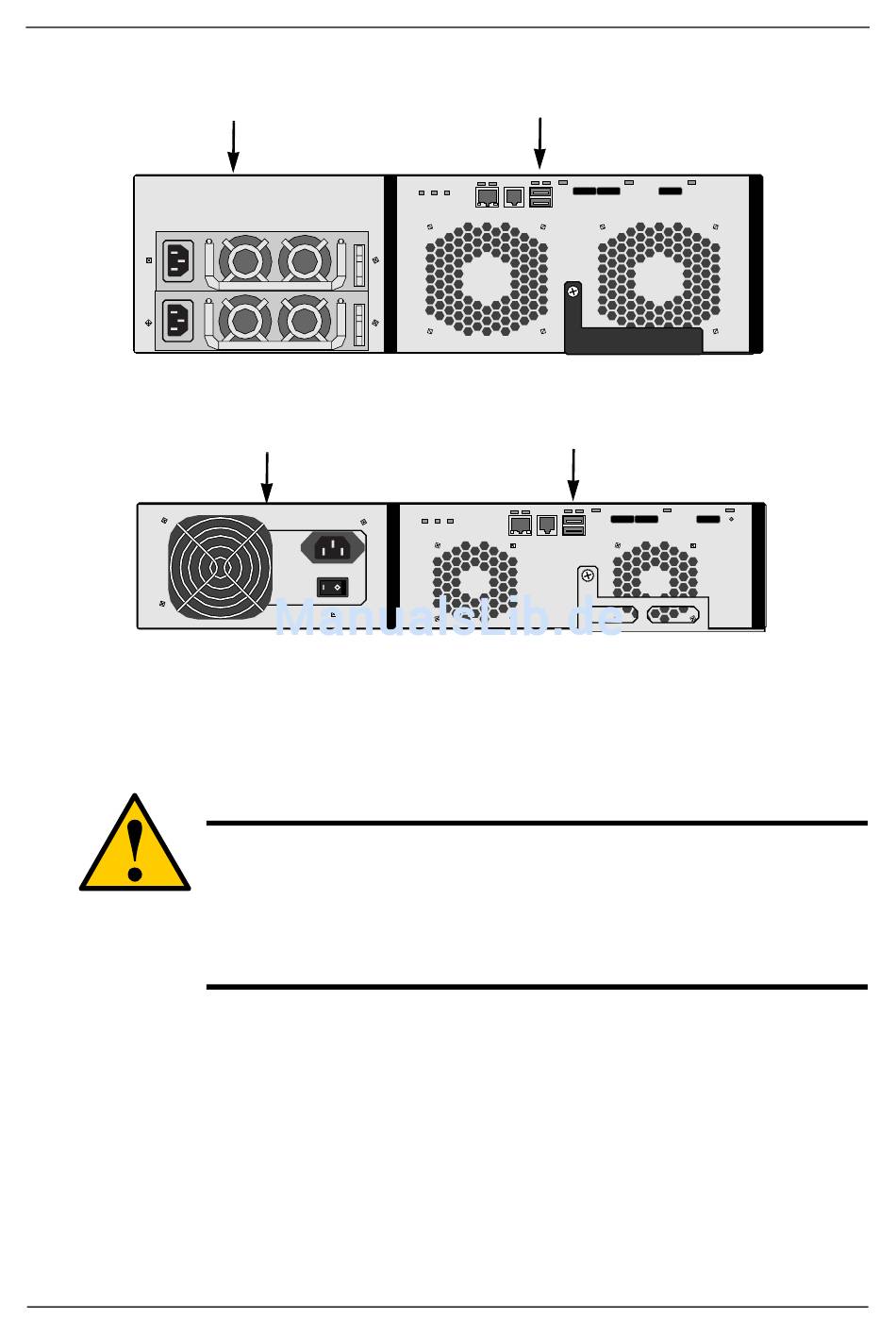

Figure 2. VessRAID 1840s rear view
Power Supply
Figure 3. VessRAID 1730s rear view
For a description of the LEDs, see page 16, Figure 14.

Task 2: Installing the LCD Panel (Optional)

The LCD panel mounts to the left ear of the VessRAID enclosure.
1. Align the connector on the left bracket of the VessRAID enclosure to the
connector on the back of the LCD panel, as shown in Figure 4.
Power Supply
• The LCD panel is NOT a hot-swap device. Be sure the
VessRAID is powered down before you connect or disconnect
the LCD panel.
• You must install the LCD panel before you mount the
VessRAID subsystem in a rack.
RAID Controller
RAID Controller
Cautions
5
