EFC x610 Series

2-wire control mode 2 (Forward / reverse, run / stop)

Step 1: Activate 2-wire control mode 2
Set [E1.15] = '1: 2-wire forward / reverse, run / stop'.
Step 2: Define two digital inputs
Set one of digital inputs as '35: Forward running (FWD)'
●
Set one of digital inputs as '36: Reverse running (REV)'
●
Example:
Connected switch K1 to X1, and set [E1.00] = '35: Forward running (FWD)'.
Connected switch K2 to X2, and set [E1.01] = '36: Reverse running (REV)'.

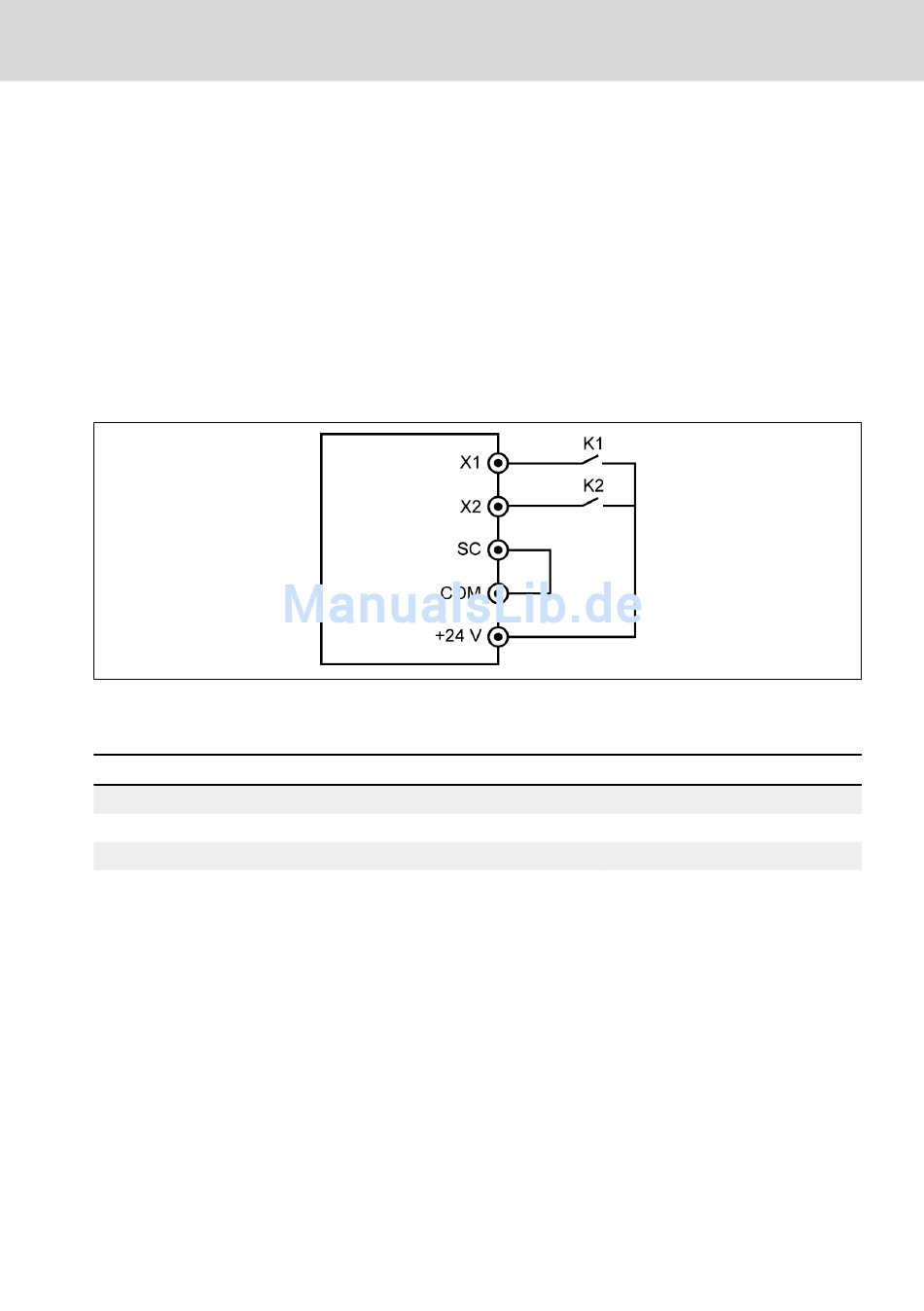

Fig. 12-35: 2-wire control mode 2
The control logic is shown in the table below:
K1
Open
Closed
Open
Closed
Tab. 12-12: 2-wire control mode 2 configuration
DOK-RCON03-EFC-X610***-IT06-EN-P
K2
Open
Open
Closed
Closed
Bosch Rexroth AG
Functions and Parameters
Running status
Stop
Running forward
Stop
Running reverse
181/421
