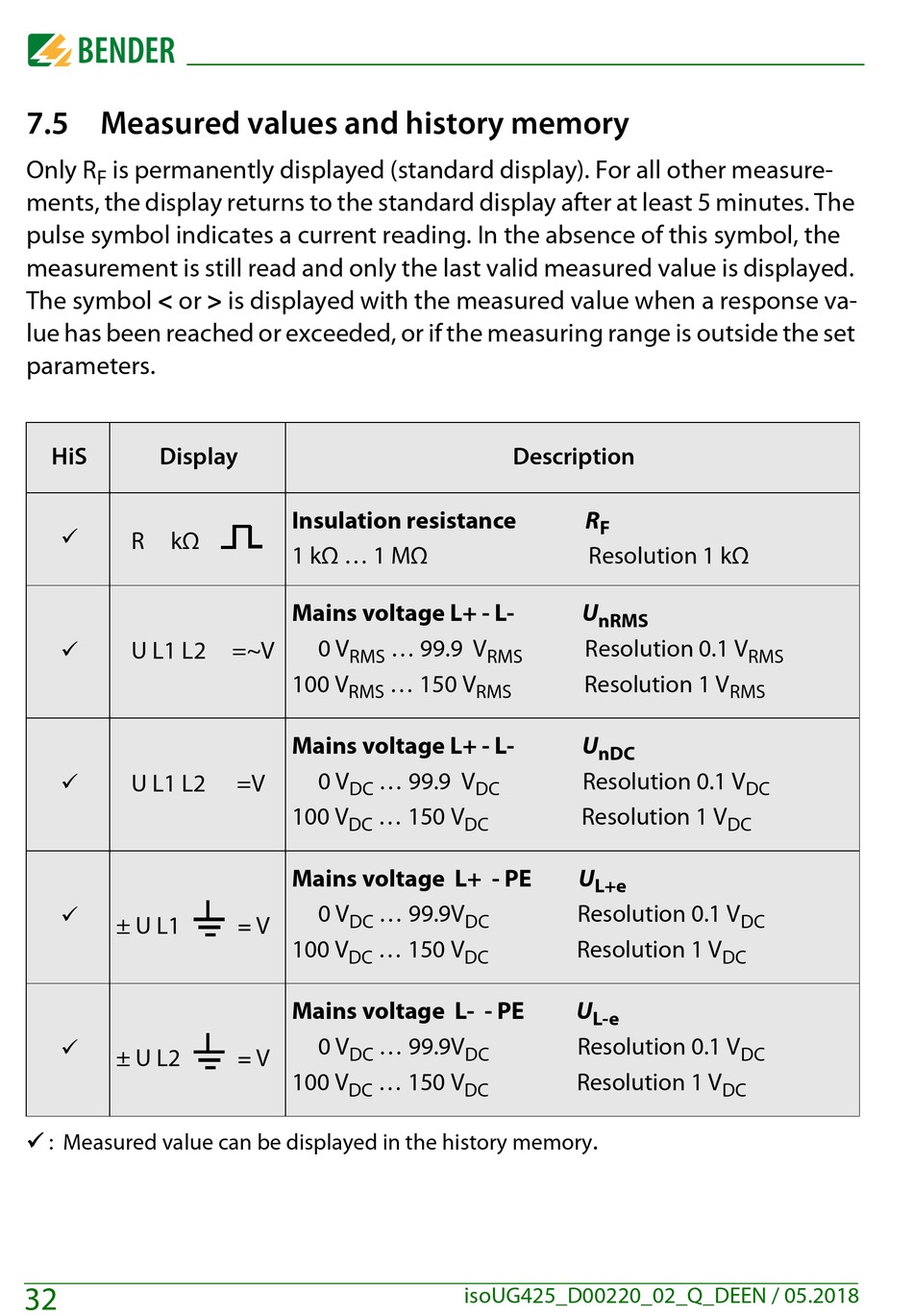

7.5 Measured values and history memory
Only R is permanently displayed (standard display). For all other measure-
F
ments, the display returns to the standard display after at least 5 minutes. The
pulse symbol indicates a current reading. In the absence of this symbol, the
measurement is still read and only the last valid measured value is displayed.
The symbol < or > is displayed with the measured value when a response va-
lue has been reached or exceeded, or if the measuring range is outside the set
parameters.
HiS Display

R kΩ
U L1 L2

 U L1 L2

± U L1

± U L2
 : Measured value can be displayed in the history memory
32
Insulation resistance
1 kΩ ... 1 MΩ
Mains voltage L+ - L-
0 V ... 99.9 V
=~V
RMS
100 V ... 150 V
RMS
Mains voltage L+ - L-
0 V ... 99.9 V
=V
DC
100 V ... 150 V
DC
Mains voltage L+ - PE
0 V ... 99.9V
DC
V
=
100 V ... 150 V
DC
Mains voltage L- - PE
0 V ... 99.9V
DC
V
=
100 V ... 150 V
DC
Description
R
F
Resolution 1 kΩ
U
nRMS
Resolution 0.1 V
RMS
Resolution 1 V
RMS
U
nDC
Resolution 0.1 V
DC
Resolution 1 V
DC
U
L+e
Resolution 0.1 V
DC
Resolution 1 V
DC
U
L-e
Resolution 0.1 V
DC
Resolution 1 V
DC
.
