5.2

How it works

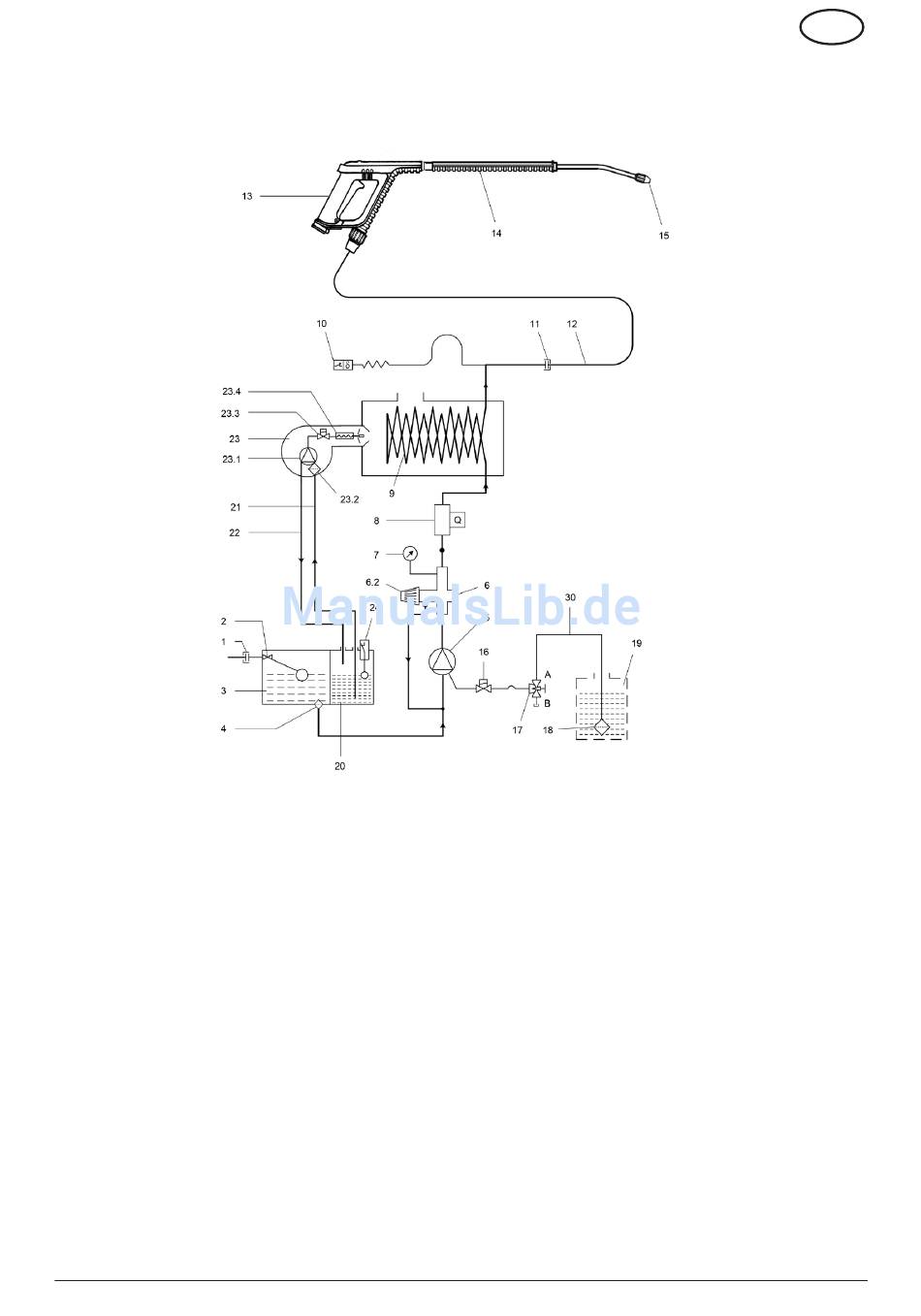

5.2.1 Functional diagram
1 Water supply
2 Float valve
3 Water inlet tank
4 Water filter
5 High-pressure pump
6 Overflow safety valve
7 Pressure gauge
8 Flow monitor
9 Heating coil
10 Regulating thermostat
11 High pressure connection
12 High pressure hose
13 Spray gun
14 Spray lance
15 Spray nozzle
16 Solenoid valve, detergent
17 Dosing valve, detergent
18 Detergent filter
19 Detergent tank
20 Fuel oil tank
21 Oil suction pipe
22 Oil return pipe
23 Oil burner
23.1 Fuel oil pump
23.2 Fuel oil filter
23.3 Fuel oil solenoid valve
23.4 Oil preheater
24 Fuel oil level gauge
24.1 Fuel oil level signal lamp
25 Fuel oil input filter
30 Suction hose, detergent
32 Connecting cable
33 ON-/OFF motor protective switch
34 Exhaust gas outlet
35 Support for detergent tank
