b) Checking the Linkage Rods at the Ailerons

The linkages of the ailerons are pre-installed ex works (1). Also check if the rudder horns of the linkage rods are in the
outer position of the rudder horns (2).
In the neutral position of aileron trimming and control lever, the ailerons need to be in the neutral position as well and
end flush (3) with the rear wing edge. If this is not the case, the ailerons must be adjusted by twisting the clevises in
or out.
The connection of the aileron servos is described in the following chapter „Mounting the Wing". The correct function is
explained in chapter „Checking the Control Functions".

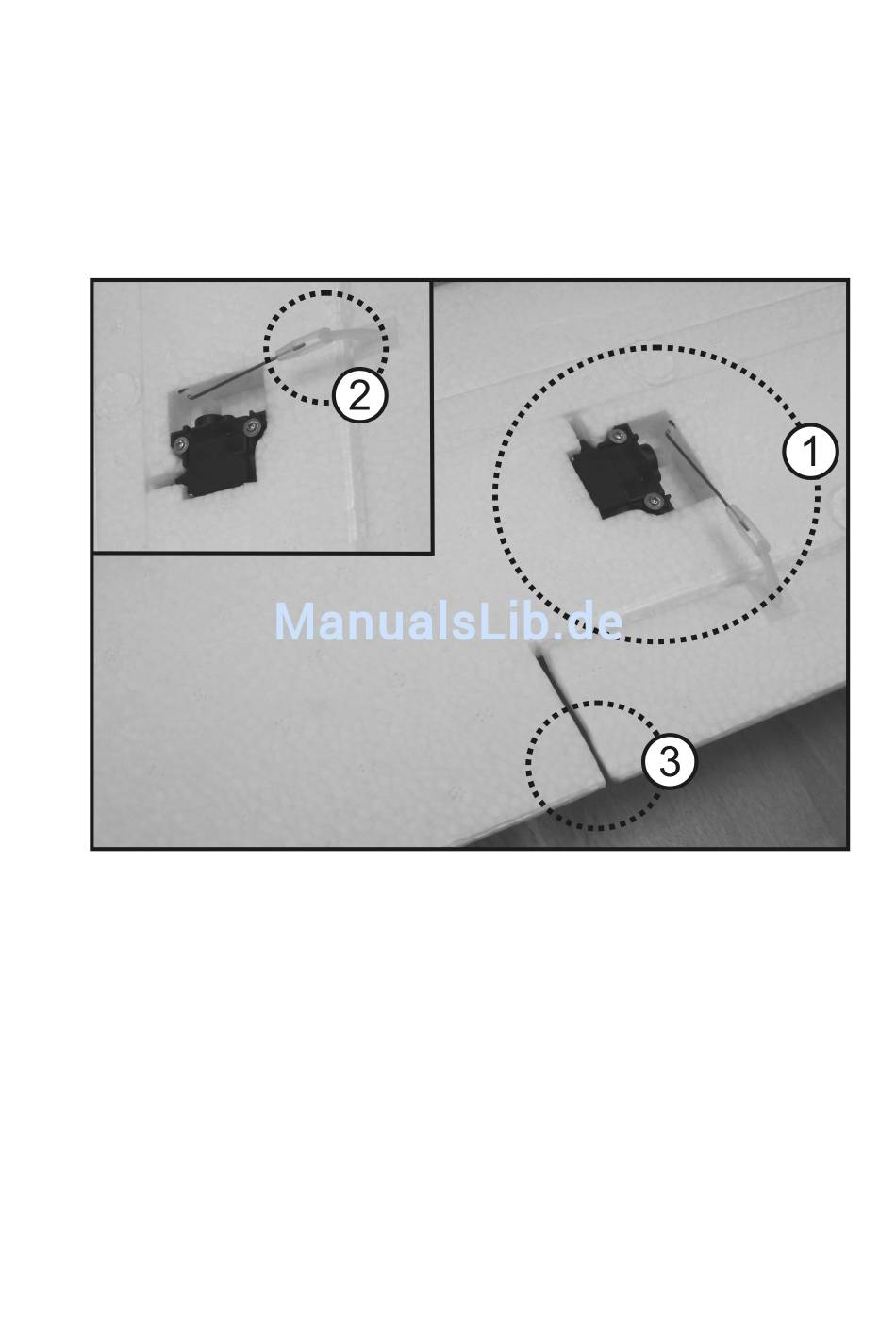

Figure 3
38
