Mounting instruction

Changing V-adaptor to T-adaptor on Stingray frame
Follow the instruction below to change V-adaptor to T-adaptor on Stingray frame so
that an x:panda or Panda Futura seat can be used on the frame.

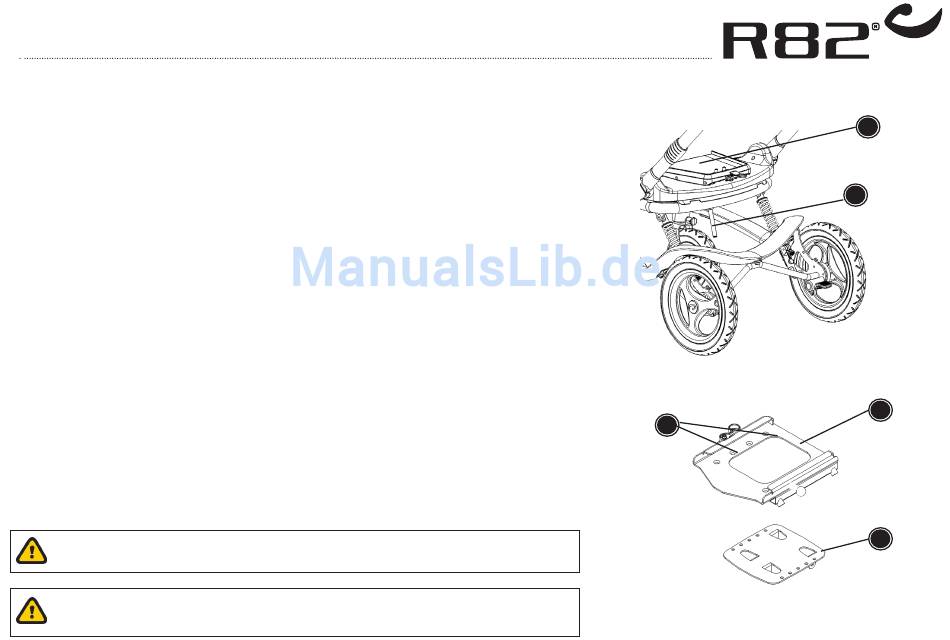

1. Tilt the adaptor (A) and remove the six circlips in the bottom of the adaptor.
2. Remove mounting rods and bushes - the front mounting rod with matching two
bushes and two circlips are to be used again when mounting the new adaptor -
the rest are no longer to be used.
3. Mount new adaptor plate (B) on the frame: Use the long mounting rod from the kit
at the rear end of the adaptor plate and remember the nylon washers between the
adaptor plate and the hinges. Mount the front hinge with the saved components
mentioned under item no 2.
4. Mount the T-frame (C) on the adaptor plate (B) from the top with enclosed 4 bolts
by fastening with a washer and a lock nut beneath the adaptor plate. It is impor-
tant that the rear end of the T-frame follows the rear end of the adaptor - please
use the holes (D) (in both sides).
5. The angle adjustment bush is clipped to the spring stopper (E) on the piston rod at
the bottom.
Should only be performed by trained technician.
Any adjustments and addition of accessories must be placed and fitted
correctly and checked before every use.
