FRont anD baCK LayoUt

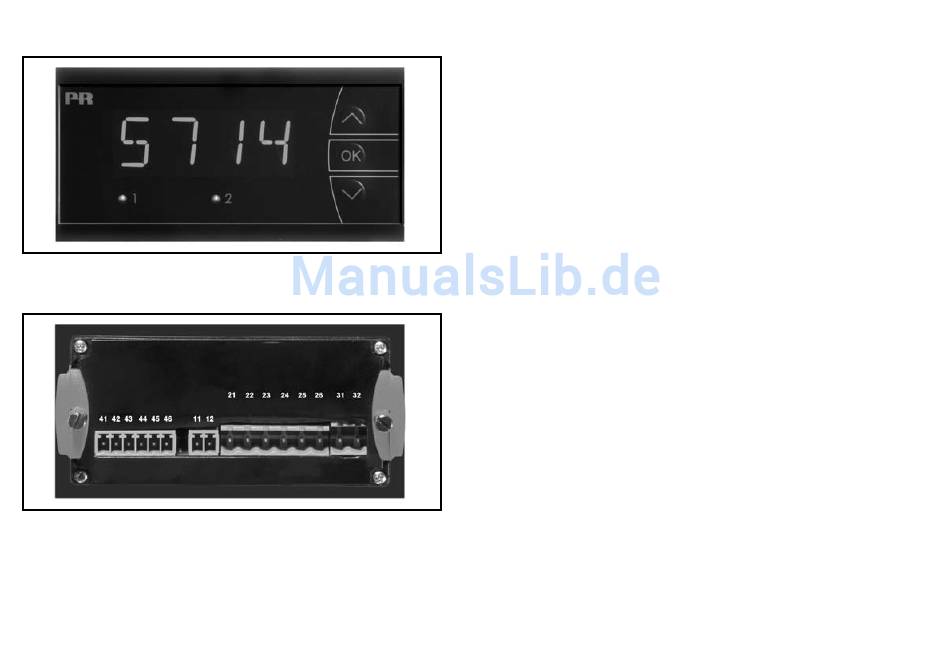

Picture 1: Front of PReview 5714.
Picture 2: Back of PReview 5714.
28
PRogRammabLE LED InDICatoR
PREvIEw 5714
• 4-digit 14-segment LED indicator
• Input for mA, V, potentiometer, RTD and TC
• 2 relays and analogue output
• Universal voltage supply
• Front key programmable
application:
• Display for digital readout of current, voltage, temperature or potentiometer
signals.
• Process control with 2 pairs of potential-free relays and / or analogue output.
• For local readout in extremely wet atmospheres with a specially designed
splash-proof cover.

technical characteristics:

• 4-digit LED indicator with 13.8 mm 14-segment characters. Max. display
read out -1999...9999 with programmable decimal point, relay ON / OFF indi-
cation.
• All operational parameters can be adjusted to any application by use of the
front keys.
• PReview 5714 is available fully-configured acc. to specifications ready for
process control and visualisation.
• Help texts in eight languages can be selected via a menu item.
• In versions with relay outputs the user can minimise the installation test time
by activating / deactivating each relay independently of the input signal.

mounting:

• To be mounted in front panel. The included rubber packing must be mounted
between the panel cutout hole and the display front to obtain a protection
degree of IP65 (NEMA 4X). For extra protection in extreme environments,
PReview 5714 can be delivered with a speially designed splash-proof cover
as accessory.
