HOW TO ADJUST DIPSWITCHES
AND DISPLAY OF CONNEXIONS ON
SYSTEM 5500

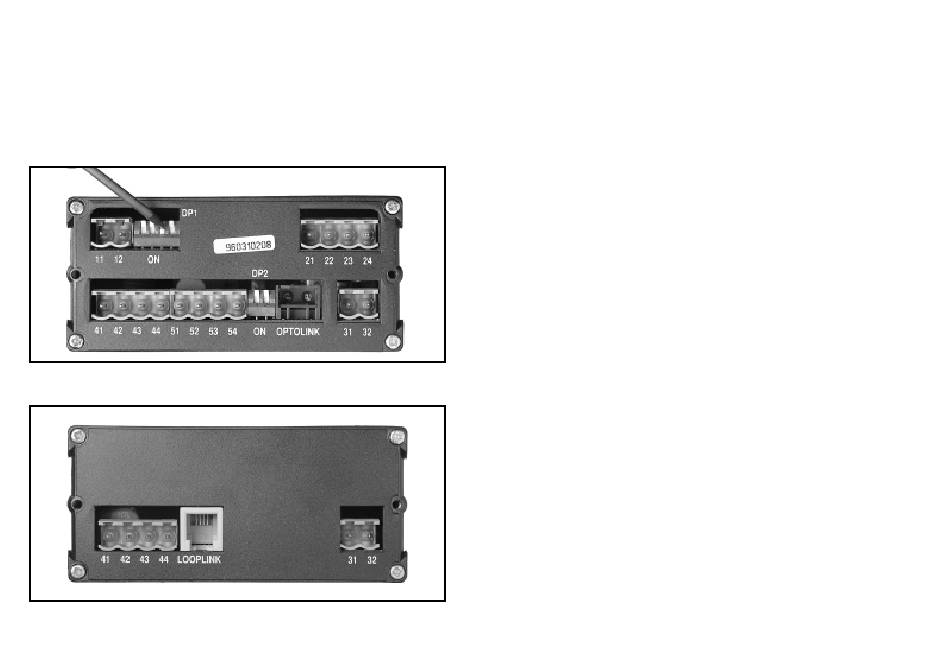

Picture 1 shows how to adjust the dipswitch configuration. Also, the connexion
to Opto Link on the 5511 module is shown.
Picture 2 shows the connector to the programming unit Loop Link 5905.
Picture 1: Adjustment of dipswitches and display of connexions.
Picture 2: Loop Link connector to the programming unit 5905.
20
PROGRAMMABLE LCD/LED
INDICATOR 5515
4-digit LCD/LED indicator
Programmable via PC
Galvanically isolated 3.75 kVAC
Scaling via function keys in front
Current / voltage or temperature input
IP65 enclosure from front

GENERAL:

The indicator 5515 is used for digital readout of current / voltage or temperature
signals.
The indicator is configured from factory acc. to specifications or the user can do
the configuration himself by means of the configuration kit 5905 and a PC. The
indicator with a unipolar current and voltage input can be programmed up to 100
mA and 250 VDC. This indicator contains a transmitter supply.
If an indicator with a temperature input is chosen, signals from standard Pt100
and thermocouples and mV signals can be measured.
With the front-operated keys it is possible to scale the display readout and the
placing of decimal points if this function has been chosen actively in the software.
The indicator is galvanically separated which means that both grounded and
floating signals can be measured.
INPUT TYPES FOR 5515 A1/B1:
Thermocouple input (TC) for standard thermocouples in the temperature ranges
acc. to the standards IEC 584, DIN 43710 or ASTM E988-90. The CJC compen-
sation is implemented with a Pt100 sensor in the terminal (option - type 5914),
external Pt100 sensor/Ni100 in 2-wire connexion or fixed CJC (thermostat box).
Unipolar mV input for DC voltage signals.
RTD input for Pt100/Ni100 in temperature range acc. to IEC 751 or DIN 43760
standards. Via the PReset program the cable resistance can be measured in a
2-wire connexion.
