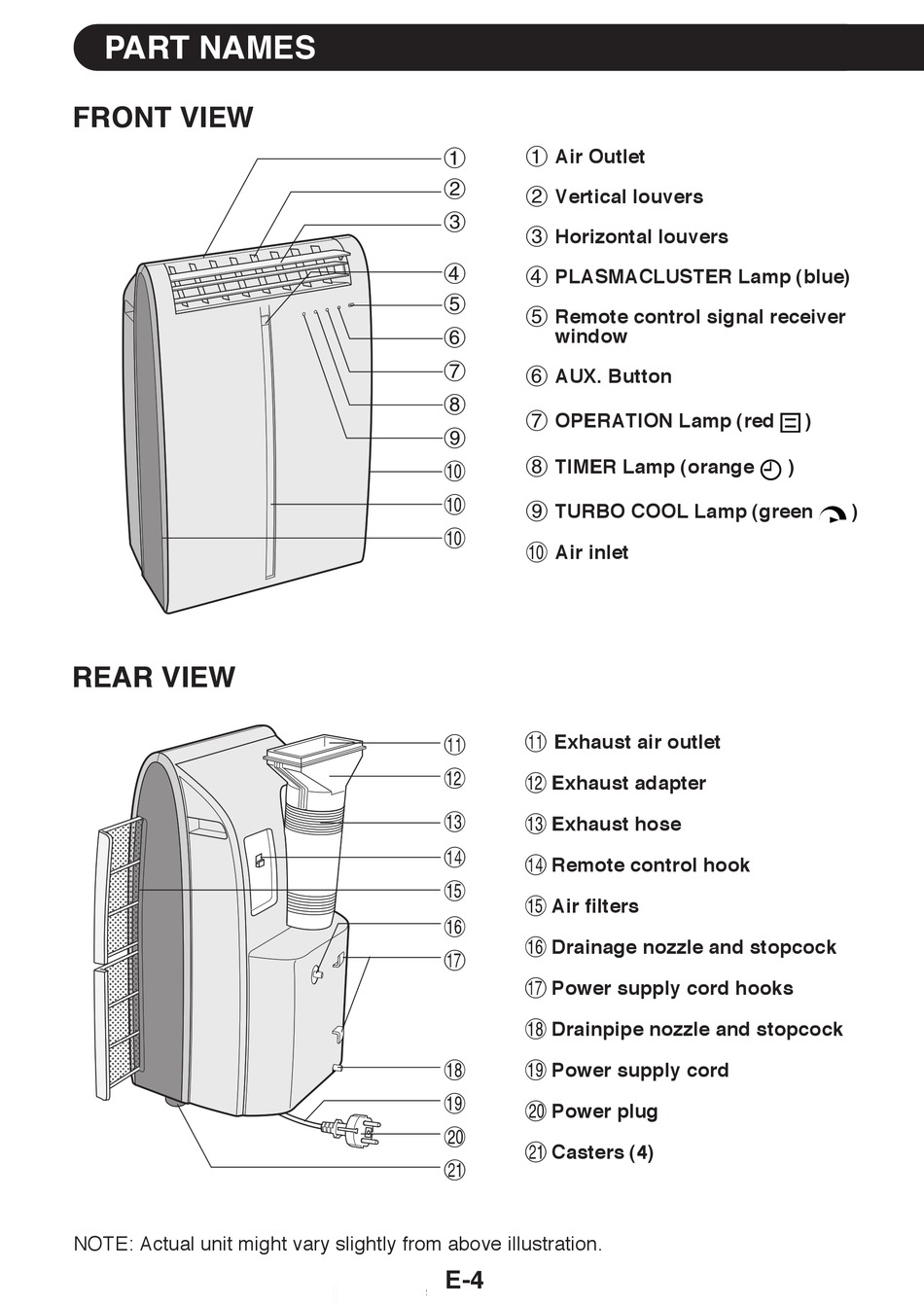

PART NAMES

FRONT VIEW

REAR VIEW

NOTE: Actual unit might vary slightly from above illustration.
1 Air Outlet
1
2
2 Vertical louvers
3
3 Horizontal louvers
4
4 PLASMACLUSTER Lamp (blue)
5
5 Remote control signal receiver
6 window
7
6 AUX. Button
8
7 OPERATION Lamp (red
9
8 TIMER Lamp (orange
0
0
9 TURBO COOL Lamp (green
0
0 Air inlet
q Exhaust air outlet
q
w
w Exhaust adapter
e
e Exhaust hose
r
r Remote control hook
t
t Air filters
y
y Drainage nozzle and stopcock
u
u Power supply cord hooks
i Drainpipe nozzle and stopcock
i o Power supply cord
o
p Power plug
p
a Casters (4)
a
E-4
)
)
)
