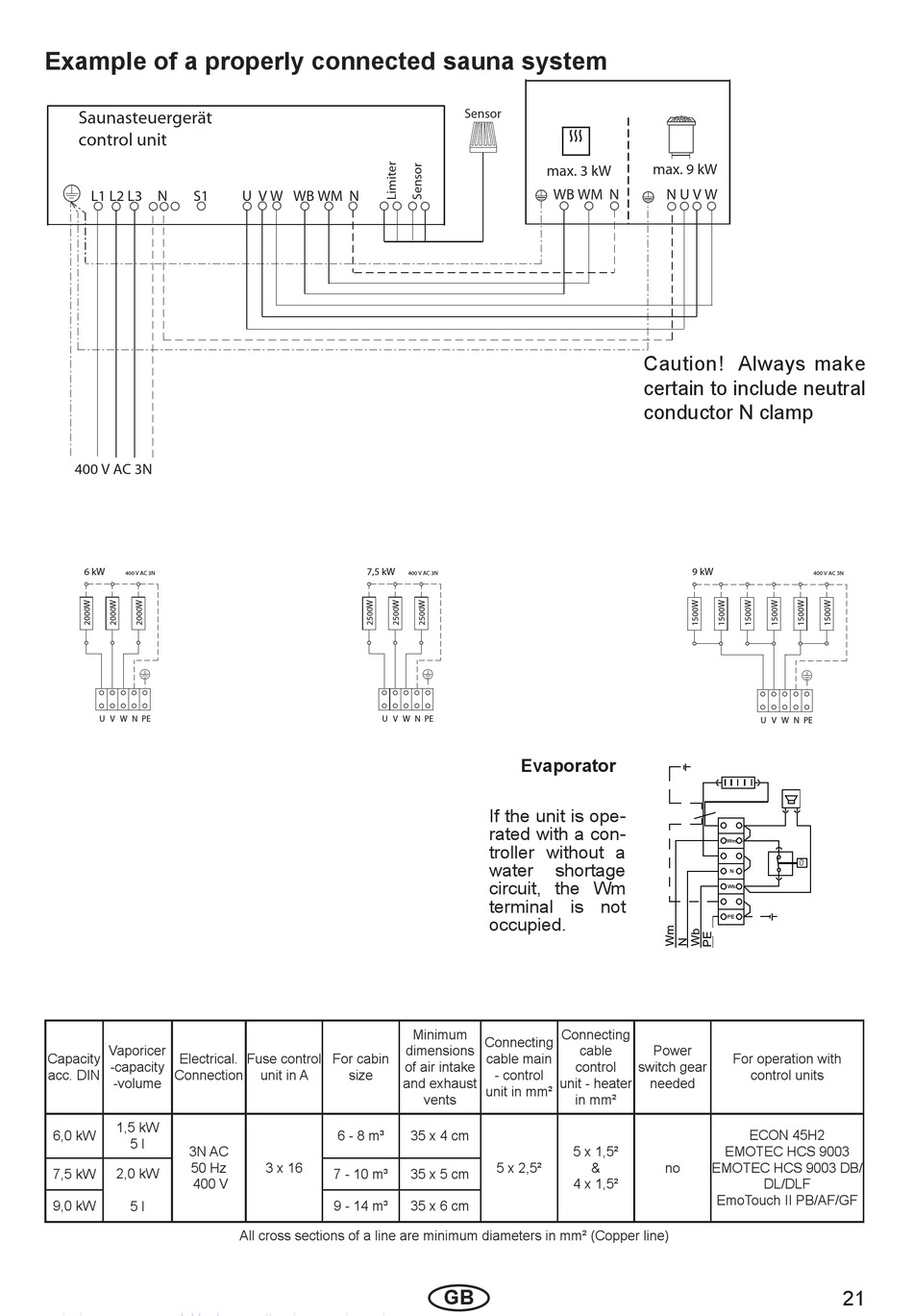

Example of a properly connected sauna system

Saunasteuergerät
control unit
L1 L2 L3 N S1
400 V AC 3N
6 kW
400 V AC 3N
U V W N PE
Vaporicer
Capacity Electrical.
-capacity
acc. DIN Connection
-volume
1,5 kW
6,0 kW
5 l
3N AC
50 Hz
2,0 kW
7,5 kW
400 V
9,0 kW 5 l
U V W WB WM N
7,5 kW
400 V AC 3N
U V W N PE
dimensions
Fuse control For cabin
of air intake
unit in A size
and exhaust
6 - 8 m³ 35 x 4 cm
3 x 16
7 - 10 m³ 35 x 5 cm
9 - 14 m³ 35 x 6 cm
All cross sections of a line are minimum diameters in mm² (Copper line)
Sensor
max. 3 kW
WB WM N
Evaporator
If the unit is ope-
rated with a con-
troller without a
water shortage
circuit, the Wm
terminal is not
occupied.
Minimum Connecting
Connecting
cable
cable main
control
- control
unit - heater
unit in mm²
vents in mm²
5 x 1,5²
5 x 2,5²
4 x 1,5²
GB
max. 9 kW
N U V W
Caution! Always make
certain to include neutral
conductor N clamp
9 kW
U V W N
Wm
N
Wb
PE
Power
For operation with
switch gear
control units
needed
ECON 45H2
EMOTEC HCS 9003
& no EMOTEC HCS 9003 DB/
EmoTouch II PB/AF/GF
400 V AC 3N
PE

DL/DLF
