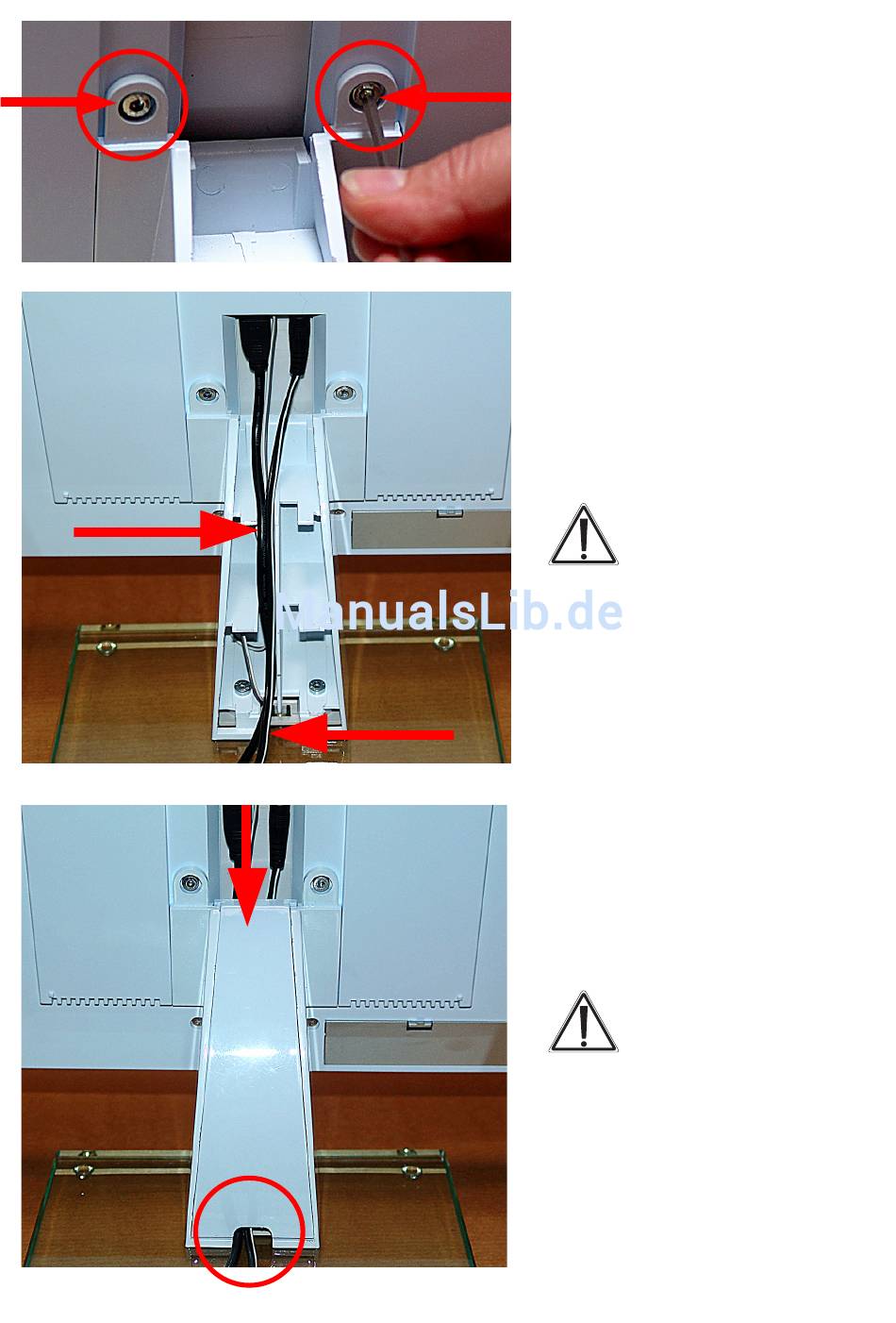

5. Use the hexagon wrench and
two hexagon socket screws
supplied to screw the base sup-
port onto the weather station.
6. This is how the cables are con-
nected, laid and routed in the
base support. Make sure that the
cables really do lie in the middle
as shown; otherwise, they may
prevent the cover from being
latched on later.
Caution!
The lighting cable for
the stand and the USB
cable can only be inserted in one
direction. Do not use force to
insert them!
Surplus lighting cable can be
stored in a chamber within the
support.
7. Now attach the cover to the
base support:
lay the cover flat and insert
it into the receptacles on the
support (refer also to 1), ease it
up and latch it in at the top.
Caution!
There must not be any
resistance when you
ease the cover up; if there is,
either the cover is not inserted
properly at the bottom or the
cables are not lying in the duct.
You must be able to see the
cables protruding properly from
the bottom.
