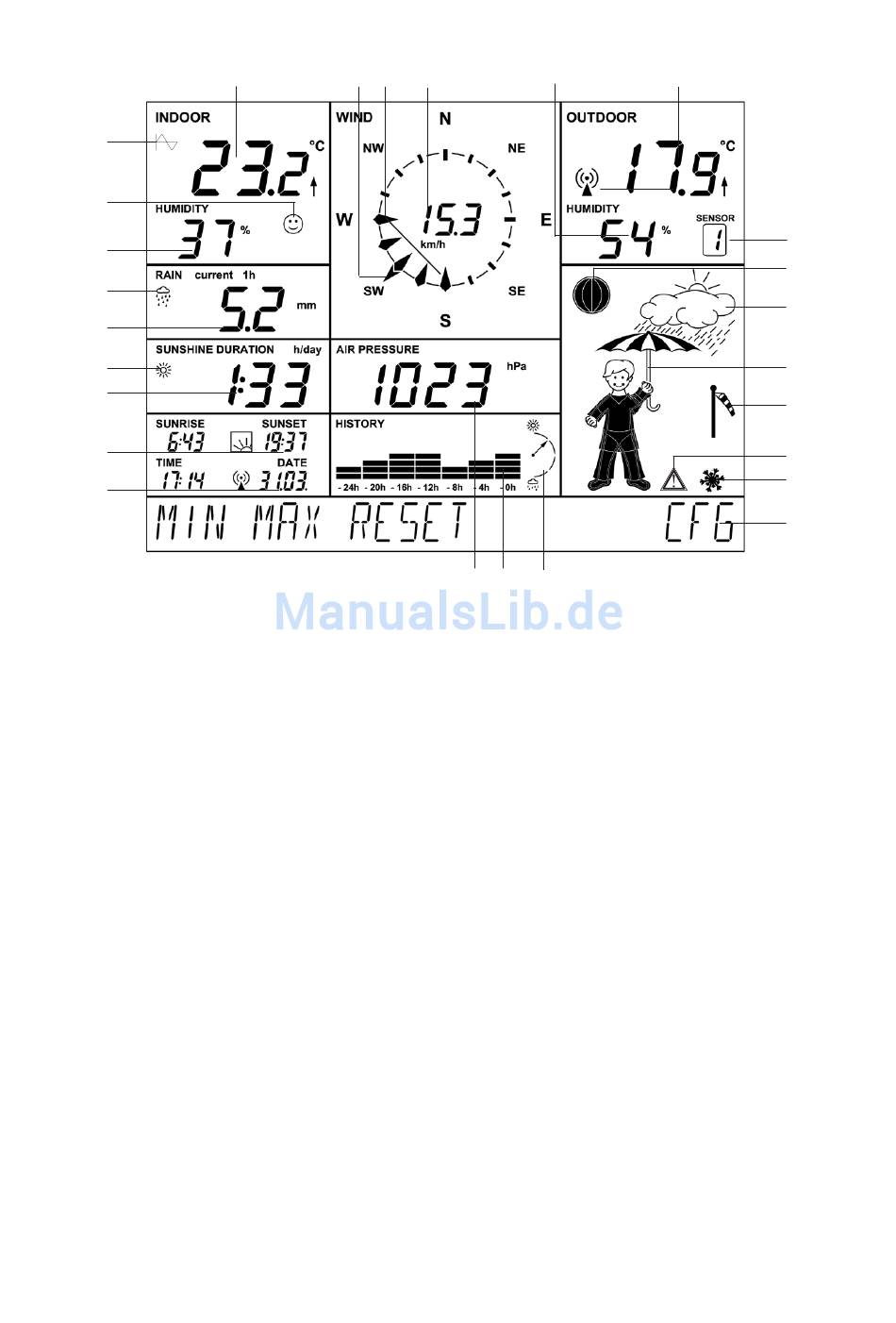

Quick overview of the display fields
26
25
24
23
22
21
20
19
18
1. Current inside temperature and temperature trend
2. Current wind direction indicator (main wind direction)
3. Fluctuation range indicator if wind is not constant
4. Wind velocity indicator
5. Current humidity of the selected outdoor sensor
6. Current temperature of the selected outdoor sensor with temperature trend and reception
indicator
7. Indicates the currently selected outdoor sensor (if the HM-WDS100-C6-O (OC3) combi-sensor
is selected, nothing is displayed here)
8. Moon phase indicator
9. Weather forecast indicator (sunny, bright, cloudy, rainy)
10. Animated "Weather Joe" multifunctional weather indicator
11. Wind velocity indicator (light, moderate, strong)
12. Warning of extreme weather
13. Frost warning
14. Menu bar
15. Barometric pressure trend indicator: increasing sharply, increasing slowly, constant, falling
slowly, falling sharply; for a more detailed explanation, refer to the definitions of terms
16. History indicator, relating to the current value (refer also to 26)
17. Current barometric pressure indicator
18. Time and date indicator, reception indicator in the case of DCF-77-reception
19. Indicates sunrise and sunset times
20. Hours of sunshine indicator
21. Sun symbol when the sun is currently shining, otherwise a cloud symbol is displayed here
22. Rainfall indicator
23. Indicator for the onset of rain
24. Current indoor humidity
25. Comfort zone indicator shows a pleasant/unpleasant climate
26. Symbol appears in the field for the weather factor currently activated for the history
indicator (inside or outside temperature); if the symbol does not appear in either
field, the barometric pressure history is currently being displayed.
