Preparing for operation

The weather station is operated via the power supply unit supplied with the product.
Four Mignon cell batteries 1.5 V, alkaline type LR6 are used for standby operation.
However, in this case only certain functions of the weather station will be available.

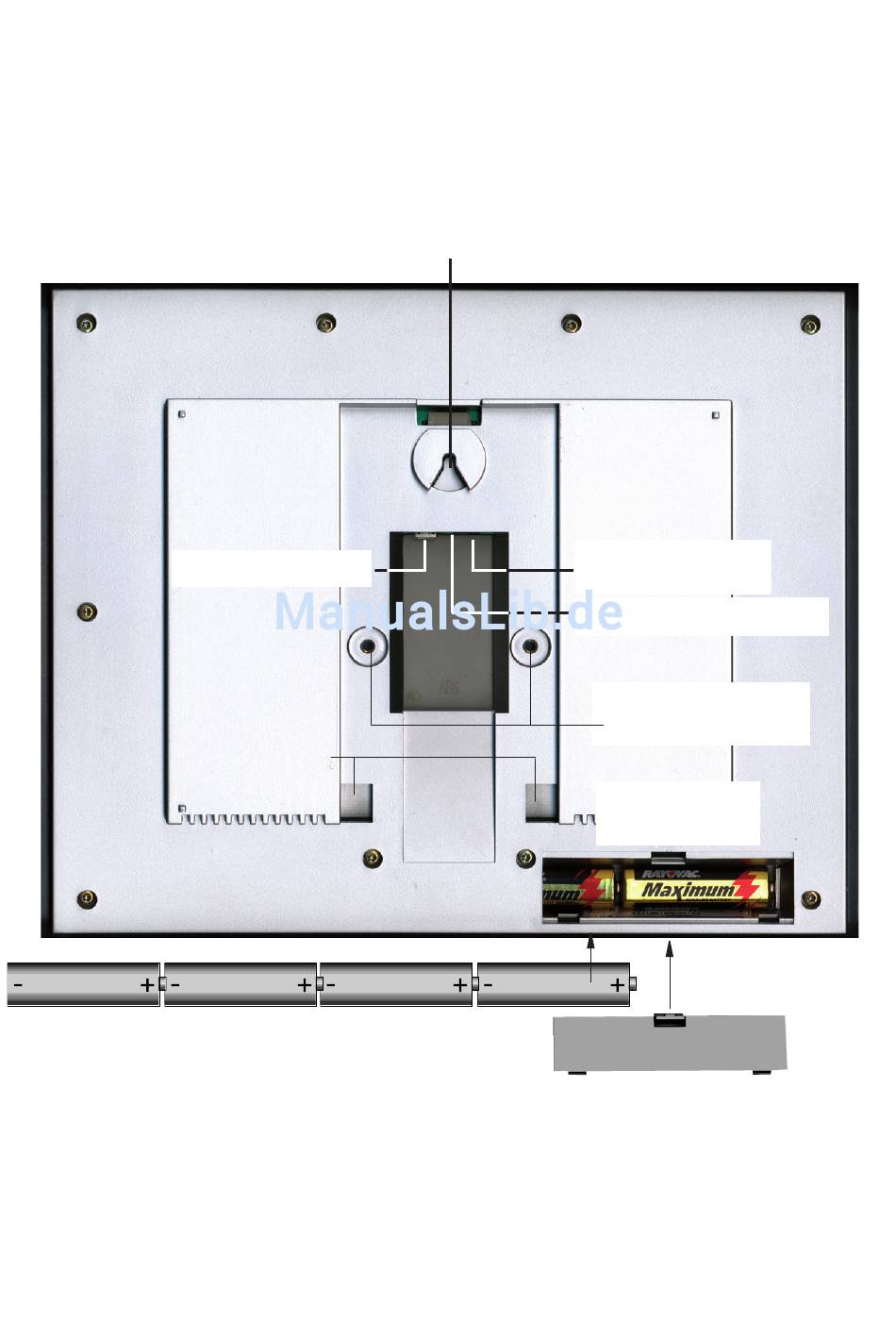

The photo below shows the rear of the station with the battery compartment, correct
battery polarity, base support mounting points and hanging point.
USB interface
Notches for
base support
4 x LR6/AA/Mignon

Connecting the power supply unit

First insert the round DC-plug of the power supply unit supplied with the product
into the corresponding socket on the rear of the device, then plug the power supply
unit into a 230 V main socket. If any batteries have been inserted into the battery
compartment, this will deactivate them.
Attachment eye for hanging the device on a wall
Socket for power
supply unit
Port for stand lighting
Screw thread for
base support
Battery
compartment
Battery compartment cover
47
