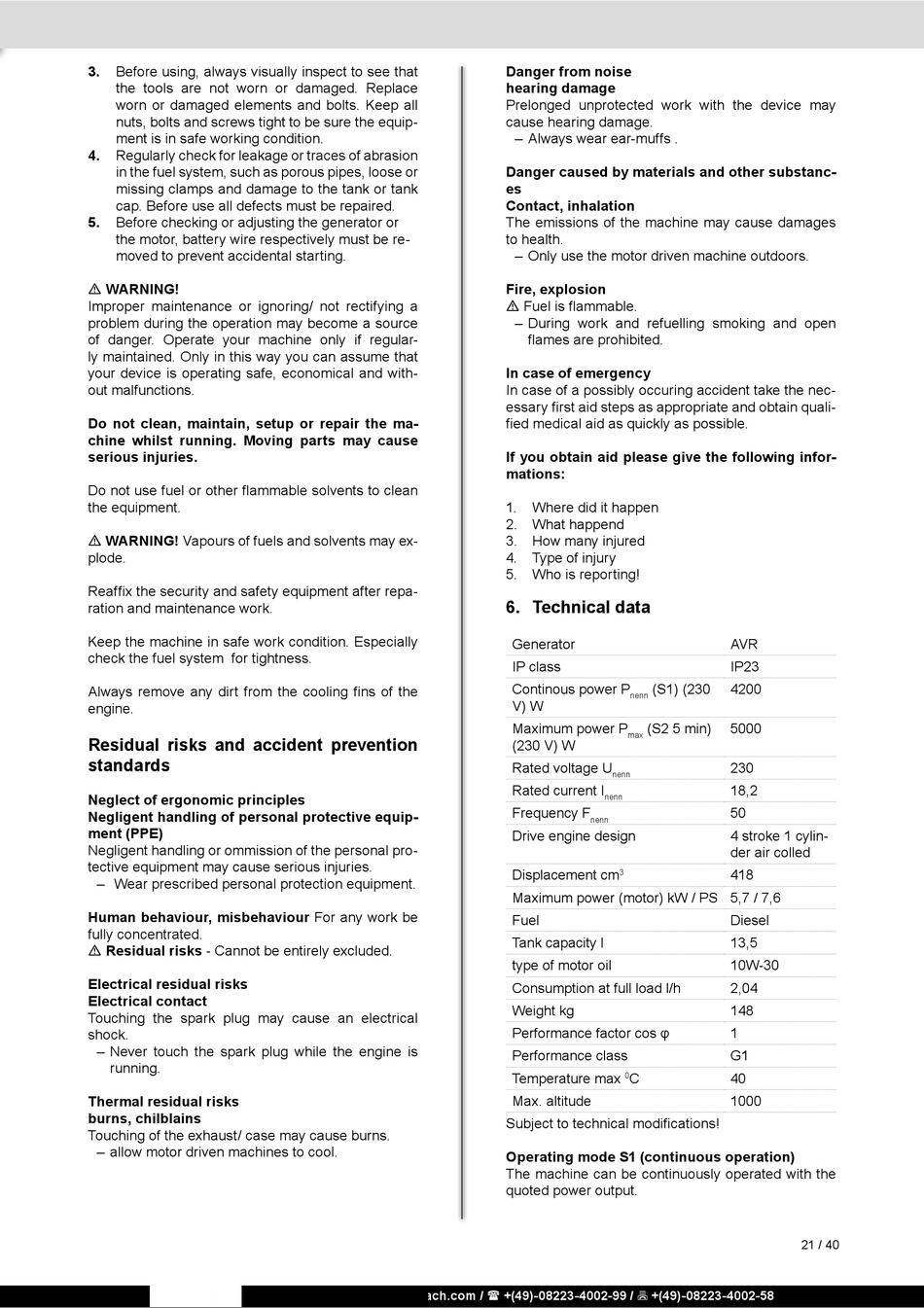

Technical Data - Scheppach SG5100D Originalbetriebsanleitung

3. Before using, always visually inspect to see that
the tools are not worn or damaged. Replace
worn or damaged elements and bolts. Keep all
nuts, bolts and screws tight to be sure the equip-
ment is in safe working condition.
4.
Regularly check for leakage or traces of abrasion
in the fuel system, such as porous pipes, loose or
missing clamps and damage to the tank or tank
cap. Before use all defects must be repaired.
5. Before checking or adjusting the generator or
the motor, battery wire respectively must be re-
moved to prevent accidental starting.
m WARNING!
Improper maintenance or ignoring/ not rectifying a
problem during the operation may become a source
of danger. Operate your machine only if regular-
ly maintained. Only in this way you can assume that
your device is operating safe, economical and with-
out malfunctions.
Do not clean, maintain, setup or repair the ma-
chine whilst running. Moving parts may cause
serious injuries.
Do not use fuel or other flammable solvents to clean
the equipment.
m WARNING! Vapours of fuels and solvents may ex-
plode.
Reaffix the security and safety equipment after repa-
ration and maintenance work.
Keep the machine in safe work condition. Especially
check the fuel system for tightness.
Always remove any dirt from the cooling fins of the
engine.
Residual risks and accident prevention
standards
Neglect of ergonomic principles
Negligent handling of personal protective equip-
ment (PPE)
Negligent handling or ommission of the personal pro-
tective equipment may cause serious injuries.
– Wear prescribed personal protection equipment.
Human behaviour, misbehaviour For any work be
fully concentrated.
m Residual risks - Cannot be entirely excluded.
Electrical residual risks
Electrical contact
Touching the spark plug may cause an electrical
shock.
– Never touch the spark plug while the engine is
running.
Thermal residual risks
burns, chilblains
Touching of the exhaust/ case may cause burns.
– allow motor driven machines to cool.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Danger from noise
hearing damage
Prelonged unprotected work with the device may
cause hearing damage.
– Always wear ear-muffs .
Danger caused by materials and other substanc-
es
Contact, inhalation
The emissions of the machine may cause damages
to health.
– Only use the motor driven machine outdoors.
Fire, explosion
m Fuel is flammable.
– During work and refuelling smoking and open
flames are prohibited.
In case of emergency
In case of a possibly occuring accident take the nec-
essary first aid steps as appropriate and obtain quali-
fied medical aid as quickly as possible.
If you obtain aid please give the following infor-
mations:
1. Where did it happen
2. What happend
3. How many injured
4. Type of injury
5. Who is reporting!

6. Technical data

Generator
IP class
Continous power P (S1) (230
nenn
V) W
Maximum power P (S2 5 min)
max
(230 V) W
Rated voltage U
nenn
Rated current I
nenn
Frequency F
nenn
Drive engine design
Displacement cm
3
Maximum power (motor) kW / PS 5,7 / 7,6
Fuel
Tank capacity l
type of motor oil
Consumption at full load l/h
Weight kg
Performance factor cos φ
Performance class
Temperature max C
0
Max. altitude
Subject to technical modifications!
Operating mode S1 (continuous operation)
The machine can be continuously operated with the
quoted power output.
AVR
IP23
4200
5000
230
18,2
50
4 stroke 1 cylin-
der air colled
418
Diesel
13,5
10W-30
2,04
148
1
G1
40
1000
