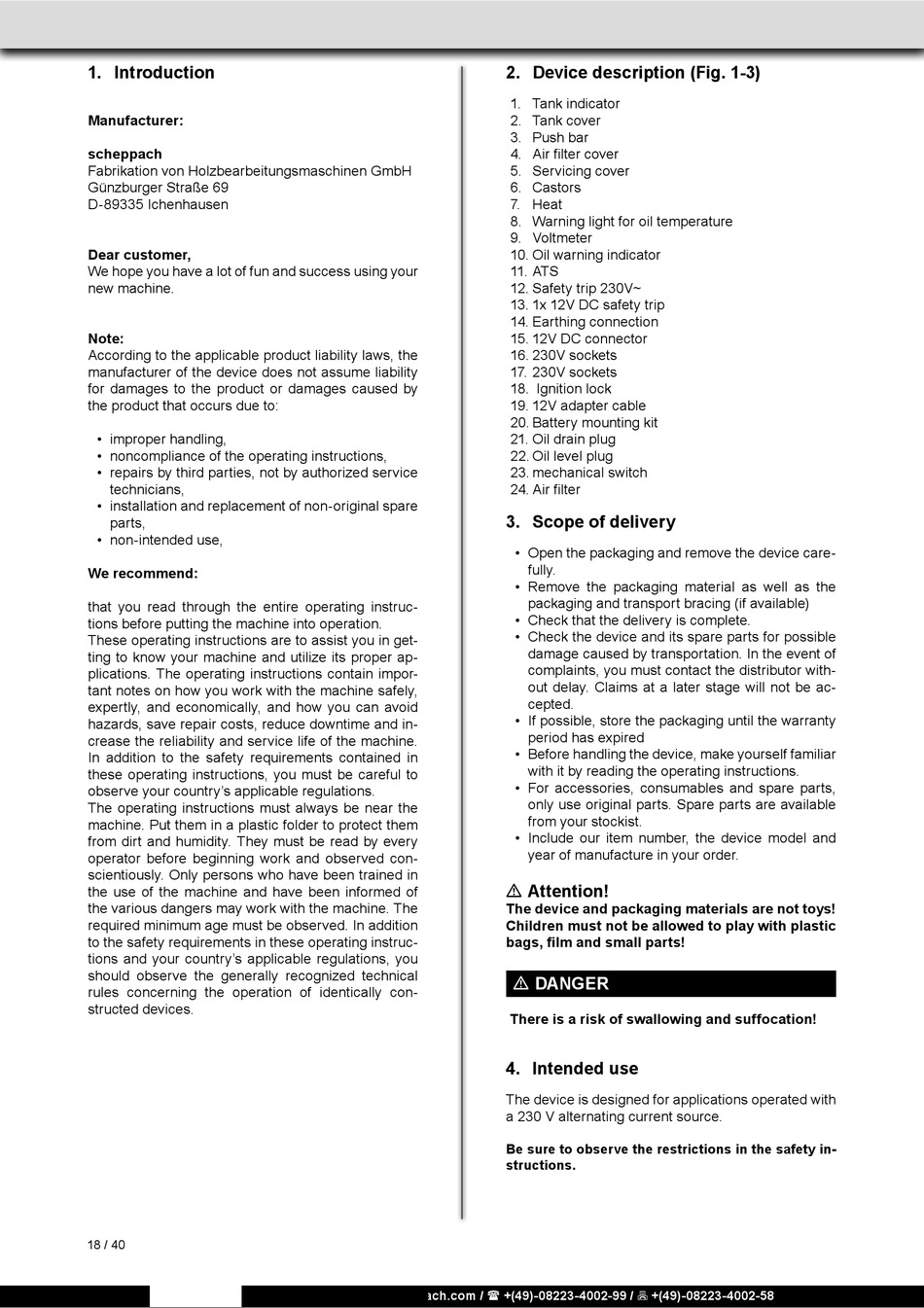

Introduction; Device Description; Scope Of Delivery; Intended Use - Scheppach SG5100D Originalbetriebsanleitung

1. Introduction

Manufacturer:
scheppach
Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear customer,
We hope you have a lot of fun and success using your
new machine.
Note:
According to the applicable product liability laws, the
manufacturer of the device does not assume liability
for damages to the product or damages caused by
the product that occurs due to:
• improper handling,
• noncompliance of the operating instructions,
• repairs by third parties, not by authorized service
technicians,
• installation and replacement of non-original spare
parts,
• non-intended use,
We recommend:
that you read through the entire operating instruc-
tions before putting the machine into operation.
These operating instructions are to assist you in get-
ting to know your machine and utilize its proper ap-
plications. The operating instructions contain impor-
tant notes on how you work with the machine safely,
expertly, and economically, and how you can avoid
hazards, save repair costs, reduce downtime and in-
crease the reliability and service life of the machine.
In addition to the safety requirements contained in
these operating instructions, you must be careful to
observe your country's applicable regulations.
The operating instructions must always be near the
machine. Put them in a plastic folder to protect them
from dirt and humidity. They must be read by every
operator before beginning work and observed con-
scientiously. Only persons who have been trained in
the use of the machine and have been informed of
the various dangers may work with the machine. The
required minimum age must be observed. In addition
to the safety requirements in these operating instruc-
tions and your country's applicable regulations, you
should observe the generally recognized technical
rules concerning the operation of identically con-
structed devices.
18 / 40
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
2. Device description (Fig. 1-3)
1. Tank indicator
2. Tank cover
3. Push bar
4. Air filter cover
5. Servicing cover
6. Castors
7. Heat
8. Warning light for oil temperature
9. Voltmeter
10. Oil warning indicator
11. ATS
12. Safety trip 230V~
13. 1x 12V DC safety trip
14. Earthing connection
15. 12V DC connector
16. 230V sockets
17. 230V sockets
18. Ignition lock
19. 12V adapter cable
20. Battery mounting kit
21. Oil drain plug
22. Oil level plug
23. mechanical switch
24. Air filter

3. Scope of delivery

• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the
packaging and transport bracing (if available)
• Check that the delivery is complete.
• Check the device and its spare parts for possible
damage caused by transportation. In the event of
complaints, you must contact the distributor with-
out delay. Claims at a later stage will not be ac-
cepted.
• If possible, store the packaging until the warranty
period has expired
• Before handling the device, make yourself familiar
with it by reading the operating instructions.
• For accessories, consumables and spare parts,
only use original parts. Spare parts are available
from your stockist.
• Include our item number, the device model and
year of manufacture in your order.
m Attention!
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts!
m DANGER
There is a risk of swallowing and suffocation!

4. Intended use

The device is designed for applications operated with
a 230 V alternating current source.
Be sure to observe the restrictions in the safety in-
structions.
