4.2 Overview

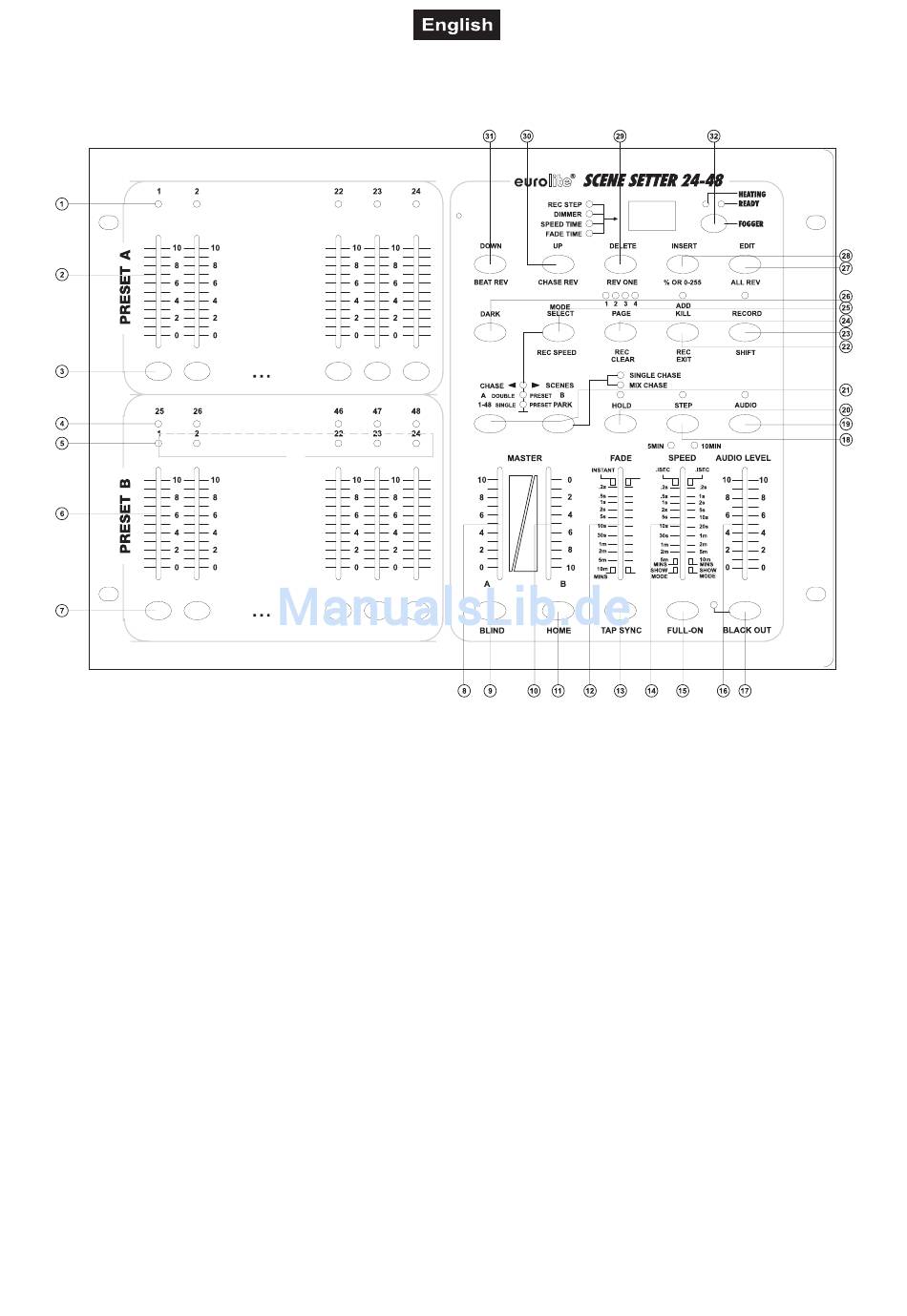

Overview on the control elements
1) PRESET A LEDS
2) CHANNEL SLIDERS 1-24
These sliders will adjust the output of 1 to 24 channel from 0 to 100% or 0 to 255.
3) Flash key 1-24
ress to activate maximum channel output.
4) PRESET B LEDS
5) SCENES LEDS
6) CHANNEL SLIDERS 25-48
These sliders will adjust the output of 25 to 48 channel from 0 to 100% or 0 to 255.
7) Flash key 25-48
Press to activate maximum channel output.
8) MASTER A SLIDER
The slider will adjust the output of preset A.
9) BLIND KEY
In Chase-Scene mode, this key when activated, the output of each channel will be controlled only by
slider or flash key.
10) MASTER B SLIDER
The slider will adjust the output of preset B.
11) HOME KEY
In Chase-Scene mode, this key,when activated, the output of each channel will be come back from
controlled by slider or flash key to controlled by program.
12) FADE TIME SLIDER
Move to adjust fade time.
13) TAP SYNC
In AUTO CHASE ,press it twice to define chasing speed.
14) SPEED SLIDER
Move to adjust chasing speed.
15) FULL ON KEY
When activated ,whole channel output will be maximum and disable BLACK OUT.
