DESCRIPTION OF THE DEVICE
Features
LED Beam Panel with 7 W LEDs
• Equipped with 16 white 7 W LEDs
• 5 or 16 DMX channels selectable
• Each LED can be controlled individually
• Second mounting bracket for different rigging possibilities
• Suitable for pixel mapping applications
• Functions: Built-in programs, dimmer and strobe effect with variable speed, sound-control, Master/Slave
operation
• Dimmer speed (step response) adjustable
• Sound-controlled via built-in microphone
• Adjustable microphone sensitivity via Control Board
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Comfortable addressing and setting via control panel with LC display and four operating buttons
• Switch-mode power supply for operation between 100 and 240 Volts
• Power connection via Neutrik PowerCon jack and included power cable
• Feed-through output allows to power up to 8 devices
• DMX control via every standard DMX controller

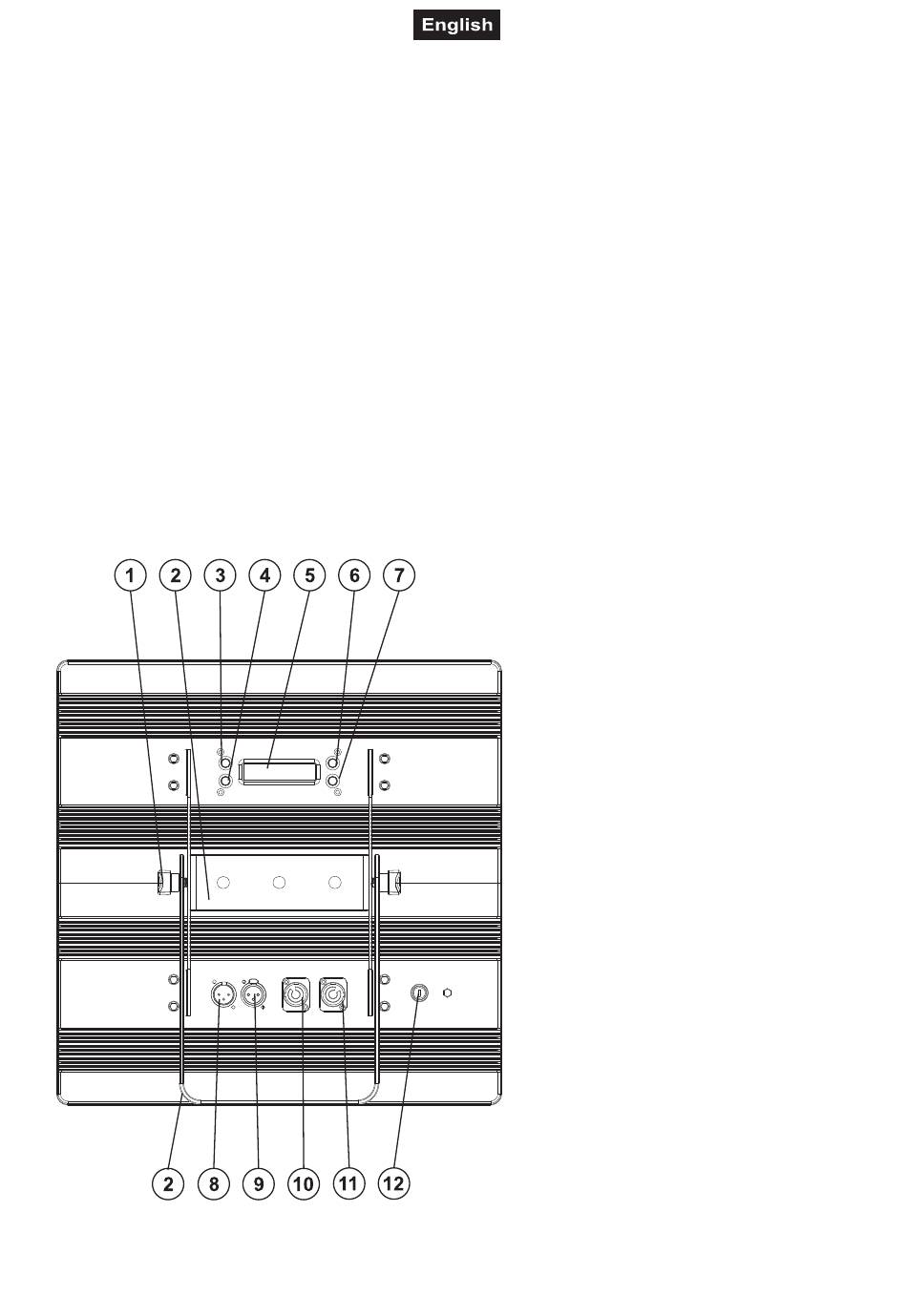

Overview
(1) Fixation screw
(2) Mounting bracket
(3) Mode button
(4) Enter button
(5) Display
(6) Up button
(7) Down button
(8) 3-pin DMX input
(9) 3-pin DMX output
(10) Power input
(11) Power output
(12) Fuseholder
19/28
00079628.DOC, Version 1.0
