4.2.2

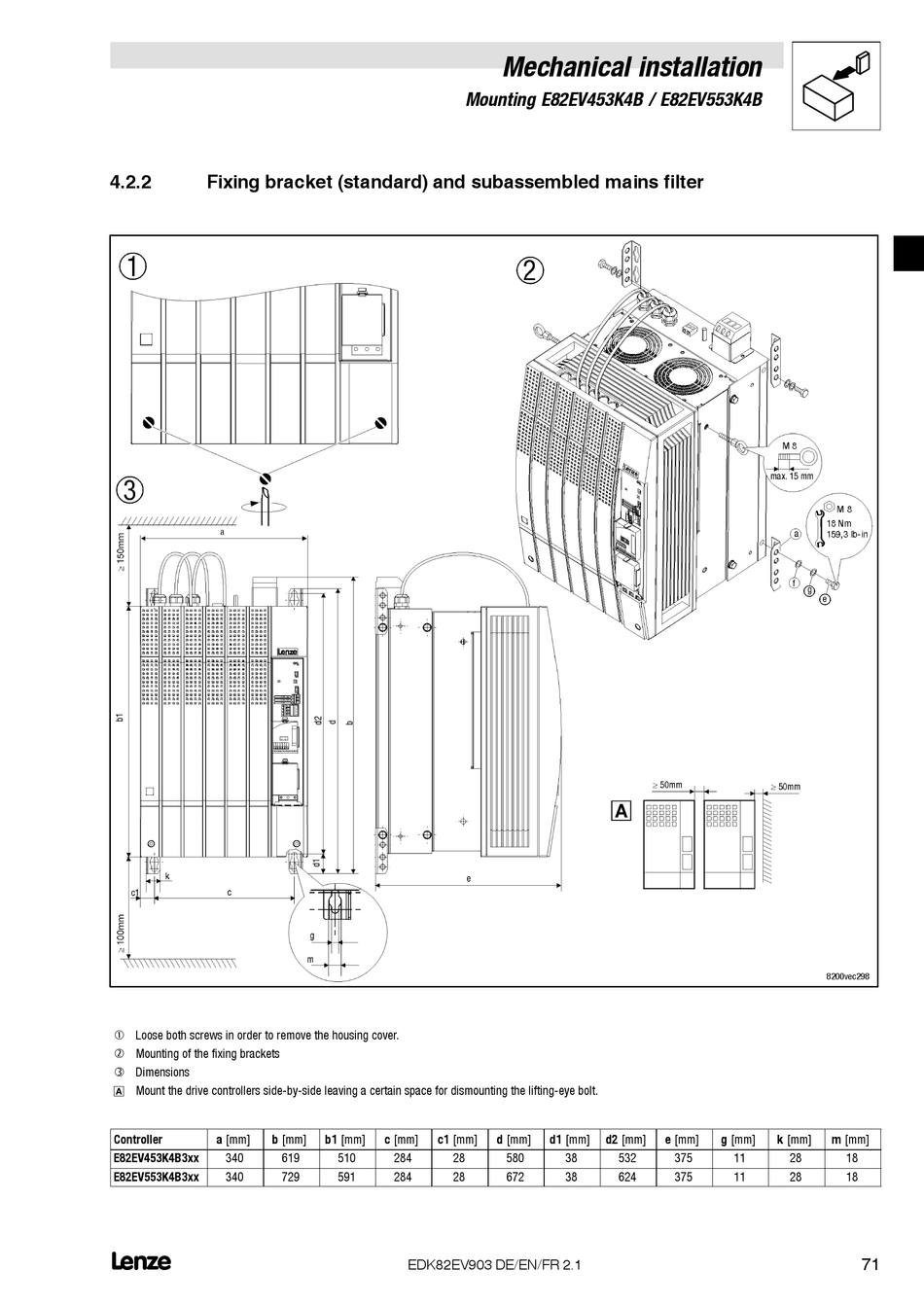

Fixing bracket (standard) and subassembled mains filter

Loose both screws in order to remove the housing cover.
Mounting of the fixing brackets
Dimensions
Mount the drive controllers side-by-side leaving a certain space for dismounting the lifting-eye bolt.

Controller a [mm] b [mm]
E82EV453K4B3xx
340 619
E82EV553K4B3xx 340 729
L
Mounting E82EV453K4B / E82EV553K4B
b1 [mm] c [mm] c1 [mm] d [mm]
510 284 28
591 284 28
EDK82EV903 DE/EN/FR 2.1
Mechanical installation
d1 [mm] d2 [mm] e [mm]
580 38 532 375
672 38 624 375
8200vec298
g [mm] k [mm] m [mm]
11 28 18
11 28 18
71
