Electrical Installation; Mains Connection / Brake Resistor - Lenze 8200 motec Montageanleitung

(
Stop!
Discharge current against earth > 3.5 mA. According to
EN 50178 permanent fixed installation is required. The PE
connection must be carried out in accordance with EN 50178.
X1
1a
8200mot009
0
R = Brake resistor (accessories)
B
³ 450 W (E82MV551/E82MV751)
R
B
³ 200 W (E82MV152/E82MV222)
R
B
L

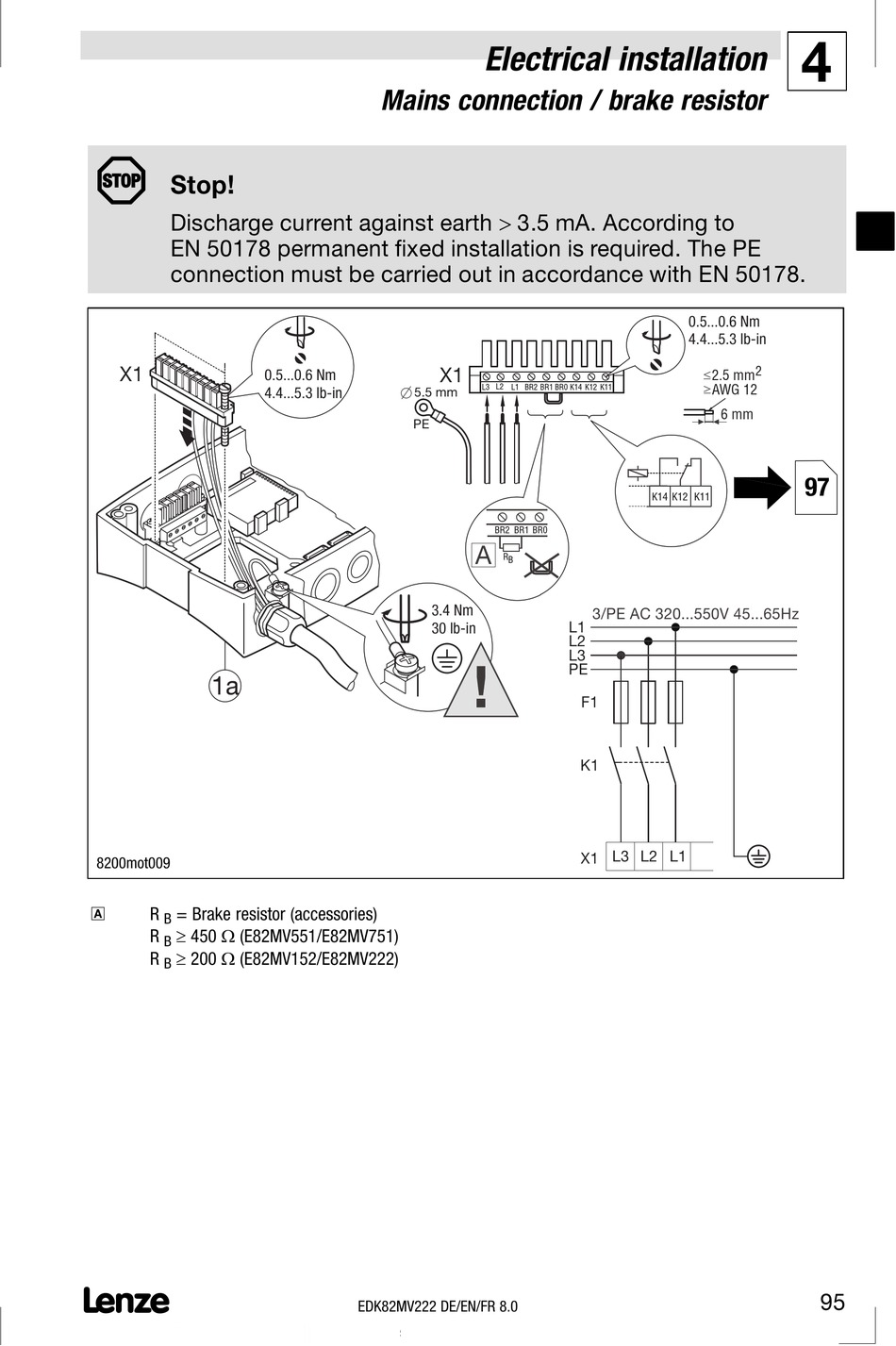

Mains connection / brake resistor

0.5...0.6 Nm
4.4...5.3 lb-in
5.5 mm
PE
Fig. 21
EDK82MV222 DE/EN/FR 8.0

Electrical installation

X1
L3 L2 L1 BR2 BR1 BR0 K14 K12 K11
BR2 BR1 BR0
A
R B
3.4 Nm
3/PE AC 320...550V 45...65Hz
30 lb-in
L1
L2
L3
PE
F1
K1
X1
0.5...0.6 Nm
4.4...5.3 lb-in
2
2.5 mm
AWG 12
6 mm
K14 K12 K11
L3 L2 L1
4
97
95
