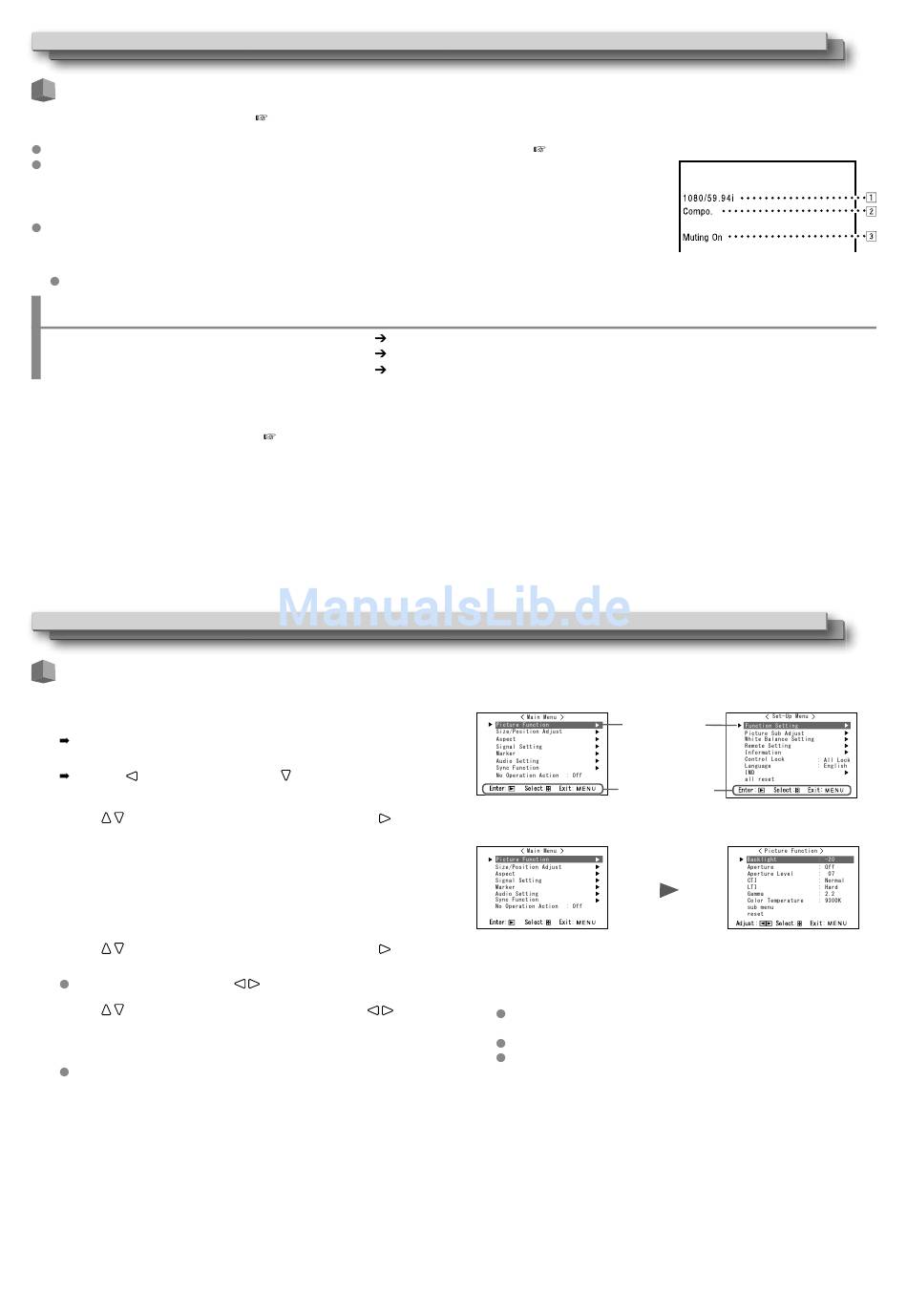

Daily Operations (cont.)
On the Status Display
If you press the INPUT SELECT button (
3 seconds.
Make the setting to display/hide the status in "Status Display" of the "Information" (
When "Status Display" is set to "Auto" or "On," the status below is also displayed in the following cases:
– When you change the input
– When the signal condition of the current input changes
– When you turn on the monitor
When "Status Display" is set to "On," the signal format will remain displayed 3 seconds after the status is
displayed.

1 Signal format

For the contents displayed, see "Available signals" on page 29 and "On the signal format" below.
On the signal format
The following messages appear depending on the type of input signals and their conditions.
When a HDMI signal protected with HDCP is input
When no video signal comes in
When a noncompliant video signal comes in
2 Signal format of HDMI and COMPO./RGB input
3 Setting of "MUTING"
• Only appears when in mute mode. (

Menu Configuration

The operation procedure

1
Press the MENU button to display the Main Menu
To display the Main Menu
Press the MENU button.
To display the Set-Up Menu
Press the button while holding the
2
Use the buttons to select an item and press the
proceed to the next screen
3
Use the buttons to select an item and press the
proceed to the next screen
For some items, pressing the
4
Use the buttons to select an item and use the
to adjust the setting
5
Press the MENU button to finish operations
Press the MENU button repeatedly until the menu screen disappears.
12
r on page 10) currently lit, the status of the input signal and setting of MUTING are displayed for about
"*" (at the end of the indication)
"No Sync"
"Out of range"
4 on page 10).
button.
button to
button to
buttons adjusts the setting.
buttons
page 19).
Main Menu
Selected item
Operation guide
The menu screen disappears automatically if no operations are
made for about 30 seconds.
Inoperable menus will be grayed out.
Some items will not be displayed on the menu depending on the
selected input and signal format.
Set-Up Menu
Ex.: When "Picture Function"
in the Main Menu is selected
