d) Connecting the Flight Batteries

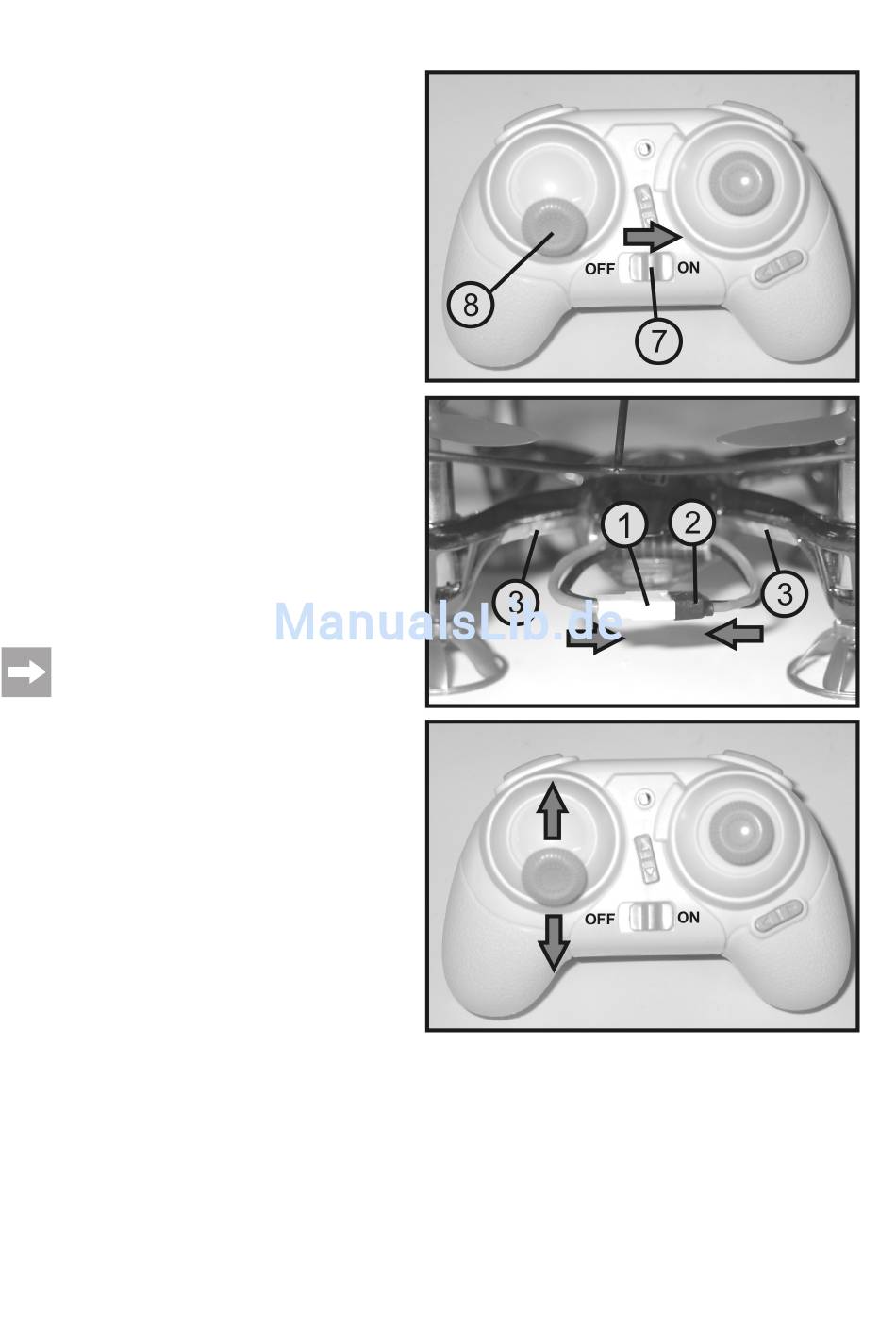

Move the control stick for the pitch and yaw functions
(also see figure 1, item 8) to the bottom position and
switch on the transmitter with the on/off switch (also
see figure 1, item 7).
Put the quadrocopter onto a straight surface (table top,
etc.).
Then connect the plug of the quadrocopter connection
cable (1) that is protected against polarity reversal to
the plug connector of the flight battery (2).
At once after connection of the battery, the two LEDs
pointing down at the two rear motor arms (3) light up
red and the LEDs of the two front motor arms pointing
down flash blue. The transmitter will emit two brief sig-
nals when connecting the flight battery.
Move the control lever for the pitch and yaw functions to
the front position and then back to the bottom position
again at once. The remote control transmitter emits a
long signal and the LEDs at the front boom arms poin-
ting down are now lit blue permanently.
It is important that the model is not moved during ac-
tivation.
If the blue LEDs of the two front motor arms
are not continually lit blue after activation but
continue to flush, activation has failed and
must be repeated completely.
Figure 7
