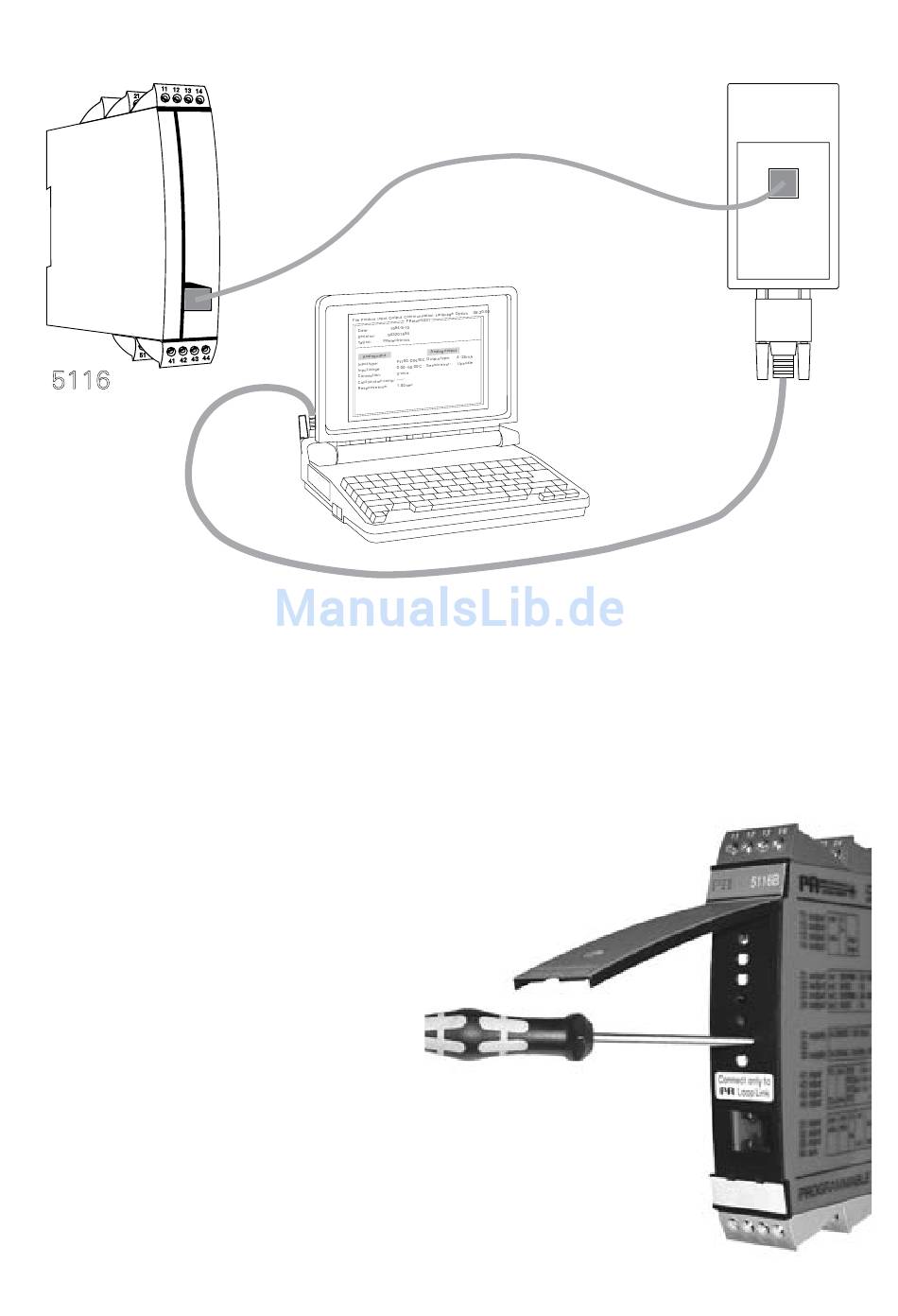

5116 CONNECTION TO lOOP lINK

Loop Link
Commu-
nication
5116
For connection of 5116B to Loop Link, please observe the instructions for
instrinsically safe installation.
ACTIvATION OF ThE
PROCESS CAlIBRATION BUTTON
Open the front cover and activate the
switch with a pointed object, e.g. a
small screwdriver.
The switch is placed a little to the
right of the LEDs.
For further instructions see the
description of the process calibration
function on page 43.
41
