INSTALLATION / CONNECTION

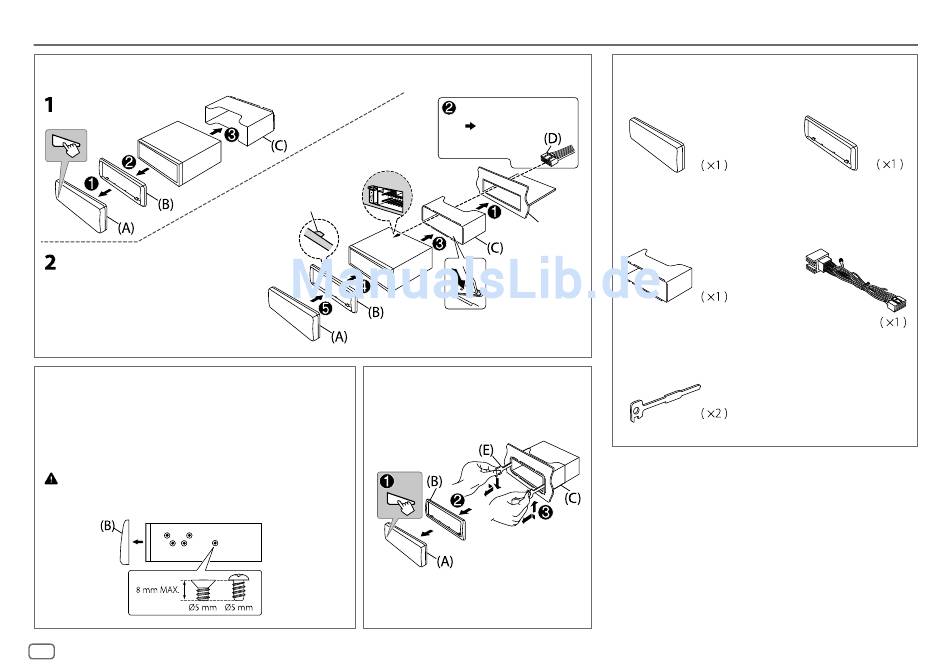

Installing the unit (in-dash mounting)

Orientate the trim
plate as illustrated
before fitting.
When installing without the mounting sleeve
1 Remove the mounting sleeve and trim plate
from the unit.
2 Align the holes in the unit (on both sides) with
the vehicle mounting bracket and secure the
unit with screws (commercially available).
Use only the specified screws. Using wrong screws might
damage the unit.
20
Hook on the top side
Bend the appropriate tabs to hold
the sleeve firmly in place.
How to remove the unit
Part list for installation
(A) Faceplate
Do the required wiring.
( 21)
(C) Mounting sleeve
Dashboard of
your car
(E) Extraction key
(B) Trim plate
(D) Wiring harness
