INSTALLATION/CONNECTION

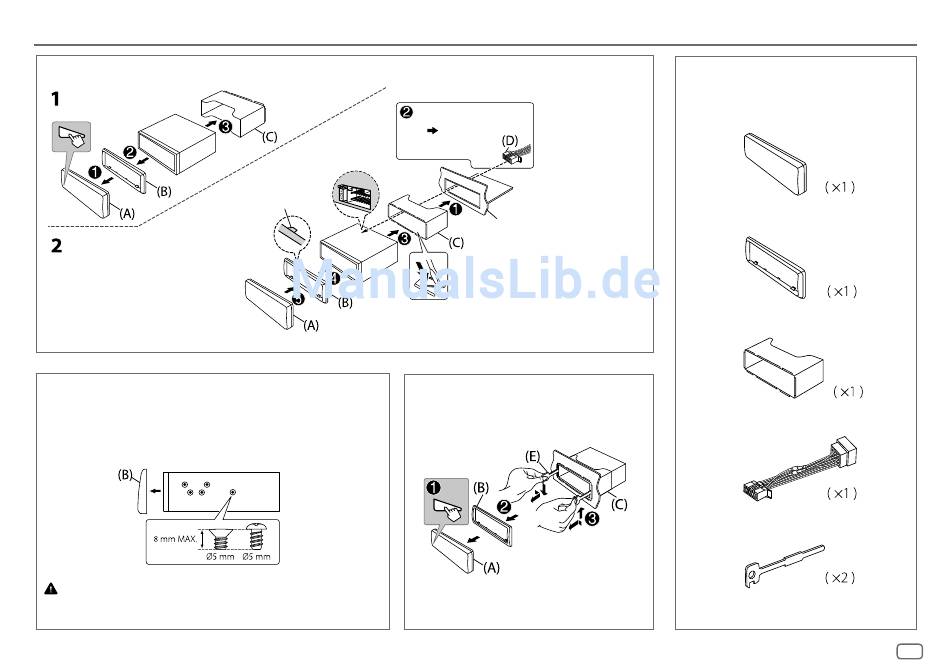

Installing the unit (in-dash mounting)

Hook on the top side
Orientate the trim plate as
illustrated before fitting.
When installing without the mounting sleeve
1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle
mounting bracket and secure the unit with screws (commercially
available).
Use only the specified screws. Using wrong screws might damage the
unit.
Do the required wiring.
( 16)
Dashboard of
your car
Bend the appropriate tabs to
hold the sleeve firmly in place.
How to remove the unit
Part list for installation
(A) Faceplate
(B) Trim plate
(C) Mounting sleeve
(D) Wiring harness
(E) Extraction key
ENGLISH
15
