INSTALLATION/CONNECTION

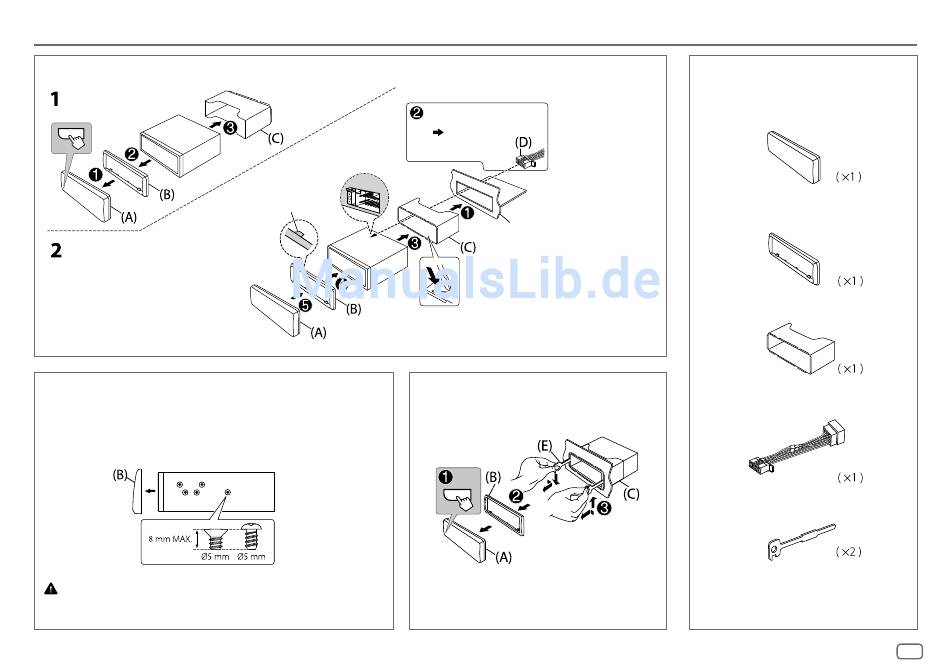

Installing the unit (in-dash mounting)

Orientate the trim plate
as illustrated before
fitting.
When installing without the mounting sleeve
1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the
vehicle mounting bracket and secure the unit with screws
(commercially available).
Use only the specified screws. Using wrong screws might damage
the unit.
Hook on the top side
Bend the appropriate tabs to
hold the sleeve firmly in place.
Do the required wiring.
( 30)
Dashboard of
your car
How to remove the unit
Part list for installation
(A) Faceplate
(B) Trim plate
(C) Mounting sleeve
(D) Wiring harness
(E) Extraction key
